539104755-1R - Husqvarna 3 Bushel Grass & Leaf Catcher (1999-10) 3 Bushel Grass Catcher Parts Diagram

3 Bushel Grass & Leaf Catcher

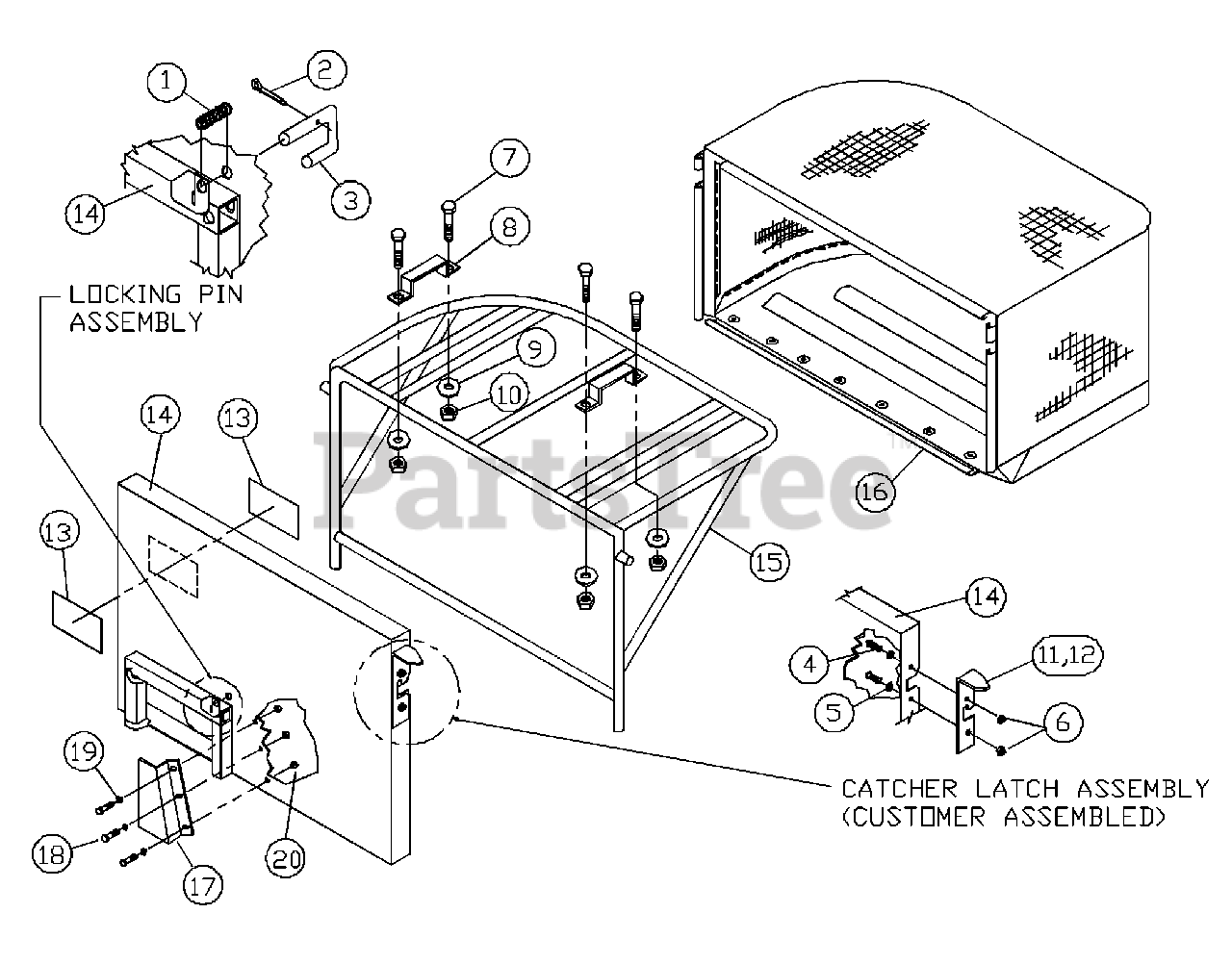

3 Bushel Grass Catcher Parts Diagram

  • Title

1

Husqvarna 539977856

Compression Spring

$1.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539100306

Locking Pin

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539990555

3/32 x 1/2 Cotter Pin

$1.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539976952

10-24 x 5/8 Panhead Screw
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

5

Husqvarna 539976983

1/4 Dia. Spring Washer

$0.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976977

10-24 Nyloc Nut

$

$

Not available

7

Husqvarna 539990548

1/4-20 x 1 HH Capscrew

$3.99

$

In Stock, only 1 left!

0

8

Husqvarna 539976585

Hopper Handle

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990598

1/4 Flat Washer

$

$

Not available

10

Husqvarna 539976978

1/4-20 Nyloc Nut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539976581

Catcher Latch, Right

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976582

Catcher Latch, Left

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976583

Warning Decal

$

$

Not available

14

Husqvarna 539100309

Backplate

$236.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539100334

Hopper Frame

$160.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539104545

Fabric Bag

$

$

Not available

17

Husqvarna 539102193

Adapter Shield

$18.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976934

5/16C X 3/4 HCS
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990184

Washer Flat 5/16

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990692

5/16C Nut
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
