537183325 - Husqvarna Saw Head Attachment SAW HEAD Parts Diagram

Saw Head Attachment

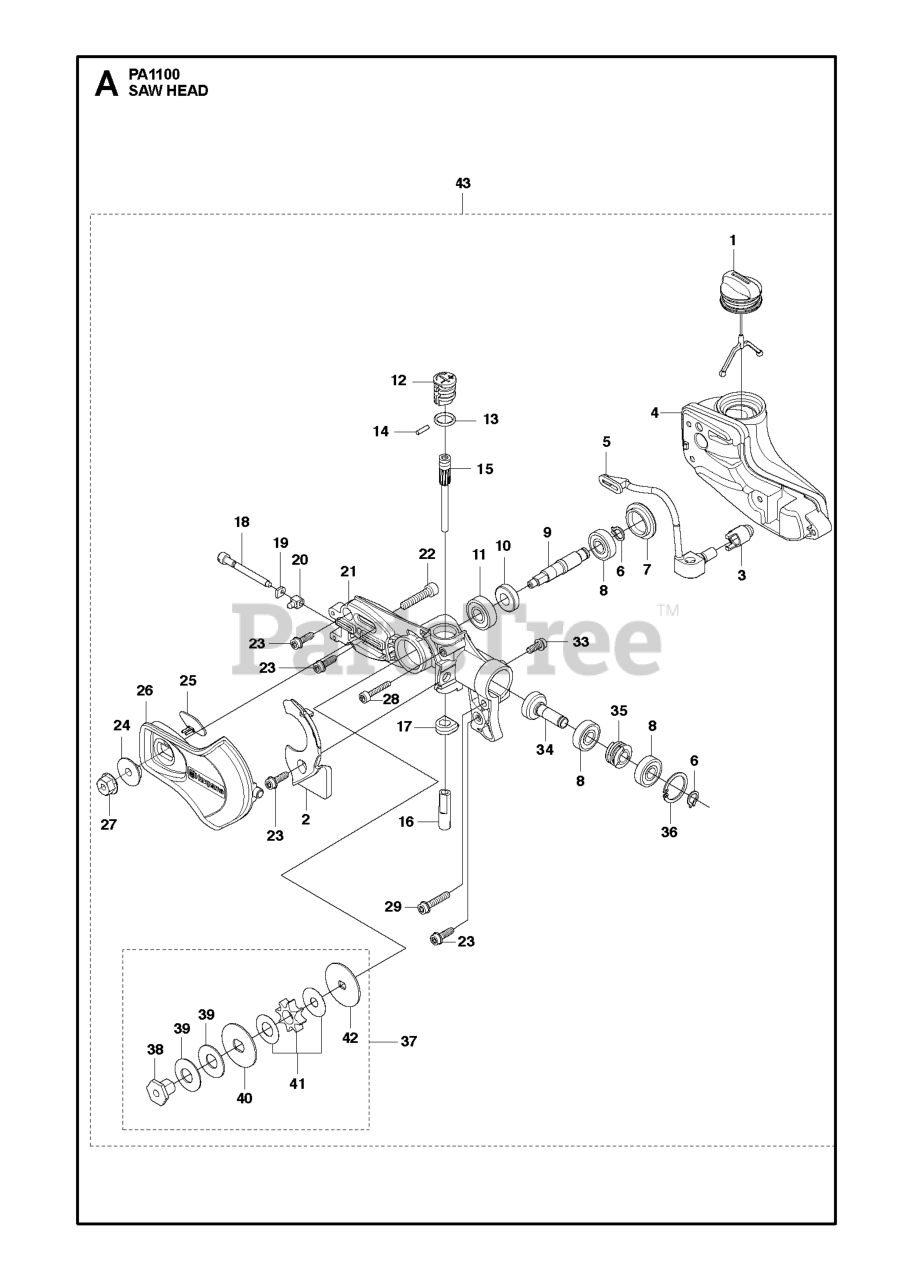

SAW HEAD Parts Diagram

  • Title

20

Husqvarna 501454101

PAWL

$6.99

$

In Stock, Qty 11

0

8

Husqvarna 738219904

BALL BEARING

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576395901

FASTENER

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510044301

OIL SCREEN

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 575784309

POLE SAW HEAD

Note: "for 1/4"" Chain"

$227.99

$

Usually ships in 3-10 days

0

40

Husqvarna 576740002

WASHER

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 525755104

SCREW

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 576740001

WASHER
(Superseded to 585841901)

$9.49

$

In Stock, only 2 left!

0

2

Husqvarna 525613101

COVER

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 577878603

TANK CAP ASSY

$13.99

$

In Stock, Qty 5

0

36

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

34

Husqvarna 575355501

PINION

$34.99

$

In Stock, only 1 left!

0

23

Husqvarna 573925801

SCREW

$6.49

$

In Stock, only 3 left!

0

19

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 6

0

11

Husqvarna 738210004

BALL BEARING

$28.99

$

In Stock, only 1 left!

0

9

Husqvarna 525490401

SHAFT

$43.99

$

Usually ships in 3-10 days

0

21

Husqvarna 523853702

GEAR HOUSING

$40.99

$

In Stock, only 2 left!

0

7

Husqvarna 574829801

COVER

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 581126101

DISC SPRING

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 525481601

KNOB

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537154801

PUMP CYLINDER

$11.99

$

In Stock, Qty 7

0

33

Husqvarna 525755105

SCREW
(Superseded to 575532001)

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 525490701

BUSHING

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 580760401

NUT

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 525760905

SCREW ITXSCM

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 577667001

OIL TANK

$37.99

$

In Stock, only 3 left!

0

37

Husqvarna 585483102

SPROCKET KIT 3/8"

Note: "for 3/8"" chain" (US only)

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540057901

PISTON PUMP

$17.99

$

In Stock, Qty 20+

0

26

Husqvarna 525481401

COVER

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 525490601

OIL HOSE

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 576831001

SCREW IHSCM

$7.49

$

In Stock, only 4 left!

0

25

Husqvarna 574404701

RUBBER

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 585483101

SPROCKET KIT 1/4"

Note: "for 1/4"" Chain"

$28.99

$

Usually ships in 3-10 days

0

41

Husqvarna 582872202

SPROCKET KIT 3/8"

Note: "for 3/8"" chain" (US only)

$13.99

$

Usually ships in 3-10 days

0

43

Husqvarna 575784310

POLE SAW HEAD TORQUE LIMITER

Note: "for 3/8"" chain" (US only)

$159.99

$

Usually ships in 3-10 days

0

6

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 525489701

WORM GEAR

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 575355601

GEAR WHEEL

$20.99

$

Usually ships in 3-10 days

0

41

Husqvarna 582872201

SPROCKET KIT 1/4"

Note: "for 1/4"" Chain"

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 740431014

O-RING

$3.49

$

In Stock, only 1 left!

0

27

Husqvarna 503220007

HEXAGON NUT FLANGED

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503240911

NEEDLE ROLLER

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 501819201

SCREW

$10.99

$

In Stock, Qty 9

0
