5369 - Simplicity 20" Log and Brush Saw 20" Log and Brush Saw (3697I12) Parts Diagram

20" Log and Brush Saw

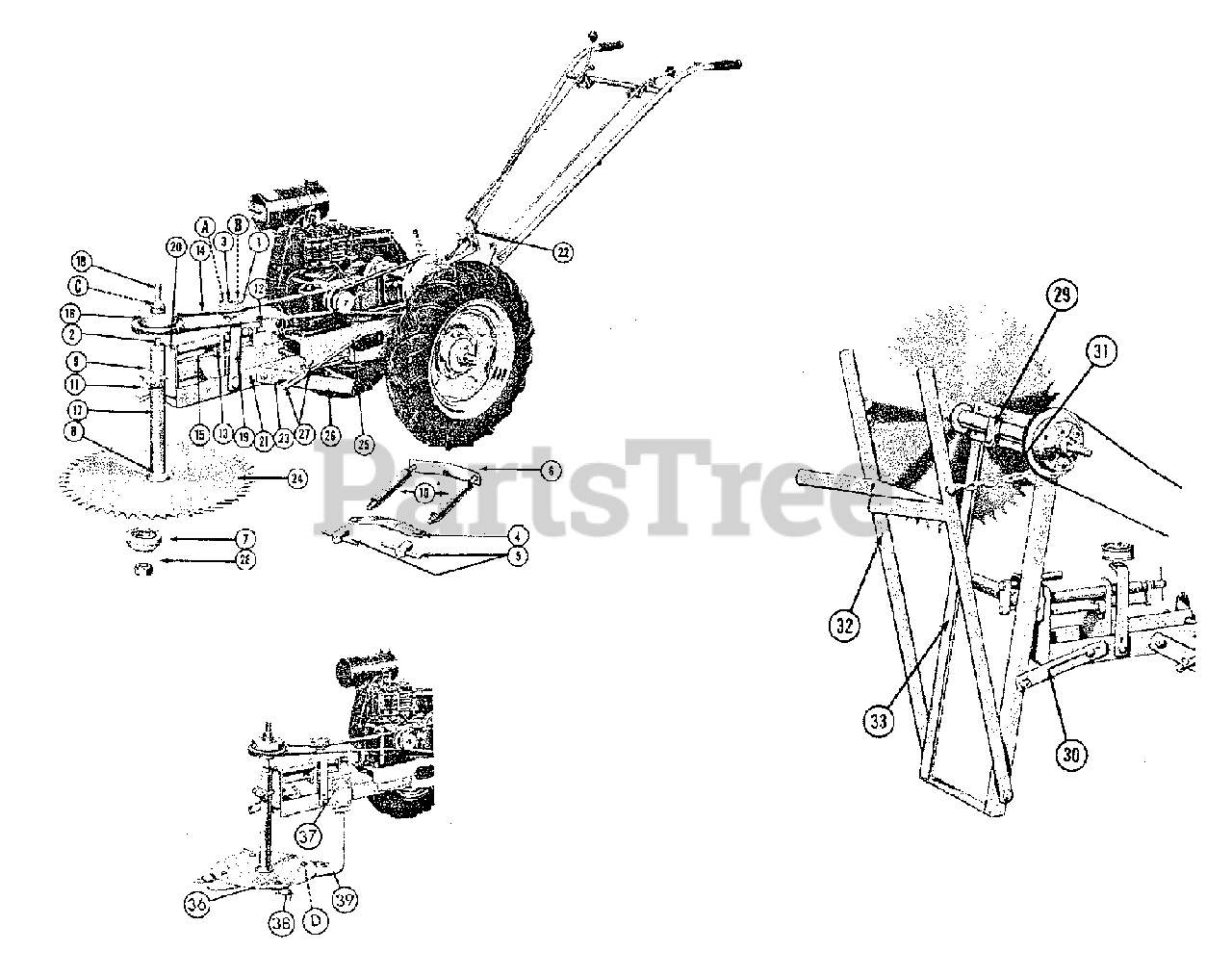

20" Log and Brush Saw (3697I12) Parts Diagram

  • Title

1

Simplicity 8261003

PULLEY, Idler

$

$

Not available

2

Simplicity 1729254SM

COLLAR, Set (Arbor Shaft)
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

3

Simplicity 8191033

PULLEY, Idler, Thrust Washer

$

$

Not available

4

Simplicity 8161029

SIDE PLATE, Hitch

$

$

Not available

5

Simplicity 8161041

T-NUT

$0.99

$

Usually ships in 2-12 days

0

6

Simplicity 8162501

CLAMP ASSEMBLY, Hitch

$

$

Not available

7

Simplicity 8301012

FLANGE, Lower

$

$

Not available

8

Simplicity 8301013

FLANGE, Upper

$

$

Not available

9

Simplicity 8301005

CLAMP

$

$

Not available

10

Simplicity 8301037

SPACER

$

$

Not available

11

Simplicity 8301039

PROP, Arbor

$

$

Not available

12

Simplicity 8301040

SCREW, Tightener

$

$

Not available

13

Simplicity 8301004

COLLAR, Set (Tightener Assembly)

$

$

Not available

14

Simplicity 8301054

BELT

$

$

Not available

15

Simplicity 8301502

TIGHTENER ASSEMBLY

$

$

Not available

16

CLUTCH ASSEMBLY

$

$

Not available

17

Simplicity 8302002

BEARING, Housing w/ Bushings

$

$

Not available

18

Simplicity 8302014

ARBOR

$

$

Not available

19

Simplicity 110001

BRACKET, Idler

$

$

Not available

20

Simplicity 8302508

HOLDER ASSEMBLY, Arbor

$

$

Not available

21

Simplicity 8302503

FRAME ASSEMBLY

$

$

Not available

22

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 8161518

PIN ASSEMBLY, Rod Socket

$

$

Not available

24

Simplicity 8301029

SAW BLADE, 20" Cordwood (1-3/8" Bore)

$

$

Not available

25

Simplicity 8302001

ROD, Stand

$

$

Not available

26

Simplicity 8303001

STAND

$

$

Not available

27

Simplicity 1729276SM

COLLAR, Set (Stand Rod)

$

$

Not available

28

NUT, Hex, Full, L.H.

$

$

Not available

29

Simplicity 8301005

CLAMP

$

$

Not available

30

Simplicity 8301019

HOLDER, Cradle

$

$

Not available

31

Simplicity 8301027

CHAIN, Cradle, 12"

$

$

Not available

32

Simplicity 8303503

CRADLE ASSEMBLY

$

$

Not available

33

Simplicity 8303504

FRAME ASSEMBLY, Cradle

$

$

Not available

36

Simplicity 8301059

HEAD, Knife

$

$

Not available

37

Simplicity 8301063

CLAMP PLATE, Gauge

$

$

Not available

38

Simplicity 8301064

KNIFE

$

$

Not available

39

Simplicity 8303505

SHOE ASSEMBLY, Gauge

$

$

Not available

A

Simplicity 8141020

INNER BEARING RACE

$

$

Not available

B

Simplicity 8191048

BEARING, Idler Pulley

$

$

Not available

C

Simplicity 8301055

KEY, Pulley

$

$

Not available

D

Simplicity 8301065

BUSHING

$

$

Not available
