536296202 (536296203) - Husqvarna Engine CYLINDER HEAD ASSY Parts Diagram

Engine

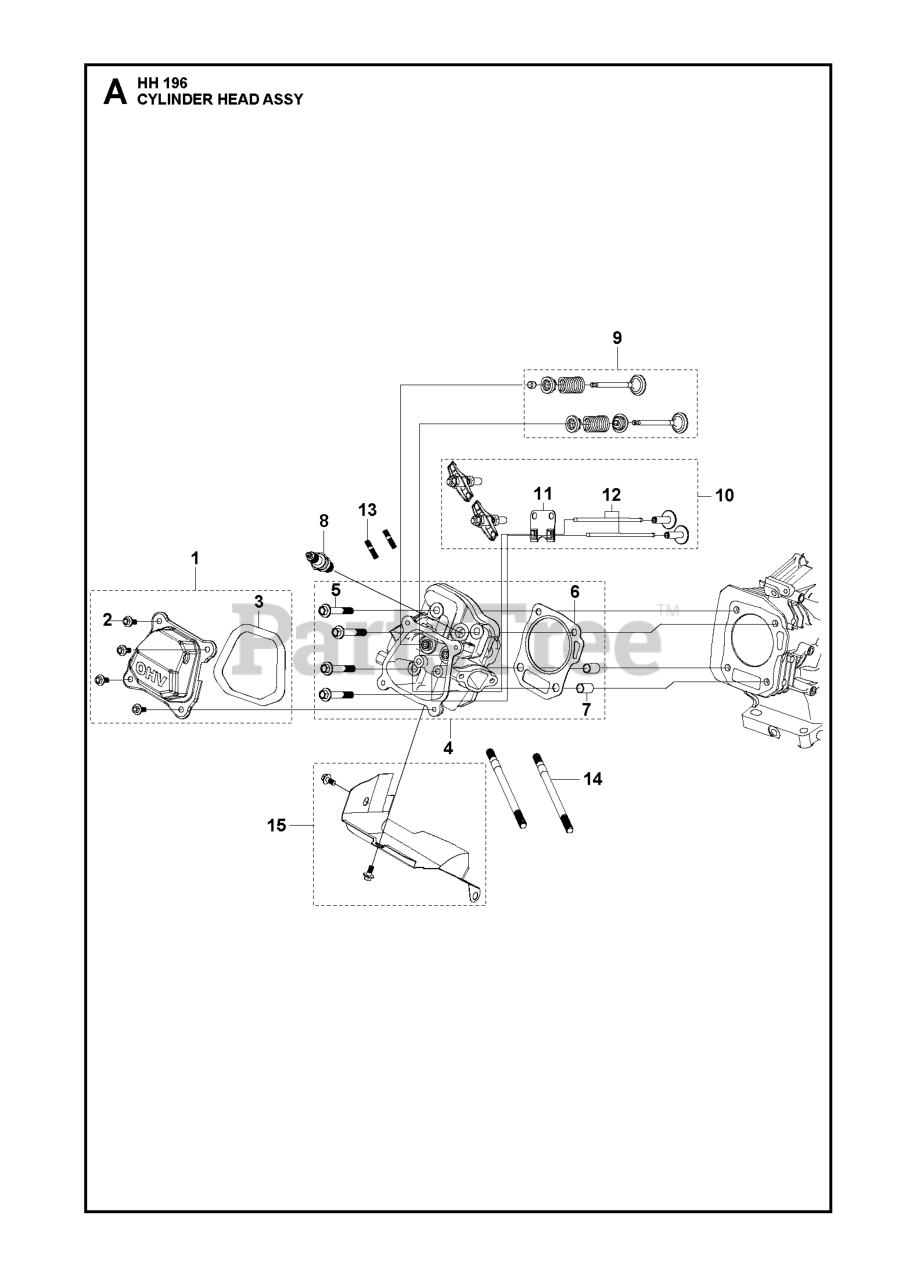

CYLINDER HEAD ASSY Parts Diagram

  • Title

5

Husqvarna 587999601

NEEDS DESCRIPTION

Note: T040: M8 L=60

$

$

Currently unavailable

14

Husqvarna 531147339

NEEDS DESCRIPTION

Note: M6 L=90 - MULTIPACK: 2

$

$

Currently unavailable

9

Husqvarna 531147344

NEEDS DESCRIPTION

Note: FOR ENGINE: 536296201, 536296202

$

$

Currently unavailable

12

Husqvarna 588004301

NEEDS DESCRIPTION

Note: PUSH ROD SET

$

$

Currently unavailable

15

Husqvarna 599348611

NEEDS DESCRIPTION

Note: AIR DEFLECTOR KIT

$

$

Currently unavailable

1

Husqvarna 531147321

NEEDS DESCRIPTION

Note: CYLINDER HEAD COVER KIT

$

$

Currently unavailable

7

Husqvarna 588000701

NEEDS DESCRIPTION

Note: LOCATION PIN

$

$

Currently unavailable

10

Husqvarna 599349464

NEEDS DESCRIPTION

Note: ROCKER ARM KIT

$

$

Currently unavailable

9

Husqvarna 531147343

NEEDS DESCRIPTION

Note: FOR ENGINE: 536296203

$

$

Currently unavailable

4

Husqvarna 531147322

NEEDS DESCRIPTION

Note: FOR ENGINE: 536296203

$

$

Currently unavailable

8

Husqvarna 590844201

SPARK PLUG HQT-7 RESISTOR

Note: HQT-7

$

$

Not available

4

Husqvarna 531147323

NEEDS DESCRIPTION

Note: FOR ENGINE: 536296201, 536296202

$

$

Currently unavailable

13

Husqvarna 587999801

NEEDS DESCRIPTION

Note: M8 L=35 - MULTIPACK: 2

$

$

Currently unavailable

11

Husqvarna 588004401

NEEDS DESCRIPTION

Note: PUSH ROD GUIDE PLATE

$

$

Currently unavailable

3

Husqvarna 589855501

NEEDS DESCRIPTION

Note: CYLINDER HEAD COVER GASKET

$

$

Currently unavailable

6

Husqvarna 588000601

NEEDS DESCRIPTION

Note: CYLINDER HEAD GASKET

$

$

Currently unavailable

2

Husqvarna 599349093

BOLT GB/T 5789: M6 L=12

Note: GB/T 5789: M6 L=12

$2.49

$

Usually ships in 3-10 days
