536113 - Gravely 40" Deck Retrofit Kit Mower Deck Retrofit Kit 40" Parts Diagram

40" Deck Retrofit Kit

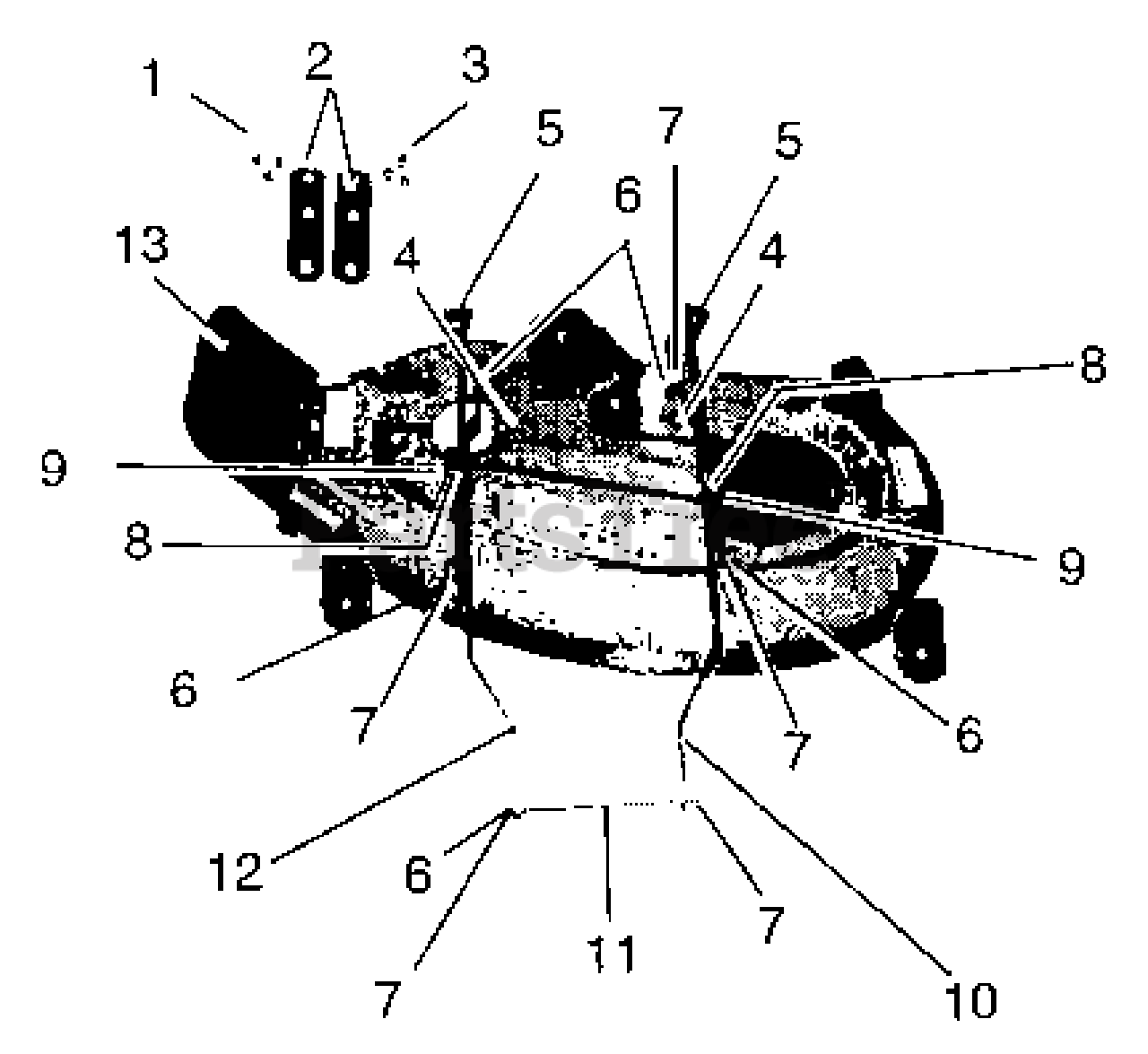

Mower Deck Retrofit Kit 40" Parts Diagram

  • Title

1

Gravely 05959400

Hex Bolt, 3/8-16 x 3/4
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03588751

Hanger Braket

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 06542000

Top Locking Flange nut, 3/8-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01563300

Adjuster Link

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 06711900

External Hair Pin

$2.99

$

In Stock, only 2 left!

0

6

Gravely 06944800

Spring Clip

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06441900

Flat Steel Washer, 17/32 1-1/16 x 61/64
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06442800

Flat Steel Washer, 21/32 1-5/16 x 61/64
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06535300

Locking Center Nut, 5/8-11

$2.99

$

Usually ships in 4-12 days

0

10

NA

Left Lift Assembly

$

$

Not available

11

Gravely 01535900

Pin

$39.99

$

Usually ships in 4-12 days

0

12

NA

Right Lift Assembly

$

$

Not available

13

NA

40" Deck Assembly (536113)

Note: (536113)

$

$

Not available

Gravely 53611300

Lawn Tractor 40" Mower Deck Retrofit Kit

$

$

Not available
