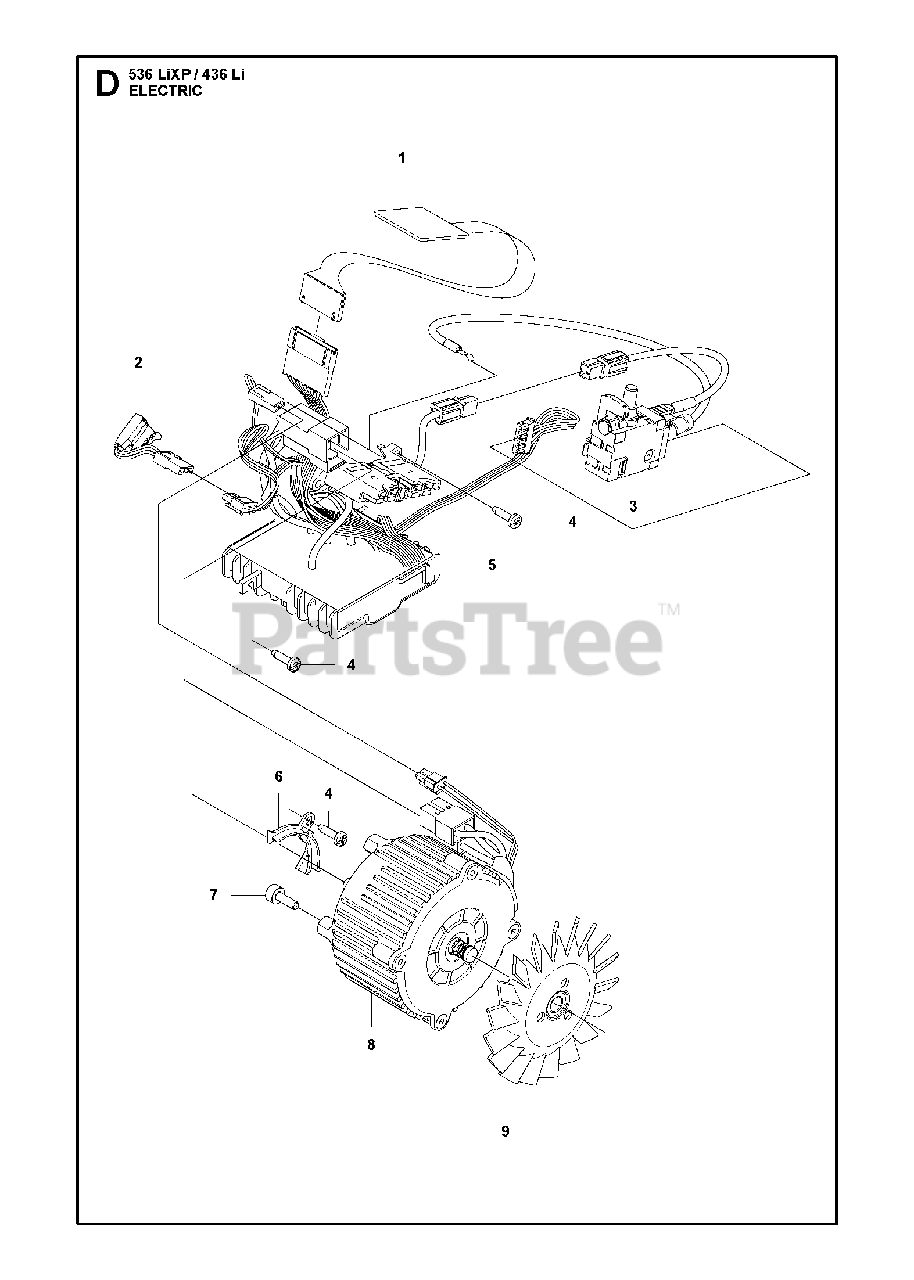

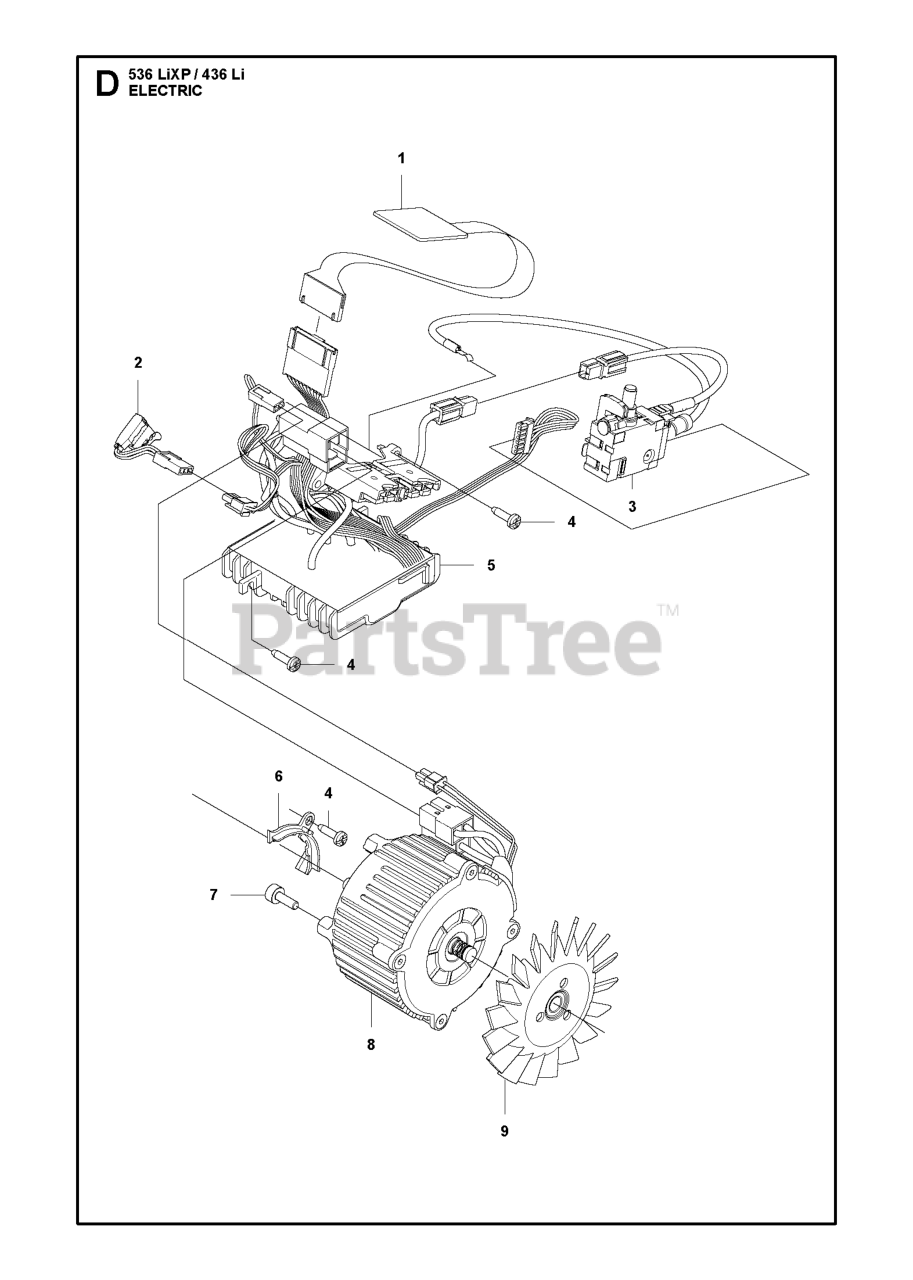

536 LiXP - Husqvarna Chainsaw (2012-08) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 579738201

KEY PAD 2 BUTTON TRIMMER DC (T
(Superseded to 584953102)

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577827701

WIRING ASSY

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 578142901

WIRING ASSY

$62.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 578266801

CONTROL UNIT
(Superseded to 588211801)

$250.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577585201

COVER

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503202512

SCREW

$5.99

$

In Stock, Qty 11

0

8

Husqvarna 577315801

MOTOR ASSY W/ FAN

Note: Complete with fan

$

$

Not available

9

Husqvarna 581300901

FAN

$7.99

$

Usually ships in 3-10 days

0
