536 LiPT5 - Husqvarna Pole Saw SHAFT Parts Diagram

Pole Saw

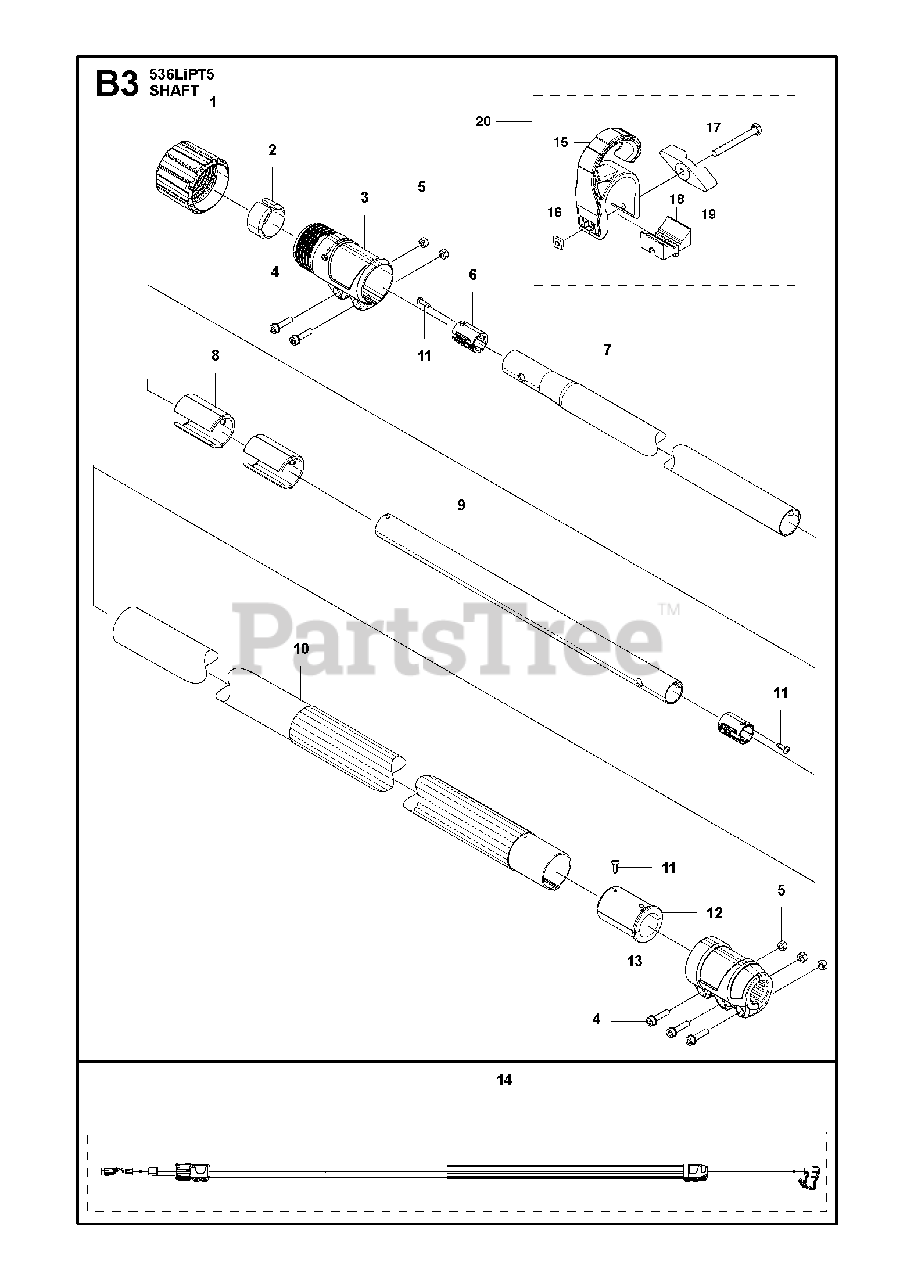

SHAFT Parts Diagram

  • Title

1

Husqvarna 510096101

NUT

$10.99

$

In Stock, Qty 5

0

2

Husqvarna 522742601

RING

$4.49

$

In Stock, only 1 left!

0

3

Husqvarna 510096001

CLAMPING SLEEVE
(Superseded to 597194301)

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 2 left!

0

5

Husqvarna 503200776

SCREW

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 586873001

SPACER CABLELOCK

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587004701

Upper Tube

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587004801

Guide Bushing

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587207301

Lower Tube

$56.99

$

In Stock, only 1 left!

0

10

Husqvarna 586914201

TUBE ASSY LOWER

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530016064

SCREW
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 587730601

SLEEVE

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 522597001

CLAMPING SLEEVE

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 586914301

TUBE ASSY TELESCOPIC

$

$

Not available

15

Husqvarna 522723101

LOOP

Note: . 20

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 502197101

NUT

Note: . 20

$8.99

$

In Stock, only 1 left!

0

17

Husqvarna 725238151

SCREW M6X55

Note: . 20

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 522723101

LOOP

Note: . 20

$13.99

$

In Stock, only 2 left!

0

19

Husqvarna 502203801

HANDLE

Note: . 20

$7.99

$

In Stock, only 1 left!

0

20

Husqvarna 579264001

LOOP

$20.99

$

In Stock, only 3 left!

0
