536.889252 - Craftsman 33" Snow Thrower (2004) (Sears) Gear Case Parts Diagram

33" Snow Thrower

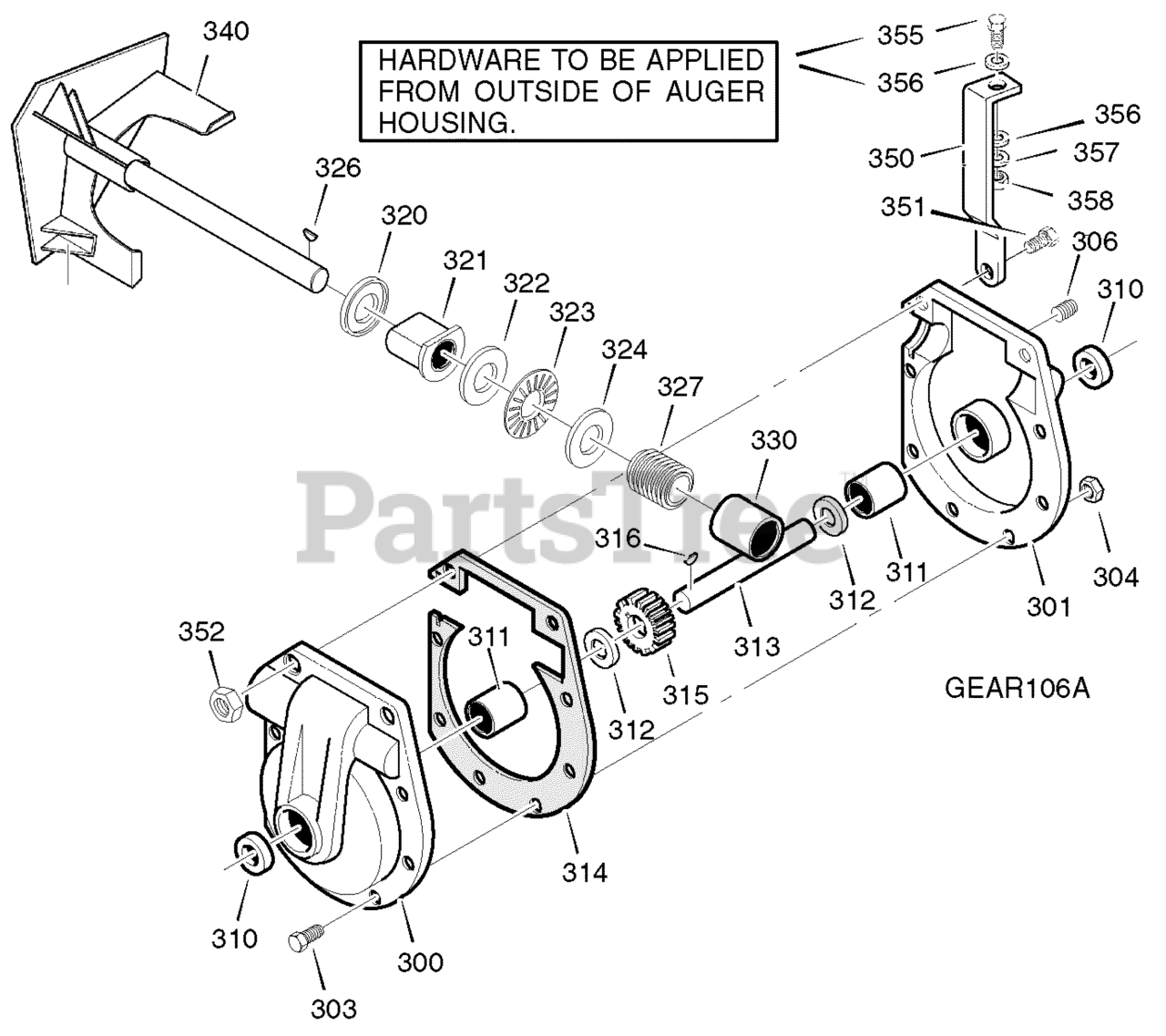

Gear Case Parts Diagram

  • Title
300

Murray 896

CASE, GEAR, RH
(Superseded to 896MA)

$32.99

$

In Stock, only 4 left!

0

301

Murray 895

CASE, GEAR, LH
(Superseded to 895MA)

$

$

Not available

303

Murray 910828

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

304

Murray 71100

NUT, 5/'16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

305

Murray 330434

SCREW, 5/16-24 x 1.50
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

306

Murray 53749

PLUG, PIPE 0.25-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

310

Murray 780151

SEAL, OIL
(Superseded to 780151MA)

$10.99

$

In Stock, Qty 6

0

311

Murray 53743

BEARING, SLEEVE
(Superseded to 53743MA)

$9.99

$

Usually ships in 2-12 days

0

312

Murray 53748

WASHER, FLAT
(Superseded to 53748MA)

$9.99

$

In Stock, only 2 left!

0

313

Murray 760411

SHAFT, AUGER OUTPUT

$93.99

$

Usually ships in 2-12 days

0

314

Murray 897

GASKET, GEAR BOX
(Superseded to 897MA)

$

$

Not available

315

Murray 53730

WORM GEAR
(Superseded to 1752500YP)

$79.99

$

In Stock, Qty 5

0

316

Murray 73905

KEY, WOODRUFF #91

$4.99

$

In Stock, Qty 9

0

320

Murray 53737

RING, QUAD 0.924 ID
(Superseded to 53737MA)

$4.99

$

In Stock, Qty 8

0

321

Murray 583126

BEARING, FLANGE
(Superseded to 583126MA)

$13.99

$

In Stock, Qty 6

0

322

Murray 48275

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

323

Murray 50684

BEARING, ROLLER
(Superseded to 50684MA)

$6.49

$

In Stock, only 1 left!

0

324

Murray 48275

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

326

Murray 50795

KEY
(Superseded to 50795MA)

$5.99

$

In Stock, only 1 left!

0

327

Murray 53732

GEAR, WORM
(Superseded to 53732MA)

$49.99

$

In Stock, only 1 left!

0

330

Murray 53731

BEARING, SLEEVE
(Superseded to 53731MA)

$5.49

$

In Stock, Qty 11

0

340

$

$

Not available

350

Murray 1442 YZ

BRACE, GEAR BOX

$9.49

$

Usually ships in 2-12 days

0

351

Murray 1441

SCREW, 5/16-24 x 1.75

$4.49

$

Usually ships in 2-12 days

0

352

Murray 71100

NUT, HEX 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

355

Murray 302636

SCREW, 5/16-18 x 1.25

$4.99

$

Usually ships in 2-12 days

0

356

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

357

Murray 71060

WASHER, SPTLK
(Superseded to 1501670MA)

$

$

Not available

358

Murray 15X144

NUT, REGHEX 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

*

Murray 333431

10oz TUBE LUBRIPLATE
(Superseded to 333431MA)

Note: (Not Illustrated)

$

$

Not available
