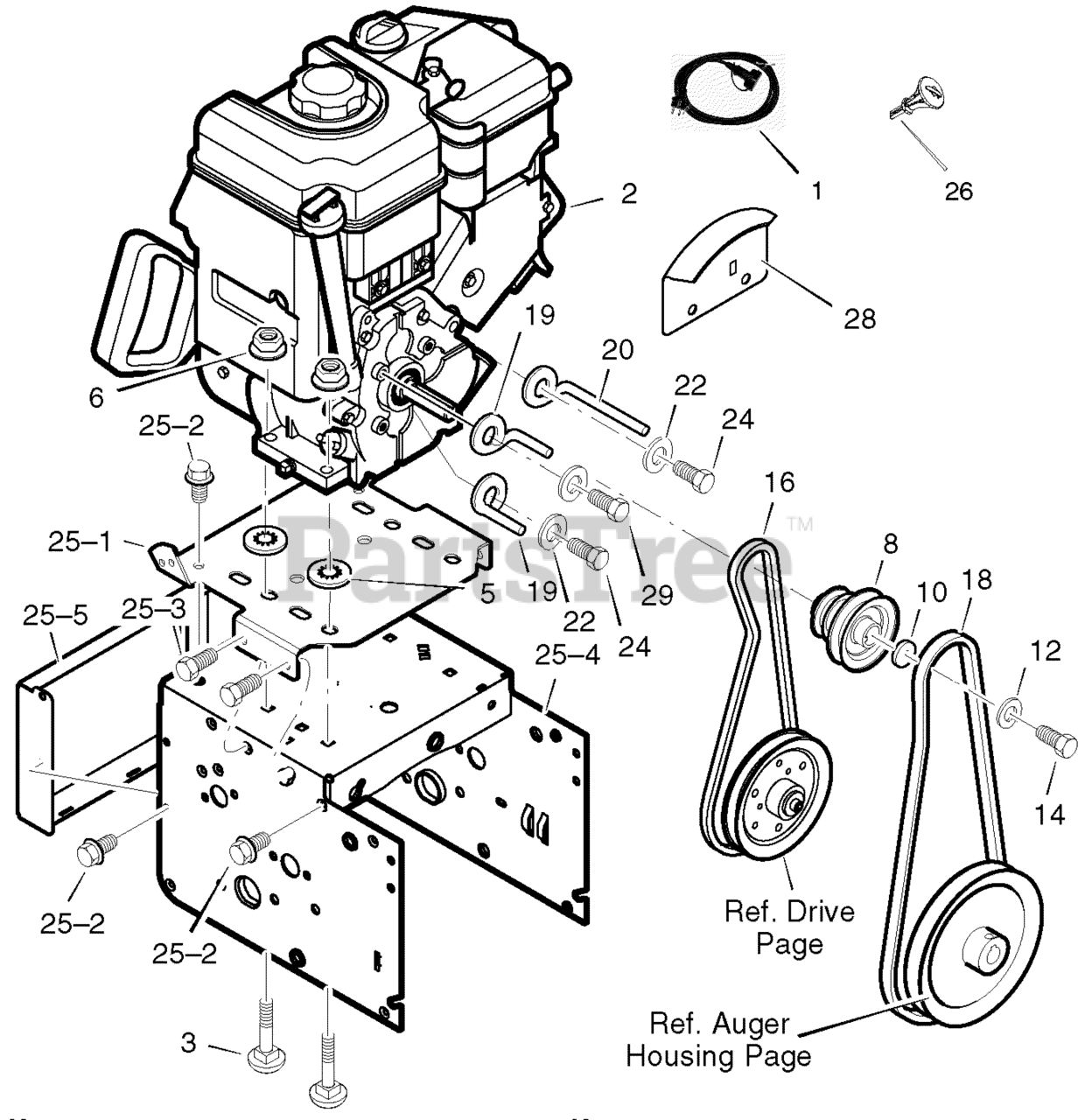

536.889252 - Craftsman 33" Snow Thrower (2004) (Sears) Engine Parts Diagram

33" Snow Thrower

Engine Parts Diagram

  • Title

1

Murray 6219

CORD, STARTER
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

2

ENGINE

$

$

Not available

--

Murray 1501214

KEY, ENGINE

$

$

Not available

3

Murray 002X97

BOLT, CARRIAGE
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

5

Murray 028X76

RETAINER, PUSH
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

6

Murray 710026

NUT, HEX 5/16-18

$

$

Not available

8

Murray 1501109

PULLEY, ENGINE
(Superseded to 1501109MA)

$41.99

$

In Stock, only 2 left!

0

10

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

12

Murray 71063

WASHER .38ID

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71015

SCREW

$

$

Not available

16

Murray 37X127

BELT, HYDRO DR

$23.99

$

Usually ships in 2-12 days

0

18

Murray 585416

BELT, V 4L
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 20+

0

19

Murray 1501368

GUIDE, BELT
(Superseded to 1501368MA)

$35.99

$

Usually ships in 2-12 days

0

20

Murray 1501201

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

24

Murray 710097

SCREW

$10.99

$

In Stock, only 1 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E201

PLATE, ENGINE

$61.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169

SCREW, TAP
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 5

0

25-3

Murray 25X020

SCREW, TAP
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1501295E201

FRAME, MOTORBOX

$

$

Currently unavailable

25-5

Murray 1501333E201

PANEL, BACK - HY

$29.99

$

Usually ships in 2-12 days

0

26

Murray 1501214

KEY, ENGINE

$

$

Not available

28

Murray 1501994

BRACKET, SHIELD

$12.99

$

Usually ships in 2-12 days

0

29

Murray 06X117

SCREW

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-041074L

OWNER'S MANUAL

$

$

Currently unavailable
