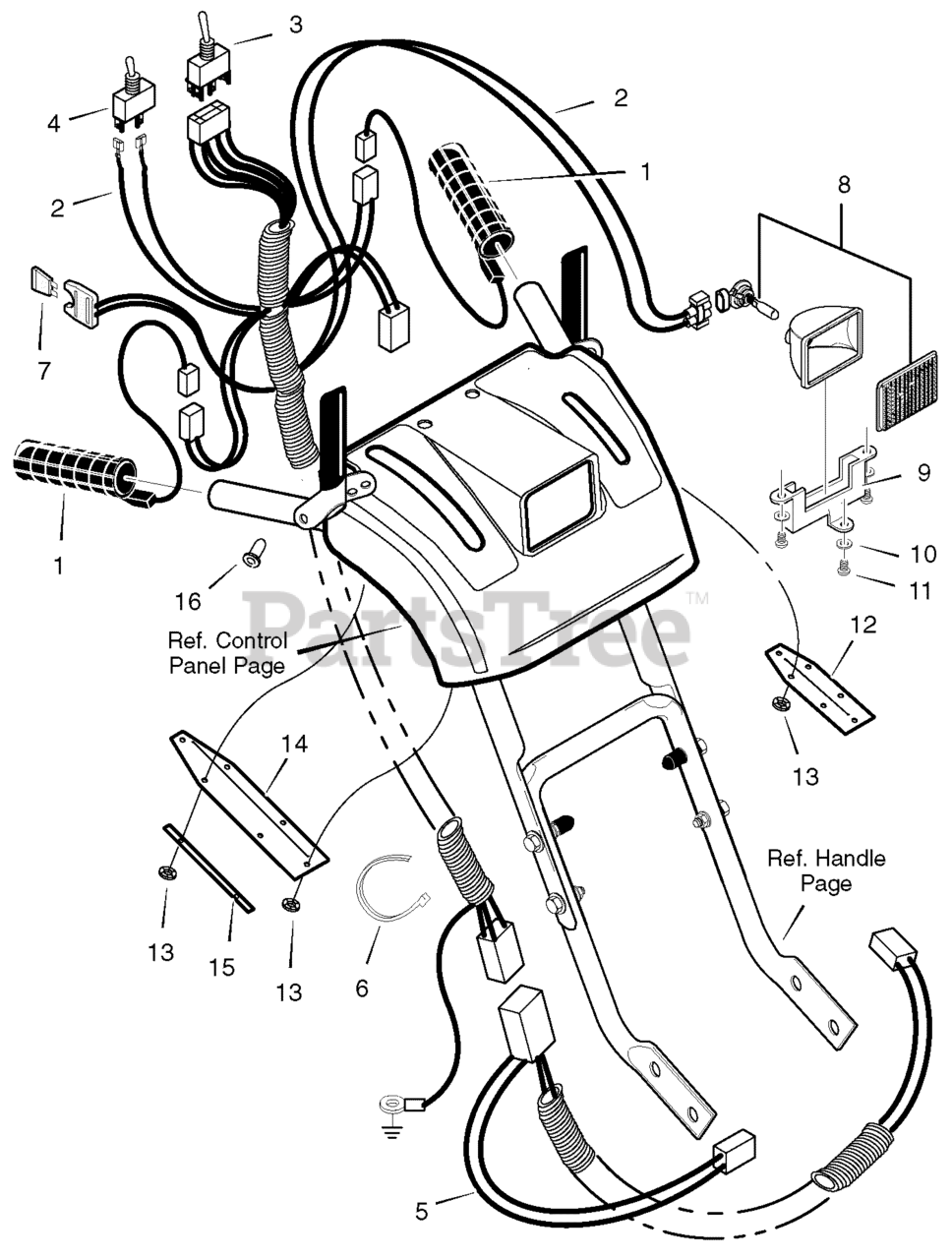

536.889252 - Craftsman 33" Snow Thrower (2004) (Sears) Electrical Wiring Parts Diagram

33" Snow Thrower

Electrical Wiring Parts Diagram

  • Title

1

Murray 1501352

GRIP, HEATED

$80.99

$

In Stock, only 1 left!

0

2

Murray 1501351

WIRE HARNESS, UPPER

$81.99

$

In Stock, only 1 left!

0

3

Murray 1501348

SWITCH, CHUTE ROTATION

$49.99

$

Usually ships in 2-12 days

0

4

Murray 1501349

SWITCH, HEATED GRIP

$16.99

$

Usually ships in 2-12 days

0

5

Murray 1501350

WIRE HARNESS, LOWER

$32.99

$

Usually ships in 2-12 days

0

6

Murray 71372

TIE, CABLE

$4.49

$

In Stock, only 1 left!

0

7

FUSE, 7.5 AMP AUTOMOTIVE

$

$

Not available

8

Murray 762343

HEADLIGHT ASSEMBLY

$69.99

$

Usually ships in 2-12 days

0

9

Murray 578921

BRACKET

$6.99

$

Usually ships in 2-12 days

0

10

Murray 901736

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

11

Murray 901696

SCREW #8 X .50

$

$

Not available

12

Murray 1501402

COVER

$

$

Not available

13

Murray 028X79

NUT, PUSH

$3.49

$

Usually ships in 2-12 days

0

14

Murray 1501401

COVER

$5.99

$

Usually ships in 2-12 days

0

15

Murray 1501330

FRAME

$11.99

$

Usually ships in 2-12 days

0

16

Murray 760987

RIVET, 0.125 x 0.23

$3.99

$

In Stock, only 1 left!

0
