536.889252 - Craftsman 33" Snow Thrower (2004) (Sears) Auger Housing Parts Diagram

33" Snow Thrower

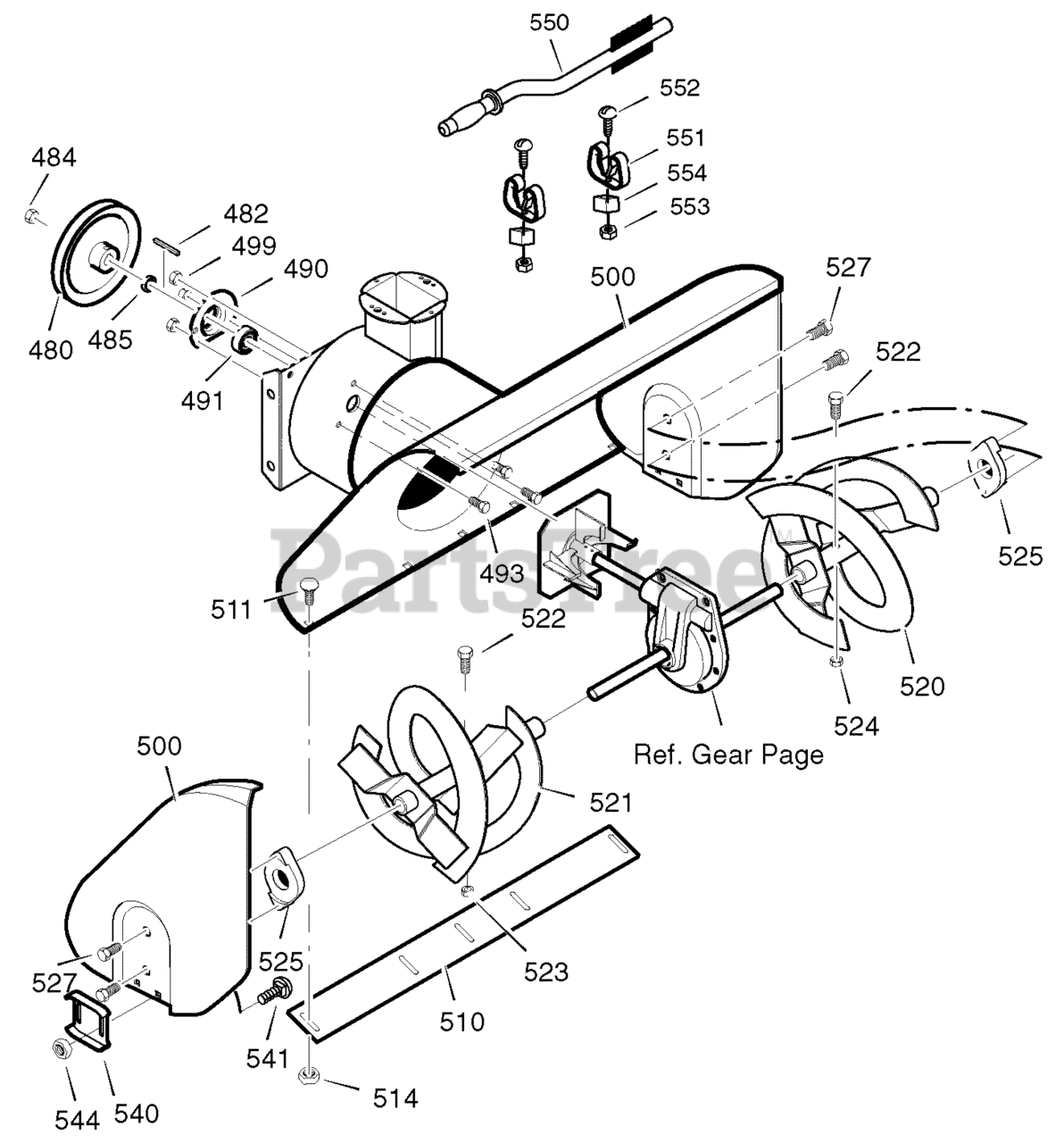

Auger Housing Parts Diagram

  • Title
480

Murray 583146

PULLEY
(Superseded to 583146MA)

$

$

Not available

482

Murray 2001022

KEY, SQUARE
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

484

Murray 15X112

NUT, 1/4-20
(Superseded to 15X112MA)

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92

BOLT, HEX - 0.31-18X0.50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501711E201

HOUSING, ASSY

$

$

Not available

510

Murray 760666E701

BLADE, SCRAPER

$63.99

$

In Stock, only 1 left!

0

511

Murray 340720

BOLT, 1/4-20X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

514

$

$

Not available

520

Murray 760317E701

AUGER, ASSY, LH

$182.99

$

Usually ships in 2-12 days

0

521

Murray 760307E701

AUGER, ASSY, RH

$

$

Not available

522

Murray 578647

SCREW, 5/16-18 x 2.00

$6.49

$

Usually ships in 2-12 days

0

524

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

525

Murray 53757

BEARING,FLANGE
(Superseded to 53757MA)

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

540

Murray 762367E701

SKID, HEIGHT ADJUST

$

$

Currently unavailable

541

Murray 340720

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available

550

Murray 1501576

BRUSH, CLEANOUT

$34.99

$

In Stock, only 4 left!

0

551

Murray 1501672

CLIP, RETAINER
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

552

Murray 06X115

SCREW
(Superseded to 06X115MA)

$3.99

$

Usually ships in 2-12 days

0

553

$4.49

$

In Stock, only 2 left!

0

554

Murray 578063

BLOCK
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

--

Murray 1501227

KIT, SHEAR BOLT

$15.99

$

In Stock, Qty 19

0
