536.888110 - Craftsman 30" Snow Thrower (2004) (Sears) Handle Assembly Parts Diagram

30" Snow Thrower

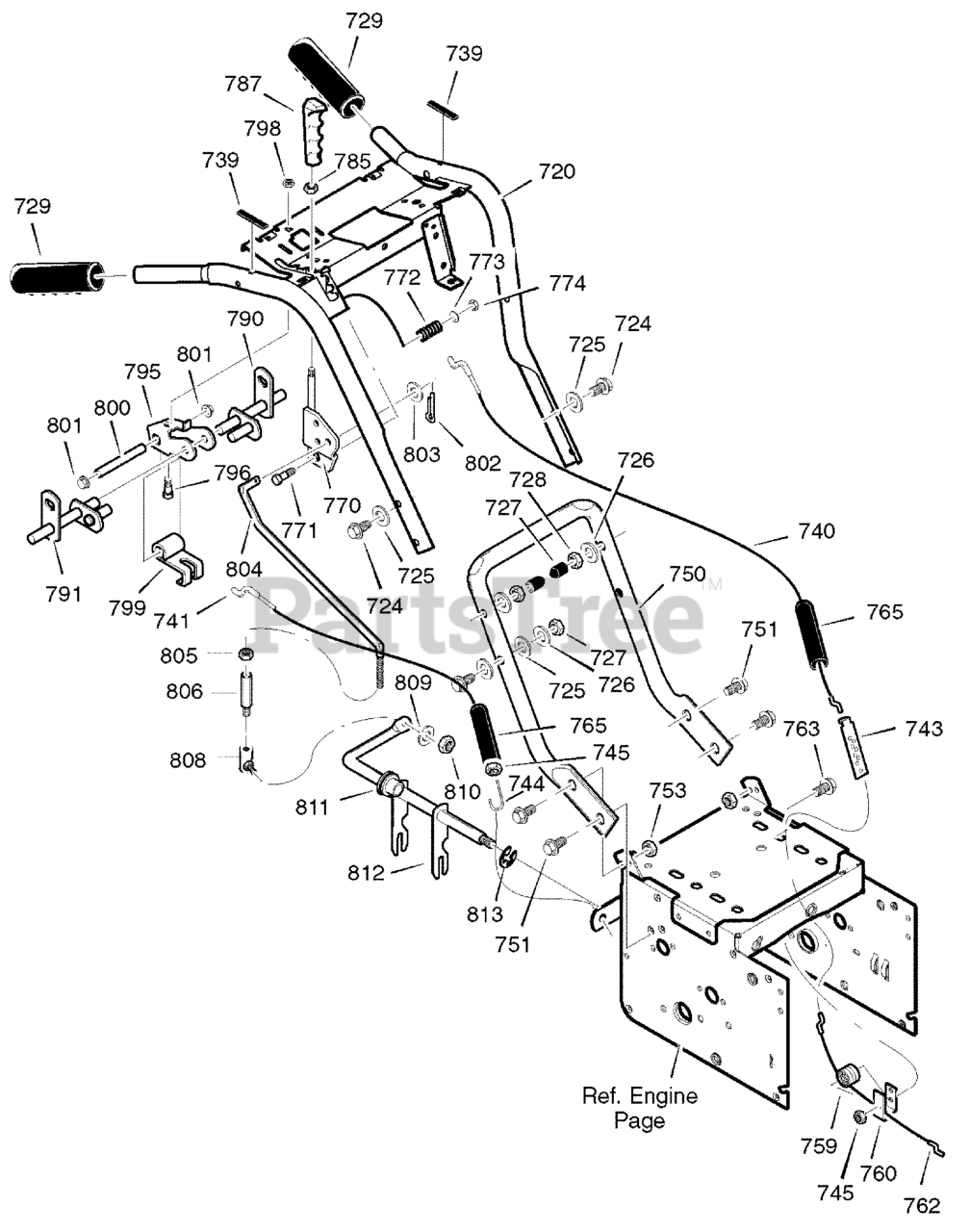

Handle Assembly Parts Diagram

  • Title

720

Murray 1501378E701

ASSY, HANDLE

$398.99

$

Usually ships in 2-12 days

0

724

Murray 7288

SCREW

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER, FLAT

$

$

Not available

726

Murray 71062

WASHER

$

$

Not available

727

Murray 71044

NUT

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399

GRIP, HANDLE
(Superseded to 337399MA)

$5.49

$

Usually ships in 2-12 days

0

739

Murray 4049

BUMPER
(Superseded to 4049MA)

$

$

Not available

740

Murray 1501452

CABLE, CLUTCH
(Superseded to 1501452MA)

$16.99

$

In Stock, only 1 left!

0

741

Murray 1501451

CABLE, CLUTCH
(Superseded to 1501451MA)

$20.99

$

In Stock, only 1 left!

0

743

Murray 313441

BRKT, CABLE ADJ
(Superseded to 313441MA)

$

$

Not available

744

Murray 1673

SPRING, CLUTCH
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 10

0

745

Murray 15X145

NUT, HEX

$4.49

$

In Stock, Qty 20+

0

750

Murray 1501449E701

HANDLE, LOWER

$110.99

$

Usually ships in 2-12 days

0

751

Murray 25X021

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

753

Murray 15X144MA

NUT, 5/16-18

$3.99

$

In Stock, only 1 left!

0

759

Murray 579860

SPOOL, CABLE
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 7

0

760

Murray 1501059 YZ

BRKT, SPOOL
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122

CABLE, DRIVE
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 5

0

763

Murray 1798

BOLT, HEX

$

$

Not available

765

Murray 308146

BOOT, CABLE
(Superseded to 308146MA)

$6.49

$

Usually ships in 2-12 days

0

770

Murray 1501570 YZ

BRACKET, SHIFT

$10.99

$

Usually ships in 2-12 days

0

771

Murray 4058

SCREW

$3.99

$

Usually ships in 2-12 days

0

772

Murray 50786

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

WASHER, FLAT

$

$

Not available

774

Murray 71046

NUT, HEX
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

785

Murray 71045

NUT, HEX

$

$

Not available

787

Murray 306689

KNOB, SHIFT
(Superseded to 306689MA)

$14.99

$

Usually ships in 2-12 days

0

790

Murray 578926

ROD, ASSY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578924

ROD, ASSY RH

$75.99

$

In Stock, only 1 left!

0

795

Murray 579002

BRACKET, CAM

$

$

Currently unavailable

796

Murray 002X53

SCREW
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

798

Murray 71038

NUT, NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

799

Murray 8417

CAM LOCK

$34.99

$

In Stock, only 4 left!

0

800

Murray 584673

PIN, SPRING PIVOT

$18.99

$

Usually ships in 2-12 days

0

801

Murray 73664

NUT, PUSH ON
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

802

Murray 71081

PIN, COTTER

$

$

Not available

803

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

804

Murray 1501728

ROD, SPEED CTRL
(Superseded to 1501728MA)

$42.99

$

Usually ships in 2-12 days

0

805

Murray 71042

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

806

Murray 6352

ADAPTER, ROD
(Superseded to 6352MA)

$95.99

$

Usually ships in 2-12 days

0

808

Murray 50782

BALLJOINT, STEEL
(Superseded to 1723554SM)

$16.99

$

Usually ships in 2-12 days

0

809

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

810

Murray 71042

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

811

Murray 579944

BEARING, FL
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0

812

Murray 1501110 YZ

ROD, YOKE
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 1 left!

0

813

Murray 11X30

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 9

0
