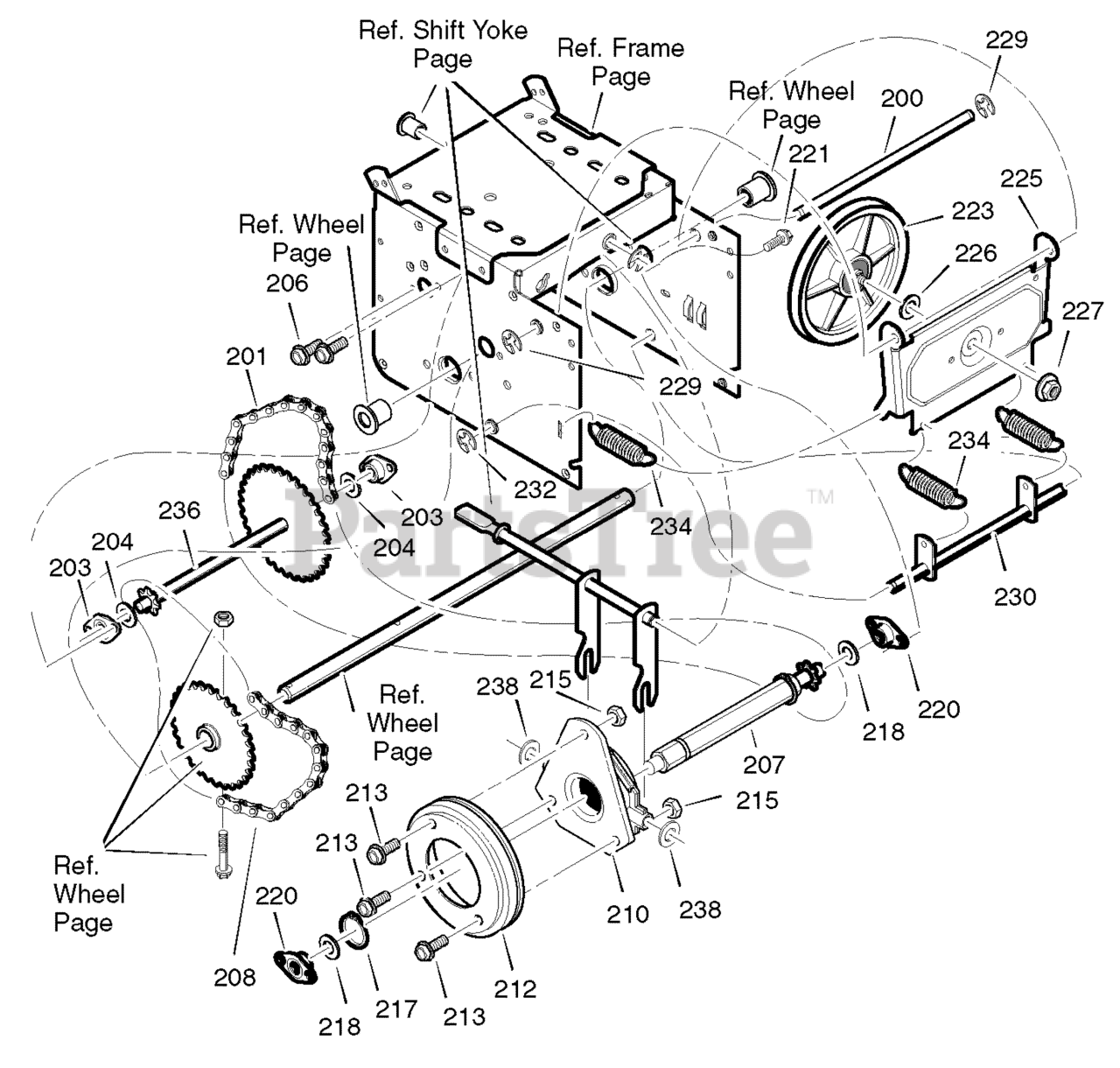

536.888110 - Craftsman 30" Snow Thrower (2004) (Sears) Drive Parts Diagram

30" Snow Thrower

Drive Parts Diagram

  • Title

200

Murray 1501092 YZ

LF AXLE, SWING PLATE YZ
(Superseded to 703328)

$21.99

$

Usually ships in 2-12 days

0

201

Murray 579851

CHAIN, ROLLER #420 x 19.00 LG
(Superseded to 579851MA)

$21.99

$

In Stock, Qty 16

0

203

Murray 334163

BEARING AND RETAINER, ASSY
(Superseded to 334163MA)

$11.99

$

In Stock, Qty 8

0

204

Murray 579858

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

206

Murray 25X020

SCREW, TAP 5/16-18 x 0.5
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

207

Murray 1501100

ASSY, HEX SHAFT
(Superseded to 1501100MA)

$

$

Not available

208

Murray 579868

CHAIN, ROLLER #420 x 18.00 LG
(Superseded to 579868MA)

$20.99

$

In Stock, Qty 17

0

210

Murray 337029

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

212

Murray 1501435

WHEEL, FRICTION DISC
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 9

0

213

Murray 001X38

SCREW, 1/4-20 x 0.63
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

215

Murray 303008

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

217

Murray 579859

RING, RETEXT
(Superseded to 579859MA)

$4.49

$

Usually ships in 2-12 days

0

218

Murray 579858

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

220

Murray 334163

BEARING AND RETAINER, ASSY
(Superseded to 334163MA)

$11.99

$

In Stock, Qty 8

0

221

Murray 25X020

SCREW, TAP 5/16-18 x .5
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115

ASSY, FRICTION PULLEY
(Superseded to 1501115MA)

$

$

Not available

225

Murray 1501057 YZ

LF PLATE, SWINGING YZ
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

227

Murray 15X114

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 12

0

230

Murray 1501107 YZ

LF ASSY, SPRING LINK YZ

$21.99

$

Usually ships in 2-12 days

0

232

Murray 11X30

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 12

0

234

Murray 165X112

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

236

Murray 1501090

WLD, INTERMED SPROCKET 33T/7
(Superseded to 1501237MA)

$80.99

$

In Stock, only 4 left!

0

238

Murray 71074

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available
