536.888110 - Craftsman 30" Snow Thrower (2004) (Sears) Auger Housing Parts Diagram

30" Snow Thrower

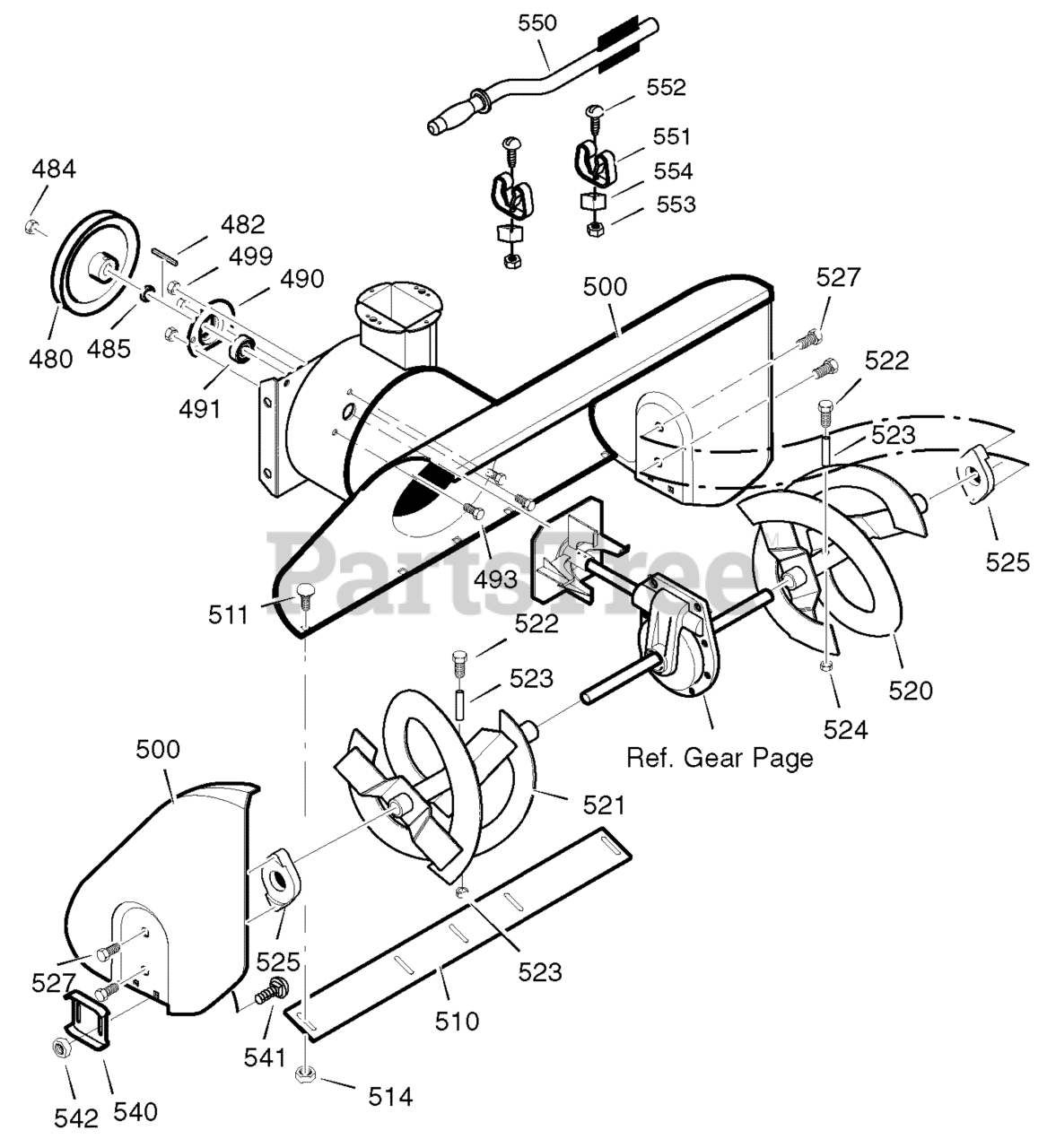

Auger Housing Parts Diagram

  • Title
480

Murray 583146

PULLEY
(Superseded to 583146MA)

$

$

Not available

482

Murray 2001022

KEY, SQUARE
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

484

Murray 15X112

NUT, 1/4-20
(Superseded to 15X112MA)

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92

BOLT, HEX - 0.31-18X0.50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEX

$

$

Not available

500

Murray 1501695E201

HOUSING, ASSY

$535.99

$

Usually ships in 2-12 days

0

510

Murray 760659E701

BLADE, SCRAPER

$51.99

$

Usually ships in 2-12 days

0

511

Murray 340720

BOLT, 1/4-20X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

514

$

$

Not available

520

Murray 760589E701

AUGER, ASSY, LH

$

$

Not available

521

Murray 760590E701

AUGER, ASSY, RH

$

$

Not available

522

Murray 9524

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray 3943

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757

BEARING,FLANGE
(Superseded to 53757MA)

$9.99

$

In Stock, only 2 left!

0

527

Murray 25X021

SCREW, 5/16-18 x 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 762376E701

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

542

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available

550

Murray 1501576

BRUSH, CLEANOUT

$34.99

$

In Stock, only 4 left!

0

551

Murray 1501672

CLIP, RETAINER
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

552

Murray 06X115

SCREW
(Superseded to 06X115MA)

$3.99

$

Usually ships in 2-12 days

0

553

$4.49

$

In Stock, only 2 left!

0

554

Murray 578063

BLOCK
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

--

Murray 1501227

KIT, SHEAR BOLT

$15.99

$

In Stock, Qty 19

0
