536.887996 - Craftsman 29" Snow Thrower (2004) (Sears) Gear Case Parts Diagram

29" Snow Thrower

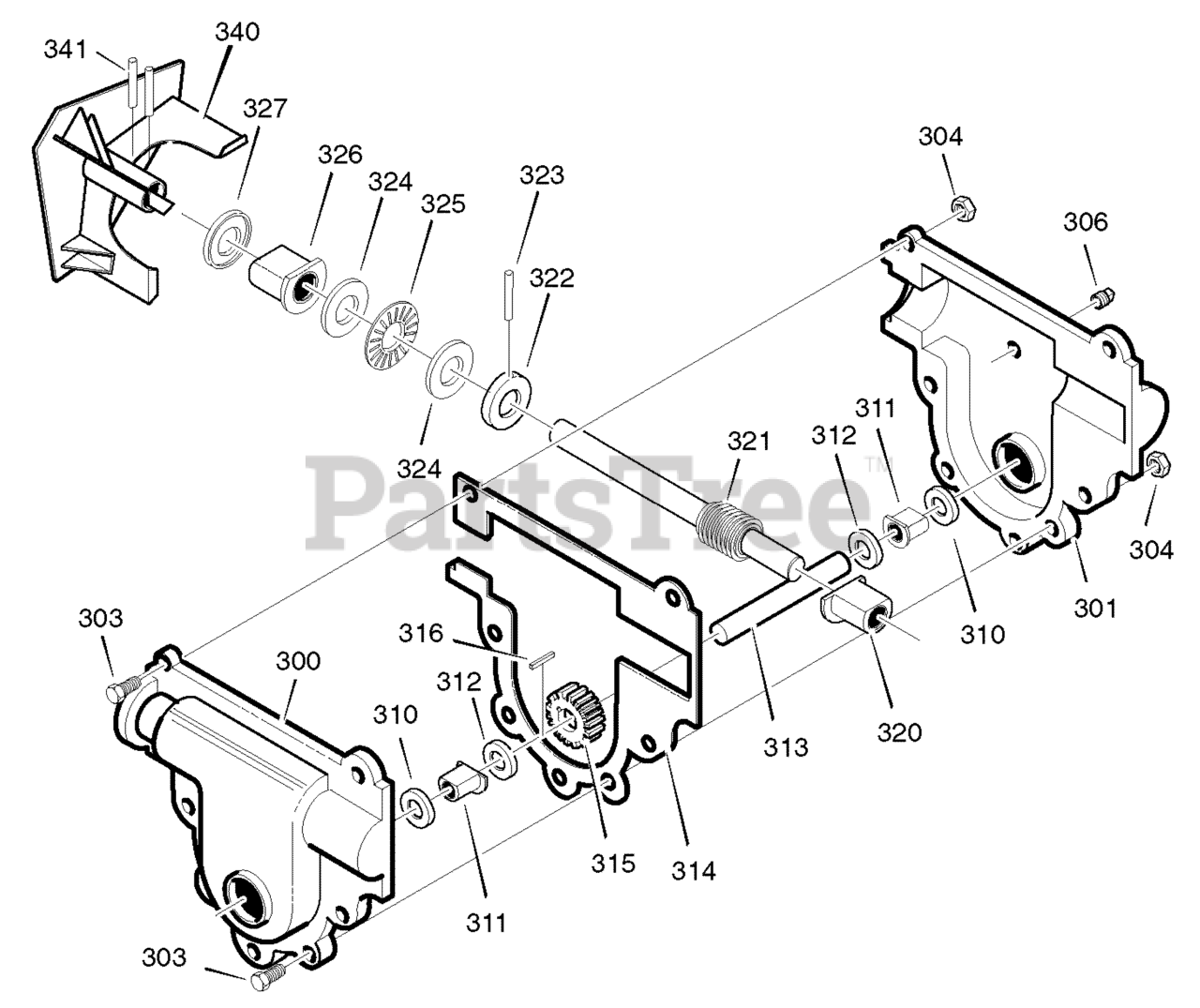

Gear Case Parts Diagram

  • Title
300

Murray 10577

CASE, GEAR, RH
(Superseded to 10577MA)

$22.99

$

In Stock, only 1 left!

0

301

Murray 10576

CASE, GEAR, LH
(Superseded to 10576MA)

$22.99

$

In Stock, Qty 5

0

303

$

$

Not available

304

Murray 15X143

NUT
(Superseded to 7001278MA)

$

$

Not available

306

Murray 9344

SCREW
(Superseded to 1673452SM)

$3.99

$

Usually ships in 2-12 days

0

310

Murray 9566

SEAL, OIL
(Superseded to 9566MA)

$12.99

$

In Stock, only 2 left!

0

311

Murray 50304

BEARING, FL
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 14

0

312

Murray 48275

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

313

Murray 1501190

SHAFT, OUTPUT

$69.99

$

Usually ships in 2-12 days

0

314

Murray 51279

GASKET
(Superseded to 51279MA)

$12.99

$

In Stock, Qty 10

0

315

Murray 51405

GEAR, WORM
(Superseded to 51405GS)

$

$

Not available

316

Murray 431787

KEY, WOODRUFF
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

320

Murray 50221

BRNG, FL
(Superseded to 50221MA)

$8.49

$

In Stock, only 4 left!

0

321

Murray 1501191

SHAFT, INPUT
(Superseded to 1501191MA)

$75.99

$

In Stock, only 1 left!

0

322

Murray 580295

COLLAR, THRUST
(Superseded to 580295MA)

$22.99

$

Usually ships in 2-12 days

0

323

Murray 454565

PIN, SPRING
(Superseded to 454565MA)

$

$

Not available

324

Murray 48275

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

325

Murray 50684

BRNG, ROLL
(Superseded to 50684MA)

$6.49

$

In Stock, only 1 left!

0

326

Murray 50304

BRNG, FL
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 14

0

327

Murray 9566

SEAL, OIL
(Superseded to 9566MA)

$12.99

$

In Stock, only 2 left!

0

340

Murray 1501188E701

IMPELLER
(Superseded to 1501188E701MA)

$

$

Not available

341

Murray 454565

PIN, SPRING
(Superseded to 454565MA)

$

$

Not available

*

Murray 333431

10oz LUBRIPLATE
(Superseded to 333431MA)

Note: (Not Illustrated)

$

$

Not available
