536.887995 - Craftsman 29" Snow Thrower (2004) (Sears) Frame Parts Diagram

29" Snow Thrower

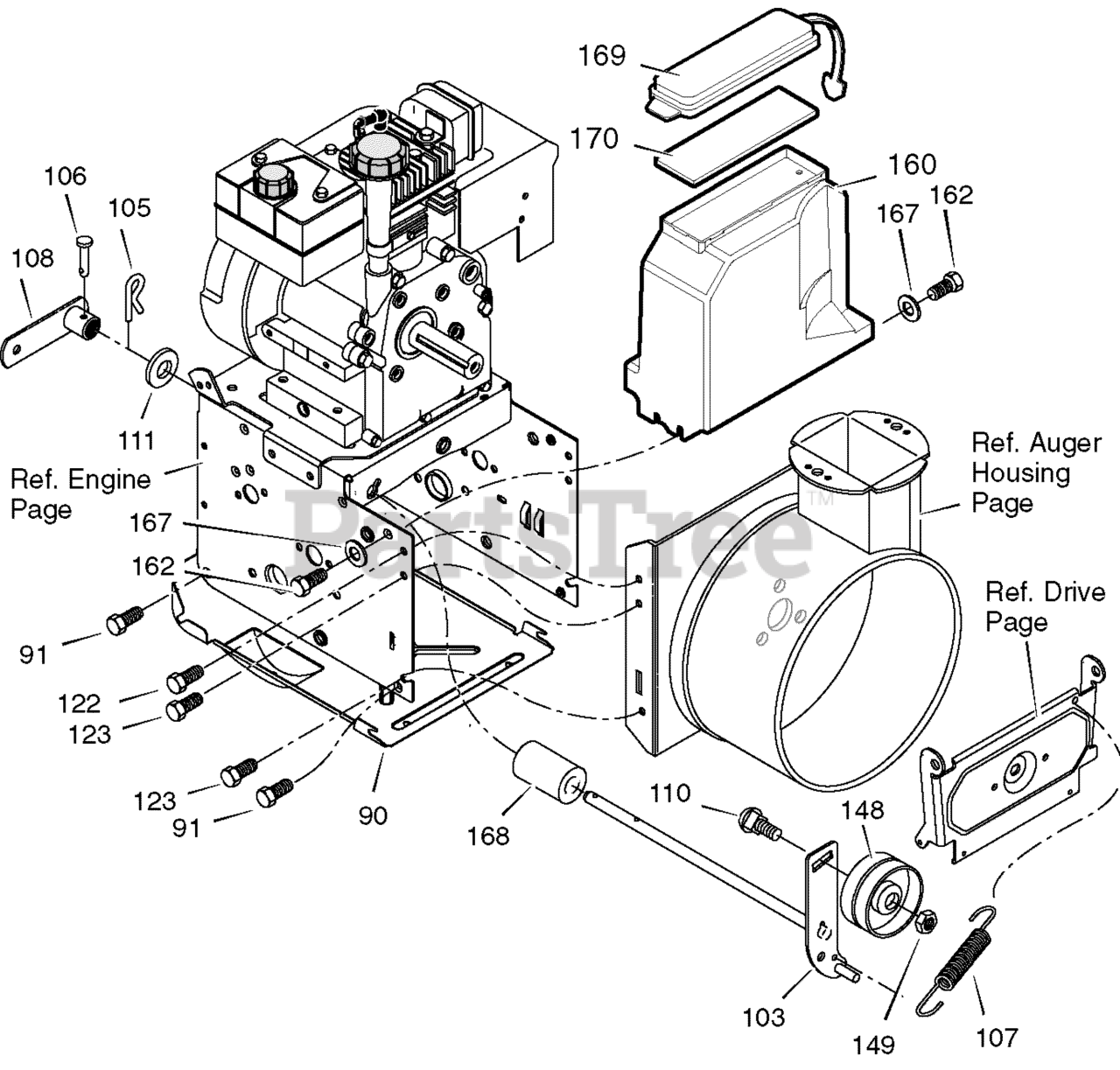

Frame Parts Diagram

  • Title

90

Murray 1501055E701

COVER, BOTTOM

$35.99

$

In Stock, only 1 left!

0

91

Murray 310169

SCREW
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 9

0

103

Murray 1501226

YZ IDLER, AUGER

$52.99

$

Usually ships in 2-12 days

0

105

Murray 711682

PIN, HAIR

$7.49

$

In Stock, only 1 left!

0

106

Murray 761761

PIN, CLEVIS
(Superseded to 761761MA)

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159

SPRING, TENSION
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 9

0

108

Murray 761675

YZ SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781

BOLT, CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

122

Murray 25X020

SCREW, TAP
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

123

Murray 25X021

SCREW, TAP
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, Qty 16

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

160

Murray 1501052

COVER, BELT

$60.99

$

Usually ships in 2-12 days

0

162

Murray 26X306

SCREW, TAP
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Murray 1501200

SPACER
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

169

Murray 760539

LID, TOOL BOX

$10.99

$

In Stock, only 1 left!

0

170

Murray 761187

PAD, FOAM

$6.49

$

In Stock, only 1 left!

0
