536.881950 - Craftsman 29" Snow Thrower (2005) (Sears) Engine Parts Diagram

29" Snow Thrower

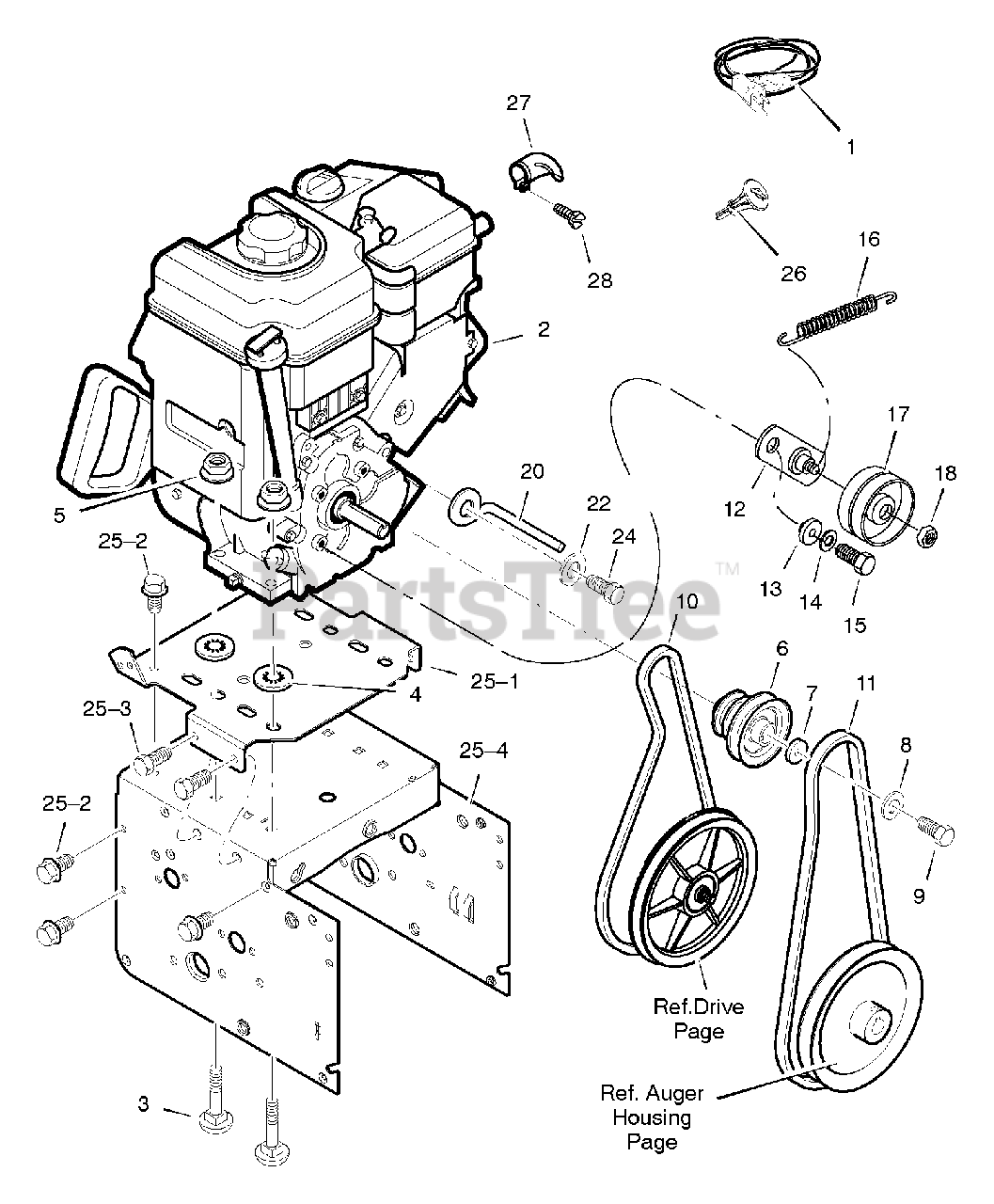

Engine Parts Diagram

  • Title
1

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

2

ENGINE

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

4

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

$

$

Not available

6

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, only 2 left!

0

7

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

8

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

9

Murray 71015

SCREW

$

$

Not available

10

Murray 579932MA

BELT, DRIVE V 3L
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray 585416MA

BELT, AUGER V 4L

$22.99

$

In Stock, Qty 20+

0

12

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.49

$

In Stock, only 2 left!

0

14

Murray 71060

WASHER, SPLIT
(Superseded to 1501670MA)

$

$

Not available

15

Murray 710097

SCREW 5/16-24 X 0.75

$10.99

$

In Stock, only 1 left!

0

16

Murray 53704MA

SPRING, IDLER TRACTION DRIVE

$8.49

$

In Stock, only 2 left!

0

17

Murray 1502120

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

18

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 9

0

20

Murray 1501201MA

GUIDE, ROD BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

24

$10.99

$

In Stock, only 1 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E201

PLATE, ENGINE

$61.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

25-3

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1501049E201

MOTOR BOX

$94.99

$

Usually ships in 2-12 days

0

26

Murray 695756

KEY, ENGINE
(Superseded to 794696)

$7.49

$

In Stock, Qty 15

0

27

Murray 697816

DEFLECTOR, Muffler

$16.99

$

In Stock, only 1 left!

0

28

$3.49

$

Usually ships in 2-12 days

0

--

$

$

Currently unavailable
