536.881850 - Craftsman 27" Snow Thrower (2005) (Sears) Frame Parts Diagram

27" Snow Thrower

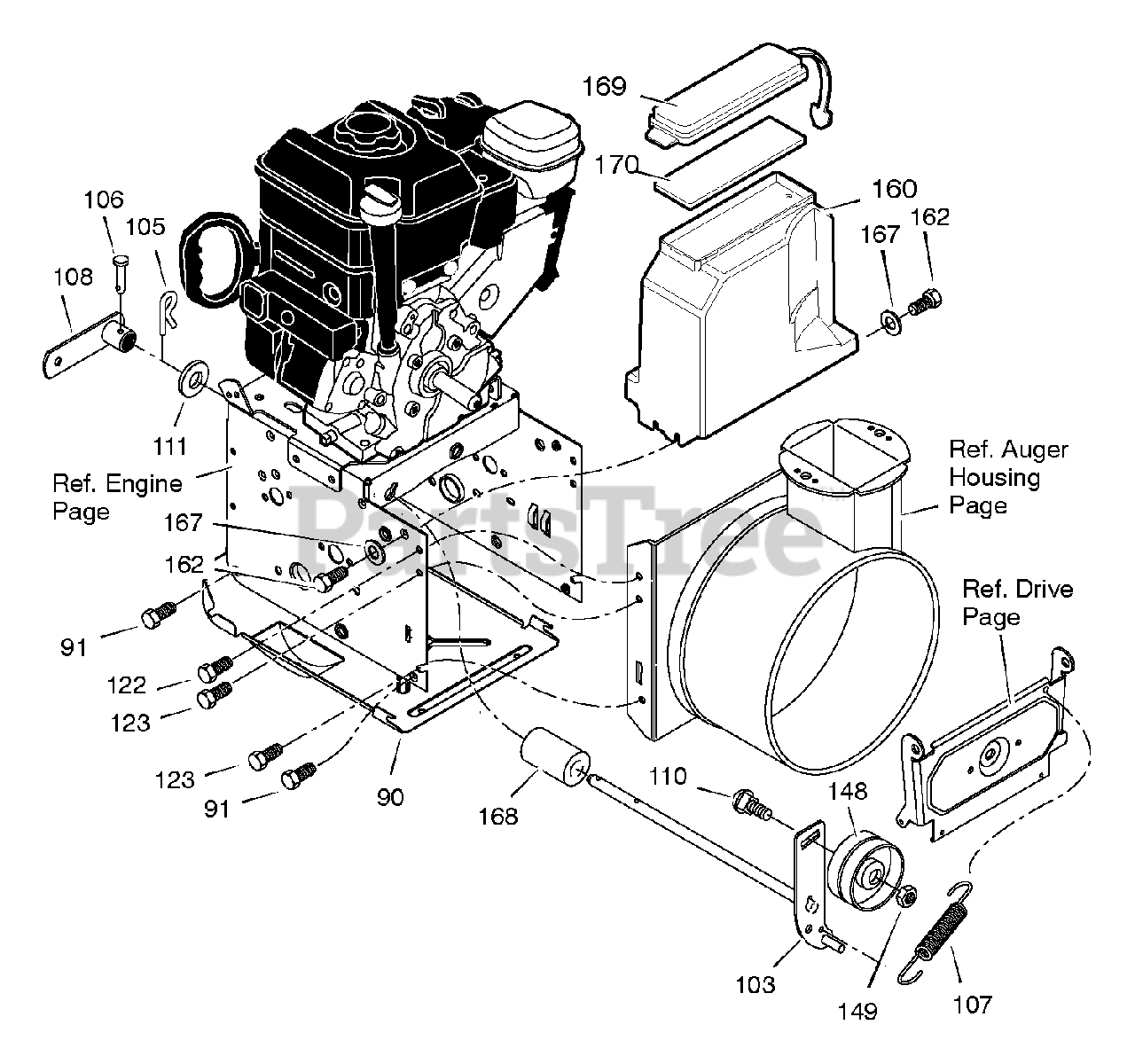

Frame Parts Diagram

  • Title
90

Murray 1501055E701MA

COVER, BOTTOM

$35.99

$

In Stock, only 4 left!

0

91

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

103

Murray 1501226 YZ

IDLER, AUGER
(Superseded to 1501226YZMA)

$52.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, CLEVIS

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159MA

SPRING, TENSION

$6.99

$

In Stock, Qty 9

0

108

Murray 761675 YZ

SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, CARRIAGE
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

122

Murray 25X021MA

SCREW, TAP
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

123

Murray 25X020MA

SCREW, TAP

$4.99

$

In Stock, Qty 6

0

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 10

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

160

Murray 1502167

COVER, BELT
(Superseded to 1502167MA)

$42.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, TAP

$4.99

$

Usually ships in 2-12 days

0

166

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

$5.99

$

Usually ships in 2-12 days

0

169

Murray 760539MA

LID, TOOL BOX

$10.99

$

In Stock, only 1 left!

0

170

Murray 761187MA

PAD, FOAM

$6.49

$

In Stock, only 1 left!

0
