536.881800 - Craftsman 27" Snow Thrower (2004) (Sears) Shift Yoke Parts Diagram

27" Snow Thrower

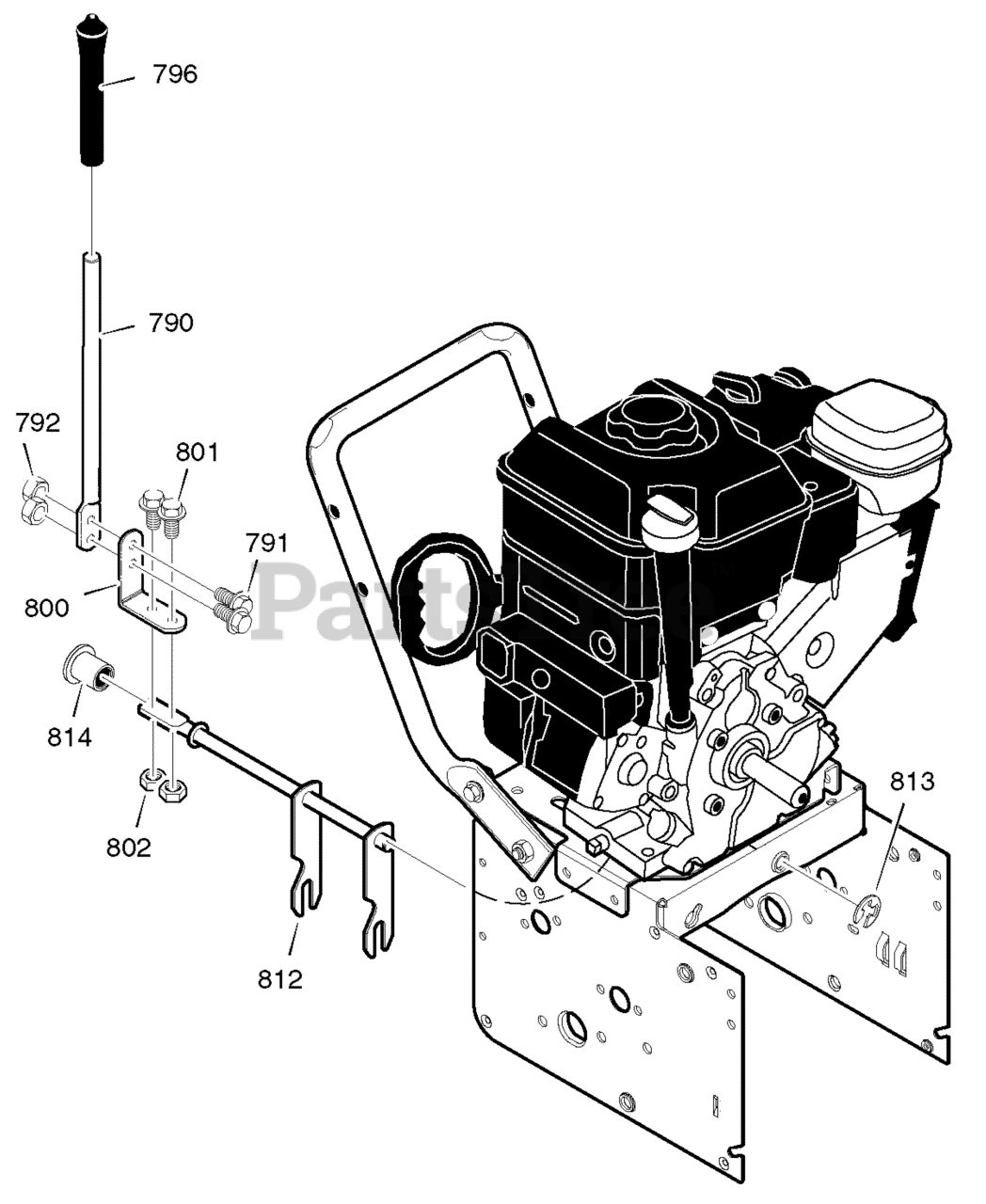

Shift Yoke Parts Diagram

  • Title
790

Murray 336702E701

ROD, SHIFT

$170.99

$

Usually ships in 2-12 days

0

791

Murray 302628

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

792

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

796

Murray 331624

KNOB, SLIP
(Superseded to 331624MA)

$5.99

$

In Stock, only 1 left!

0

800

Murray 760564

LEVER, SPRING
(Superseded to 760564MA)

$9.99

$

Usually ships in 2-12 days

0

801

Murray 302628

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

802

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

812

Murray 1501085 YZ

ROD ASSY., SPEED SELECT

$40.99

$

Usually ships in 2-12 days

0

813

Murray 11X30

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

814

Murray 579944

BEARING, FLANGED
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0
