536.881800 - Craftsman 27" Snow Thrower (2004) (Sears) Chute Rod Parts Diagram

27" Snow Thrower

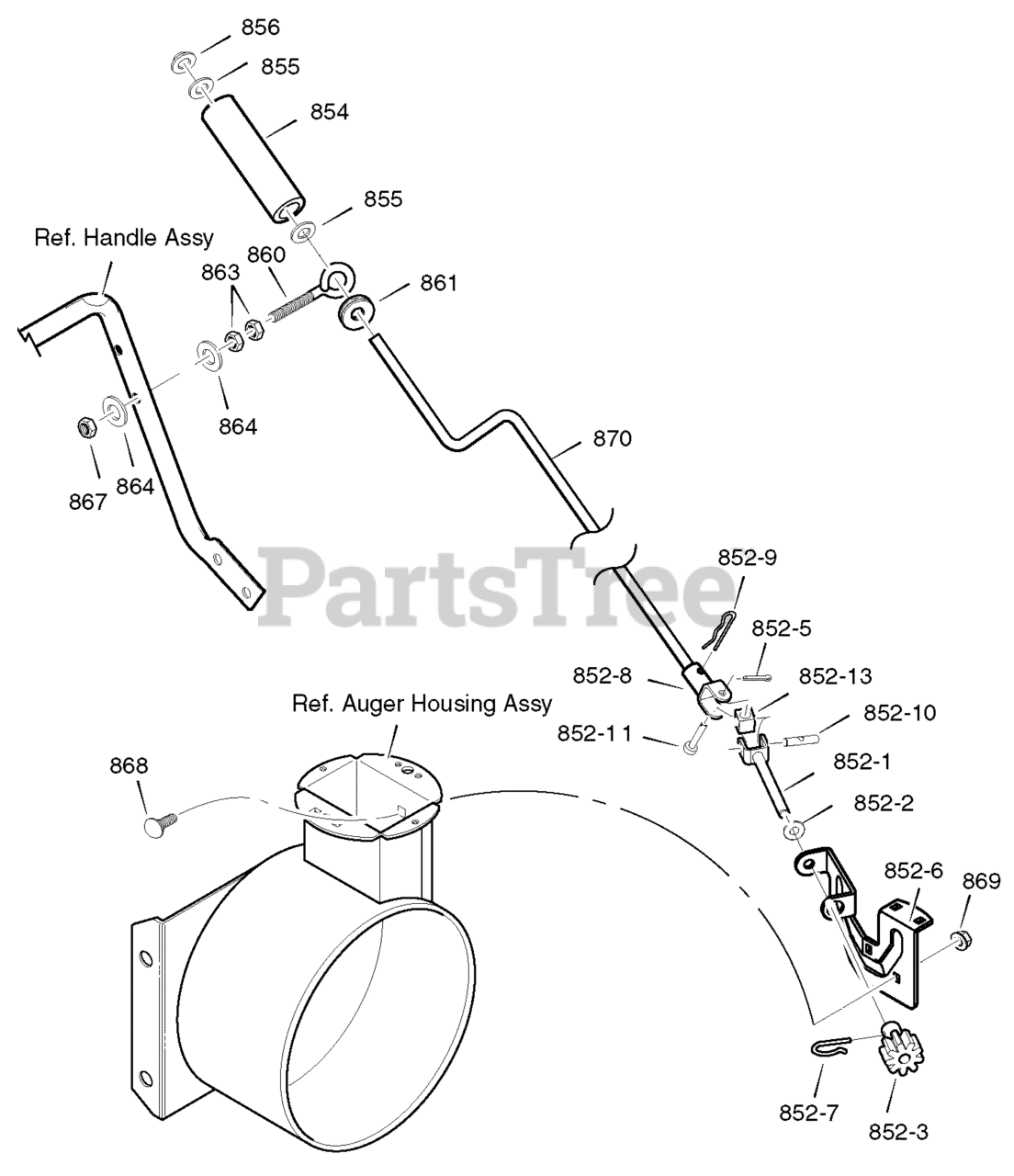

Chute Rod Parts Diagram

  • Title
852-1

Murray 1501309 YZ

ASSEMBLY, YOKE & ROD

$

$

Not available

852-2

Murray 313431

WASHER, CURVED SPRING
(Superseded to 313431MA)

$4.99

$

In Stock, only 1 left!

0

852-3

Murray 1501067

GEAR, CHUTE ROTATION 9T
(Superseded to 1501067MA)

$17.99

$

Usually ships in 2-12 days

0

852-5

Murray 579493

PIN, COTTER
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

852-6

Murray 1501306E701

BRACKET, GEAR MOUNT

$37.99

$

In Stock, only 1 left!

0

852-7

Murray 1501293

PIN, HAIR
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

852-8

Murray 1501075 YZ

ASSEMBLY, YOKE ADAPTER YZ
(Superseded to 1501075YZMA)

$10.99

$

Usually ships in 2-12 days

0

852-9

Murray 711682

PIN, HAIR

$7.49

$

In Stock, only 1 left!

0

852-10

Murray 578060

PIN, UNIVERSAL JOINT
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

852-11

Murray 578309

PIN, CLEVIS
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 6

0

852-13

Murray 578063

HOUSING, UNIVERSAL
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

854

Murray 51443

KNOB, CRANK
(Superseded to 51443MA)

$7.49

$

Usually ships in 2-12 days

0

855

Murray 309312

FLATWASHER

$4.49

$

In Stock, only 3 left!

0

856

Murray 73664

NUT, PUSH
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

860

Murray 1501456

EYE BOLT 3/8-16X6.00
(Superseded to 1501456MA)

$9.49

$

Usually ships in 2-12 days

0

861

Murray 148

GROMMET, EYE BOLT
(Superseded to 148MA)

$

$

Not available

863

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Murray 71072

FLATWASHER .406X.81X.066

$

$

Not available

867

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

868

Murray 002X98

BOLT, CARRIAGE 1/4-20 X 1.00
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

869

Murray 15X145

NUT, 1/4-20 NYLOCK YZ

$4.49

$

In Stock, Qty 20+

0

870

Murray 1501074 YZ

CRANK, ASSY CHUTE
(Superseded to 703120)

$29.99

$

In Stock, only 2 left!

0
