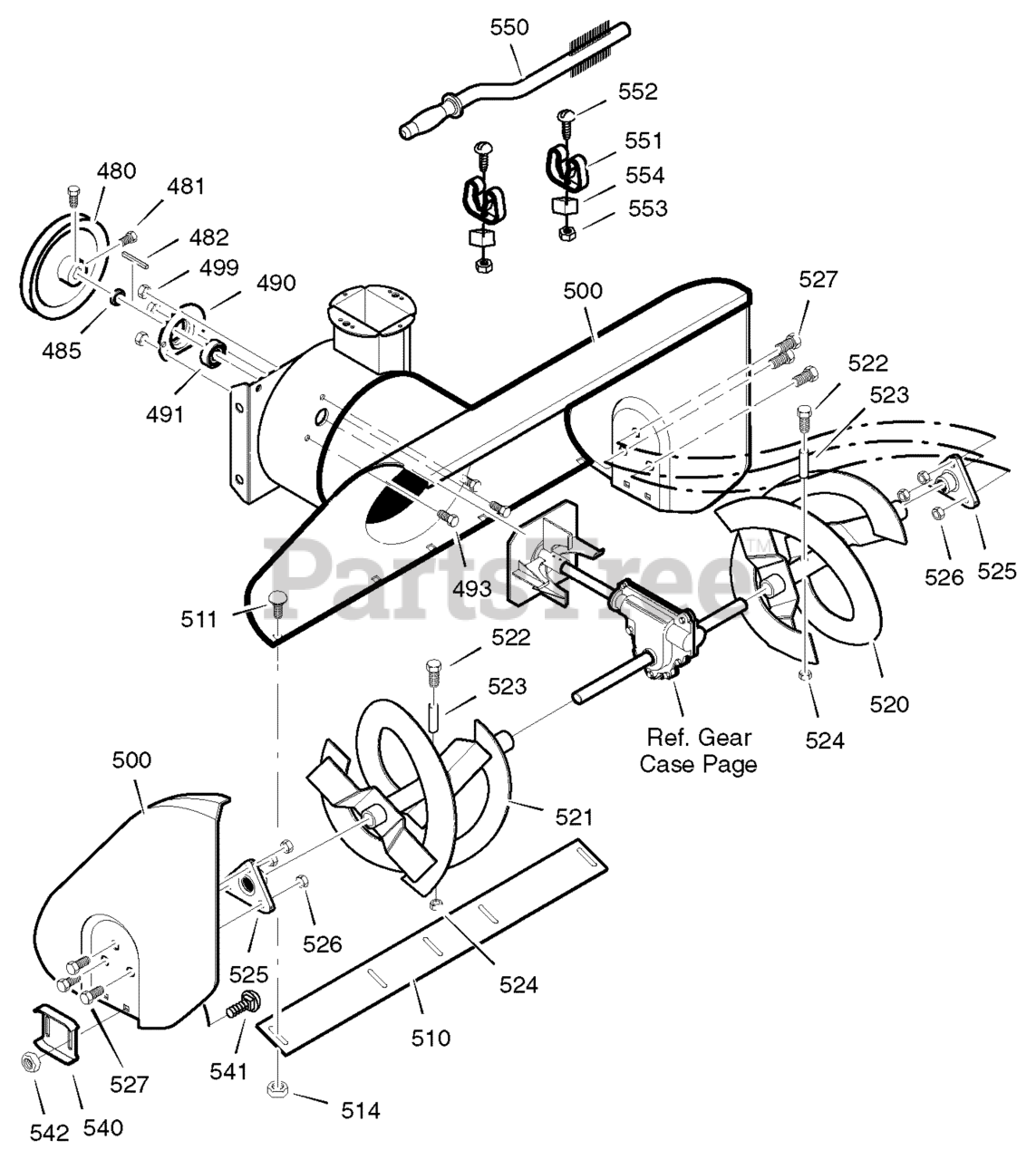

536.881750 - Craftsman 24" Snow Thrower (2004) (Sears) Auger Housing Parts Diagram

24" Snow Thrower

Auger Housing Parts Diagram

  • Title
480

Murray 762146

PULLEY, V4L 6.12X0.67

$70.99

$

Usually ships in 2-12 days

0

481

Murray 577400

SCREW, 5/16-18 x 0.63
(Superseded to 577400MA)

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022

KEY, SQUARE 3/16 X 3/4
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 12

0

485

Murray 1501158

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92

BOLT, HEX 5/16-18 X 1/2

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501891E201

HOUSING, ASSY

$

$

Not available

510

Murray 581397E701

BLADE, SCRAPER

$40.99

$

In Stock, only 3 left!

0

511

Murray 340714

BOLT, 1/4-20 X 3/4

$3.99

$

In Stock, only 3 left!

0

514

Murray 780285

NUT, 1/4-20

$

$

Not available

520

Murray 1502015E701

AUGER, ASSY, LH

$277.99

$

Usually ships in 2-12 days

0

521

Murray 1502014E701

AUGER, ASSY, RH

$

$

Not available

522

Murray 9524

SCREW
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517

BEARING, FLANGE
(Superseded to 9517MA)

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862

NUT, 5/16-18
(Superseded to 703119)

$3.49

$

In Stock, only 2 left!

0

527

Murray 9357

SCREW, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

540

Murray 301380E701

SKID, HEIGHT ADJUST

$8.99

$

In Stock, only 4 left!

0

541

Murray 340720

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

542

Murray 710026

NUT, 5/16-18

$

$

Not available

550

Murray 1501576

BRUSH, CLEANOUT

$34.99

$

In Stock, Qty 7

0

551

Murray 1501672

CLIP, RETAINER
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 18

0

552

Murray 06X115

SCREW
(Superseded to 06X115MA)

$3.99

$

Usually ships in 2-12 days

0

553

$4.49

$

In Stock, only 2 left!

0

554

Murray 578063

BLOCK
(Superseded to 578063MA)

$5.49

$

In Stock, only 4 left!

0

--

Murray 1501216

KIT, SHEAR BOLT
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0
