536.881510 (88150100 NA) - Craftsman 22" Snow Thrower (2007) (Sears) Frame And Fuel Tank Parts Diagram

22" Snow Thrower

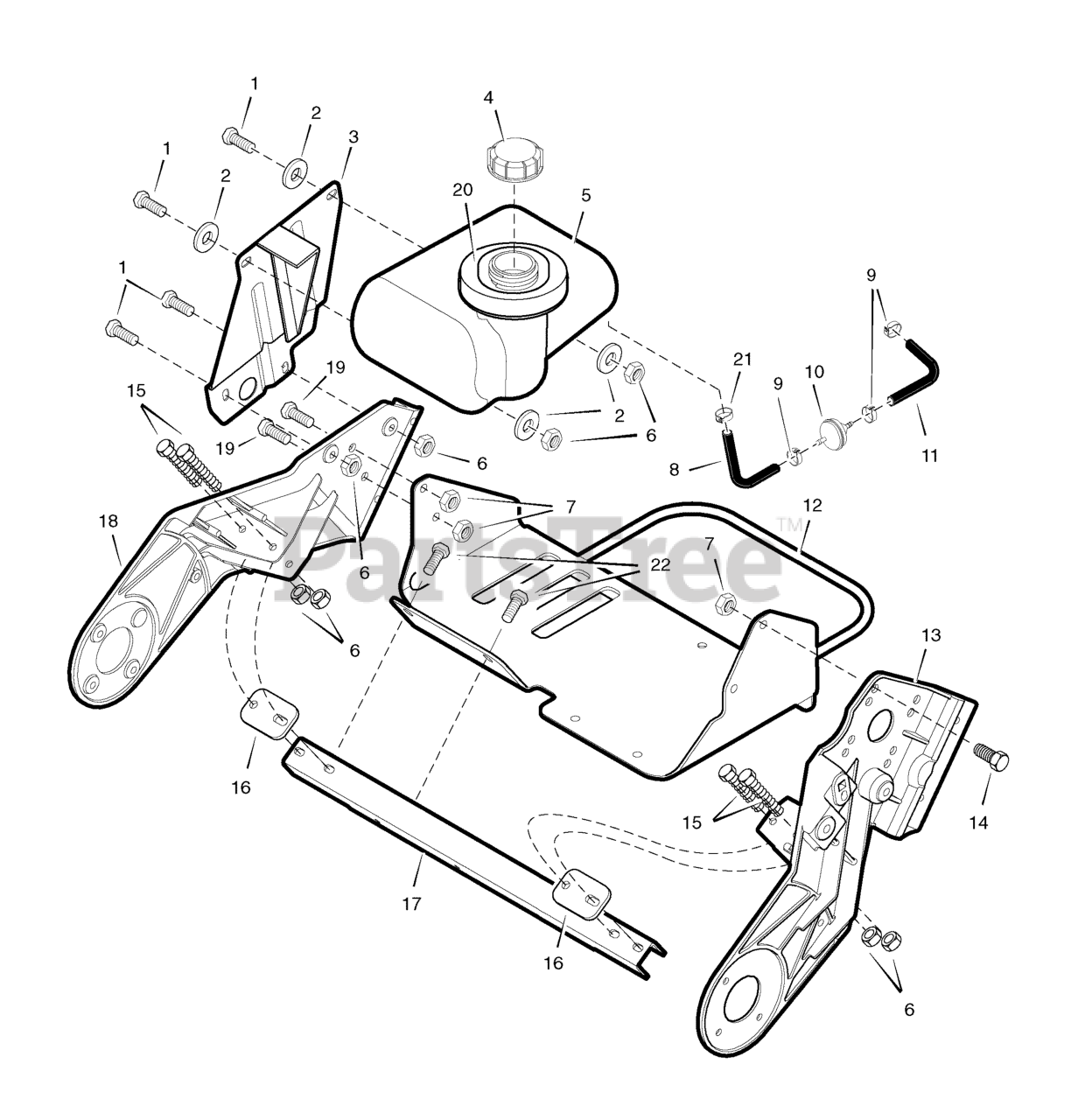

Frame And Fuel Tank Parts Diagram

  • Title

1

Murray 302628MA

Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 7

0

2

Murray 71067MA

Washer

$4.49

$

In Stock, only 1 left!

0

3

Murray 1502053E701MA

Bracket, Fuel Tank

$20.99

$

Usually ships in 2-12 days

0

4

Murray 1501726MA

Cap, Fuel Tank
(Superseded to 692046)

$5.49

$

In Stock, Qty 9

0

5

Murray 1501875MA

Tank, Fuel

$50.99

$

Usually ships in 2-12 days

0

6

Murray 73826MA

Nut, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

7

Murray 71391MA

Nut, Hex 5/16-18

$4.49

$

Usually ships in 2-12 days

0

8

Murray 1502028MA

HOSE, FUEL 12 INCHES

Note: (Cut to length)

$8.49

$

In Stock, only 1 left!

0

9

Murray 323387MA

Clamp, Fuel Line

$4.49

$

Usually ships in 2-12 days

0

10

Murray 298090S

Filter, Fuel Line

$

$

Not available

11

Murray 335906MA

Tubing, Fuel LIne

$6.49

$

Usually ships in 2-12 days

0

12

Murray 1501849E701MA

Cradle Assy, Engine

$222.99

$

Usually ships in 2-12 days

0

13

Murray 1501872E701MA

Frame, LH

$

$

Not available

14

Murray 48901MA

Screw, 5/16-18 x .63

$3.99

$

Usually ships in 2-12 days

0

15

Murray 180044MA

Screw, 1/4-20 x 2.00

$3.99

$

Usually ships in 2-12 days

0

16

Murray 335351MA

Plate, Support

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1501851MA

Support, Frame

$34.99

$

Usually ships in 2-12 days

0

18

Murray 1501871E701MA

Frame, RH
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

19

Murray 180077MA

Screw, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

20

Murray 1501707MA

Ring, Foam

$6.49

$

Usually ships in 2-12 days

0

21

Murray 47345MA

Clamp, Screw Type

$9.49

$

Usually ships in 2-12 days

0

22

Murray 310169MA

Screw 1/4-20 x .625
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
