536.881500 - Craftsman 22" Snow Thrower (2004) (Sears) Wheels Parts Diagram

22" Snow Thrower

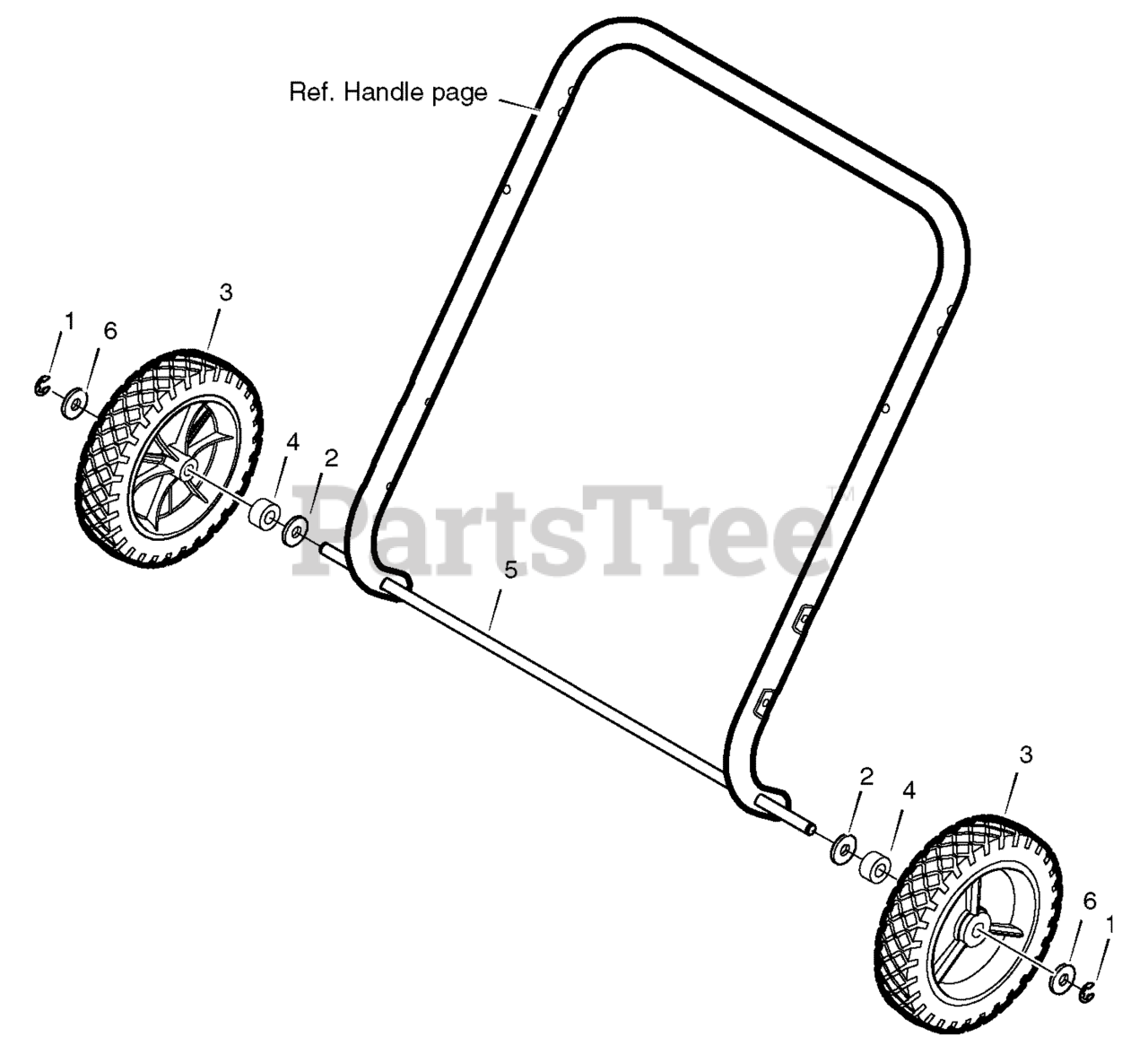

Wheels Parts Diagram

  • Title
1

Murray 577598

Retainer, E-Ring
(Superseded to 577598MA)

$4.49

$

In Stock, only 1 left!

0

2

Murray 71072

Washer

$

$

Not available

3

Murray 760713

Wheel and Tire 7" x 1.50"
(Superseded to 760714MA)

$

$

Not available

4

Murray 309656

Sleeve, Spacer
(Superseded to 309656MA)

$16.99

$

In Stock, only 1 left!

0

5

Murray 1501879

Rod, Axle
(Superseded to 1501879MA)

$24.99

$

Usually ships in 2-12 days

0

6

Murray 583409

Washer
(Superseded to 583409MA)

$4.49

$

Usually ships in 2-12 days

0
