536.881500 - Craftsman 22" Snow Thrower (2004) (Sears) Chute Assembly Parts Diagram

22" Snow Thrower

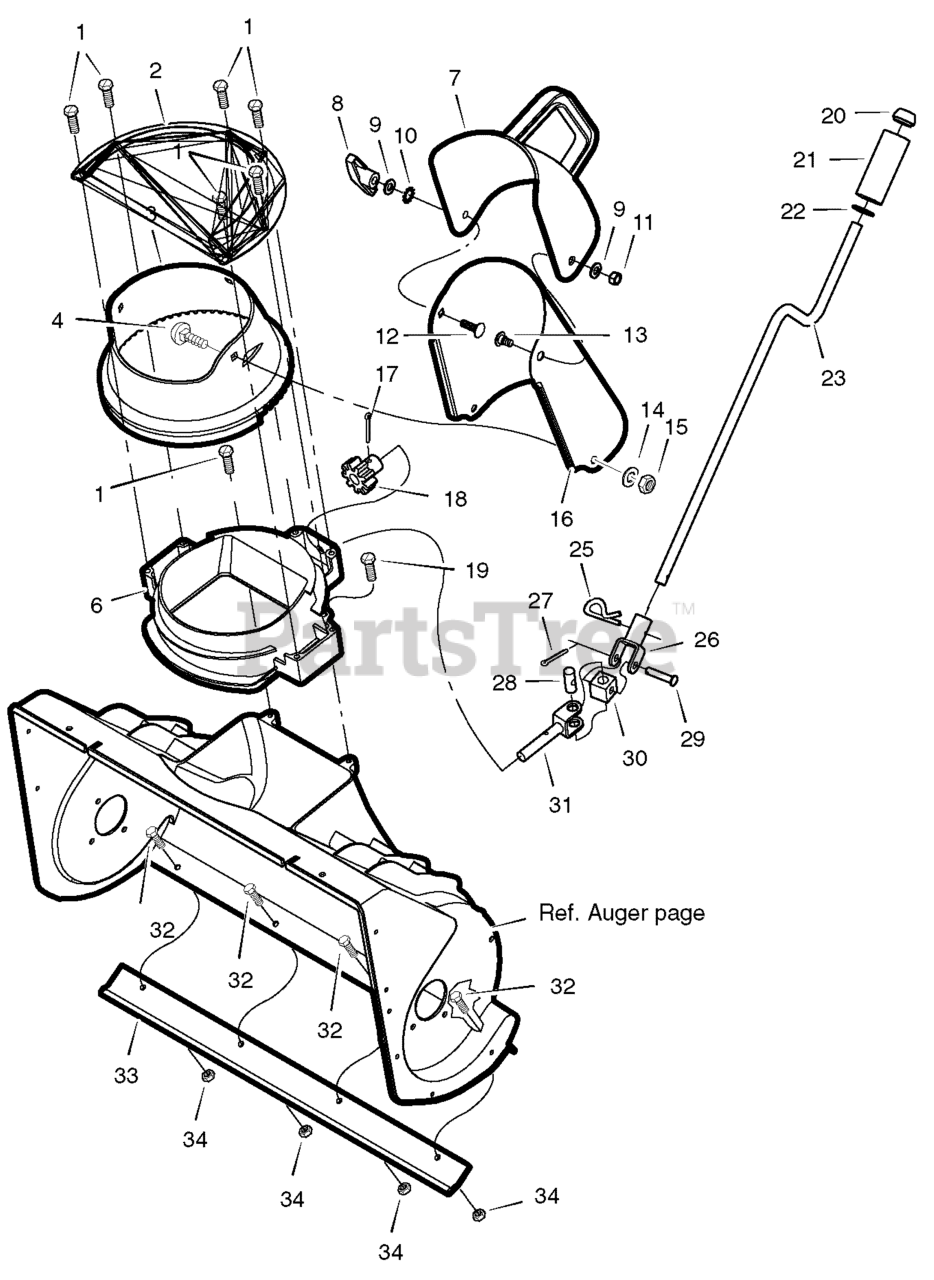

Chute Assembly Parts Diagram

  • Title
1

Murray 313685

Screw 1/4-14
(Superseded to 313685MA)

$5.49

$

Usually ships in 2-12 days

0

2

Murray 1501853

Retainer, Chute Ring

$32.99

$

Usually ships in 2-12 days

0

3

Murray 1501864

Ring, Chute

$50.99

$

Usually ships in 2-12 days

0

4

Murray 340720

Bolt, Carr 5/16-18x.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

6

Murray 1501848

Neck, Chute
(Superseded to 1501848MA)

$37.99

$

Usually ships in 2-12 days

0

7

Murray 1501918

Chute, 22" Upper
(Superseded to 1501918MA)

$30.99

$

Usually ships in 2-12 days

0

8

Murray 1501260

T-Knob
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

9

Murray 71071

Washer
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

10

Murray 19X35

Lockwasher

$4.99

$

In Stock, Qty 11

0

11

Murray 71391

Locknut 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

12

Murray 2X97

Bolt, Carr 5/16-18

$

$

Not available

13

Murray 1501910

Bolt, Upper Chute

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71072

Washer

$

$

Not available

15

Murray 71038

Nut
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Murray 1501909

Chute, Lower

$68.99

$

Usually ships in 2-12 days

0

17

Murray 579493

Pin, Cotter
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

18

Murray 1501067

Gear, 9-Tooth
(Superseded to 1501067MA)

$17.99

$

Usually ships in 2-12 days

0

19

Murray 313685

Screw, 1/4-14 x .75
(Superseded to 313685MA)

$5.49

$

Usually ships in 2-12 days

0

20

Murray 331532

Nut, Push

$4.99

$

Usually ships in 2-12 days

0

21

Murray 57082

Knob, Sleeve
(Superseded to 57082MA)

$7.99

$

Usually ships in 2-12 days

0

22

Murray 71072

Washer

$

$

Not available

23

Murray 1501116

Crank, Chute

$34.99

$

Usually ships in 2-12 days

0

25

Murray 1501293

Pin, Hair
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

26

Murray 1501075

Yoke Assy, Adapter

$10.99

$

Usually ships in 2-12 days

0

27

Murray 579493

Pin, Cotter
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

28

Murray 578060

Pin, Universal Joint
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

29

Murray 578309

Pin, Clevis
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 6

0

30

Murray 578063

Housing, Universal
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

31

Murray 1501873

Rod, Lower Crank
(Superseded to 1501873MA)

$6.99

$

Usually ships in 2-12 days

0

32

Murray 302628

Screw 1/4-20 x .75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

33

Murray 1501863

Blade, Scraper
(Superseded to 1501863MA)

$24.99

$

In Stock, only 4 left!

0

34

Murray 15X143

Locknut, Hex 1/4-20
(Superseded to 7001278MA)

$

$

Not available
