536.881500 - Craftsman 22" Snow Thrower (2004) (Sears) Auger Housing Parts Diagram

22" Snow Thrower

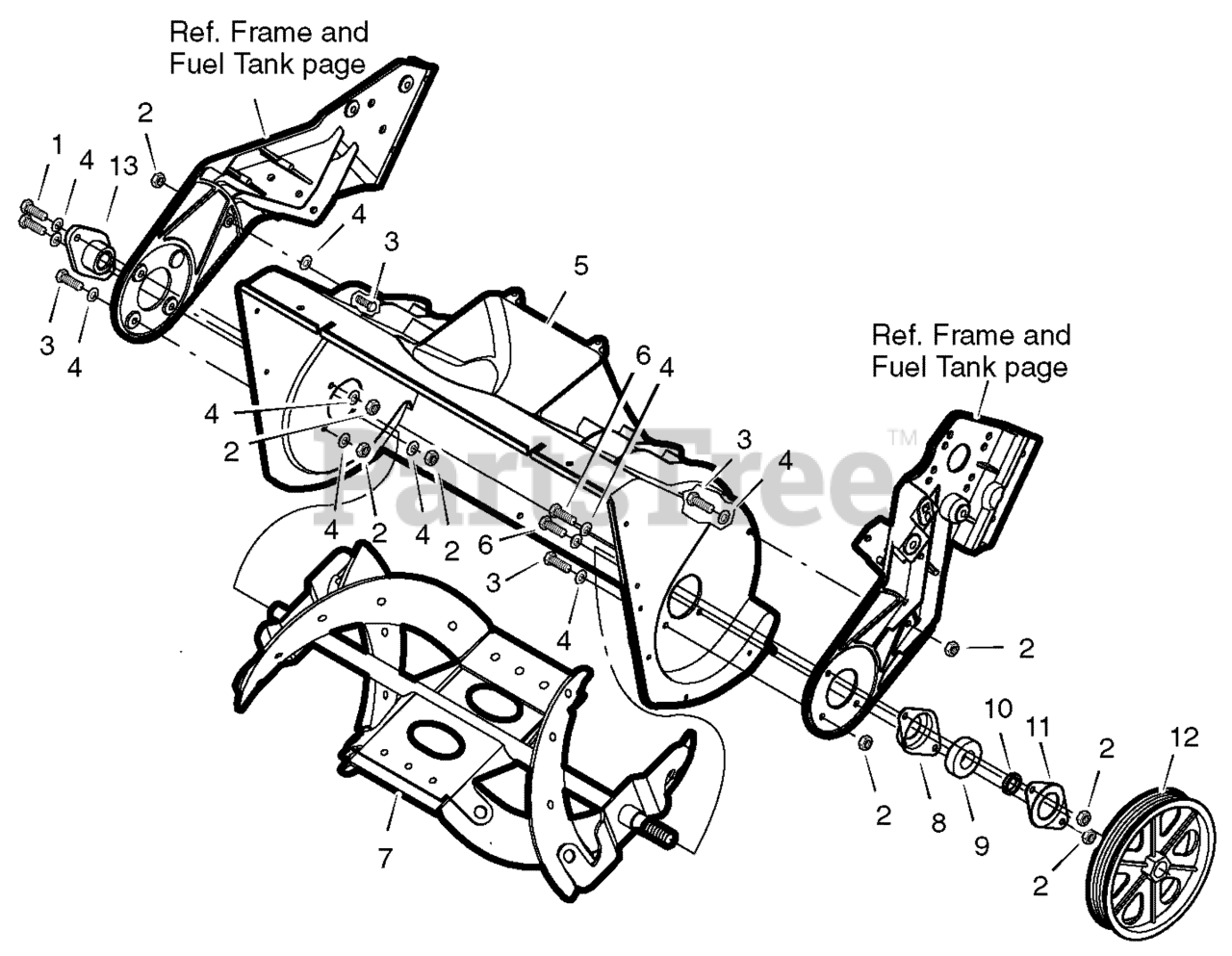

Auger Housing Parts Diagram

  • Title
1

Murray 710263

Screw 1/4-20 x 1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

2

Murray 73826

Nut, Hex 1/4-20

$4.99

$

In Stock, Qty 20+

0

3

Murray 302628

Screw, 1/4-20 x .75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

4

Murray 71067

Washer, Flat
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 1501852

Housing Assy, Auger

$186.99

$

Usually ships in 2-12 days

0

6

Murray 579052

Screw, 1/4-20 x .63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

7

Murray 1501981

Auger Assembly, 22"
(Superseded to 1501981MA)

$256.99

$

Usually ships in 2-12 days

0

8

Murray 580251

Retainer, Bearing
(Superseded to 580251MA)

$16.99

$

Usually ships in 2-12 days

0

9

Murray 43846

Bearing
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Murray 578101

Sleeve, Spacer
(Superseded to 578101MA)

$4.99

$

Usually ships in 2-12 days

0

11

Murray 334287

Plate, Bearing Retainer
(Superseded to 334287MA)

$7.49

$

In Stock, only 1 left!

0

12

Murray 333446

Pulley, Auger Drive V6
(Superseded to 333446MA)

$22.99

$

Usually ships in 2-12 days

0

13

Murray 577023

Bearing, Flange
(Superseded to 577023MA)

$5.99

$

In Stock, only 3 left!

0
