536.881400 - Craftsman 21" Snow Thrower (2005) (Sears) Auger Components Parts Diagram

21" Snow Thrower

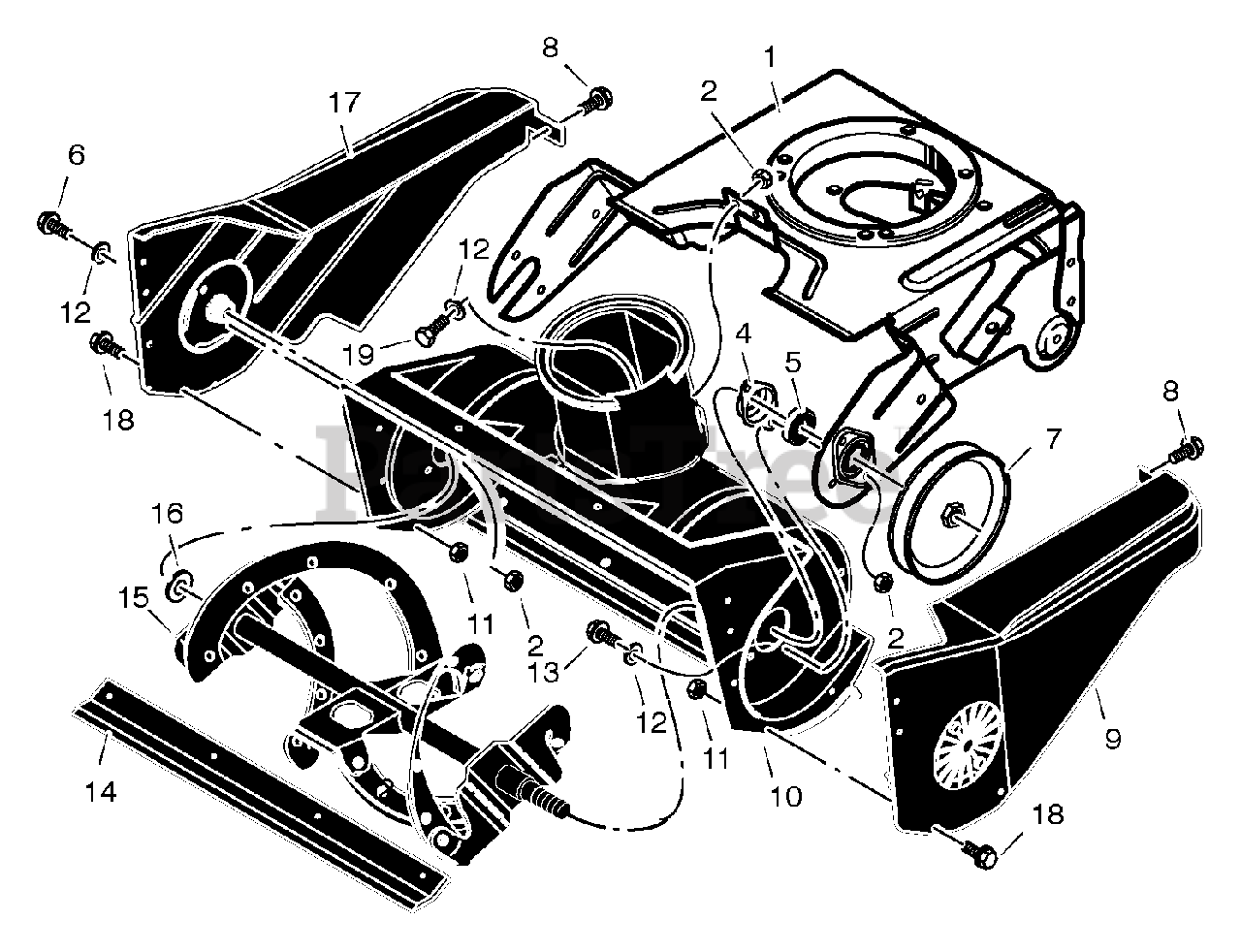

Auger Components Parts Diagram

  • Title

1

Murray 1502011E549MA

Frame, Motor Box
(Superseded to 1502011E701MA)

$319.99

$

Usually ships in 2-12 days

0

2

Murray 15X143MA

Nut

$4.99

$

In Stock, Qty 13

0

4

Murray 580251MA

Retainer, Bearing

$16.99

$

Usually ships in 2-12 days

0

5

Murray 43846

Bearing
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

6

Murray 302628MA

Bolt

$4.49

$

In Stock, Qty 7

0

7

Murray 338965MA

Pulley, Auger

$36.99

$

In Stock, only 1 left!

0

8

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

9

Murray 762277MA

Cover, Left Belt

$69.99

$

Usually ships in 2-12 days

0

10

Murray 1501927MA

Assembly, Auger Housing

$137.99

$

Usually ships in 2-12 days

0

11

Murray 312300MA

Nut
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

12

Murray 71067

Washer
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

13

Murray 579052

Bolt
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

14

Murray 55323MA

Blade, Scraper

$35.99

$

In Stock, only 1 left!

0

15

Murray 327072MA

Auger Assembly

$185.99

$

In Stock, only 1 left!

0

16

Murray 580969MA

Washer

$4.49

$

Usually ships in 2-12 days

0

17

Murray 762278MA

Cover, Right

$

$

Not available

18

Murray 12342MA

Screw

$3.99

$

Usually ships in 2-12 days

0

19

Murray 302628MA

Screw

$4.49

$

In Stock, Qty 7

0
