536.772350 (77235000 NB) - Craftsman Lawn Edger (2007) (Sears) Wheel Assembly Parts Diagram

Lawn Edger

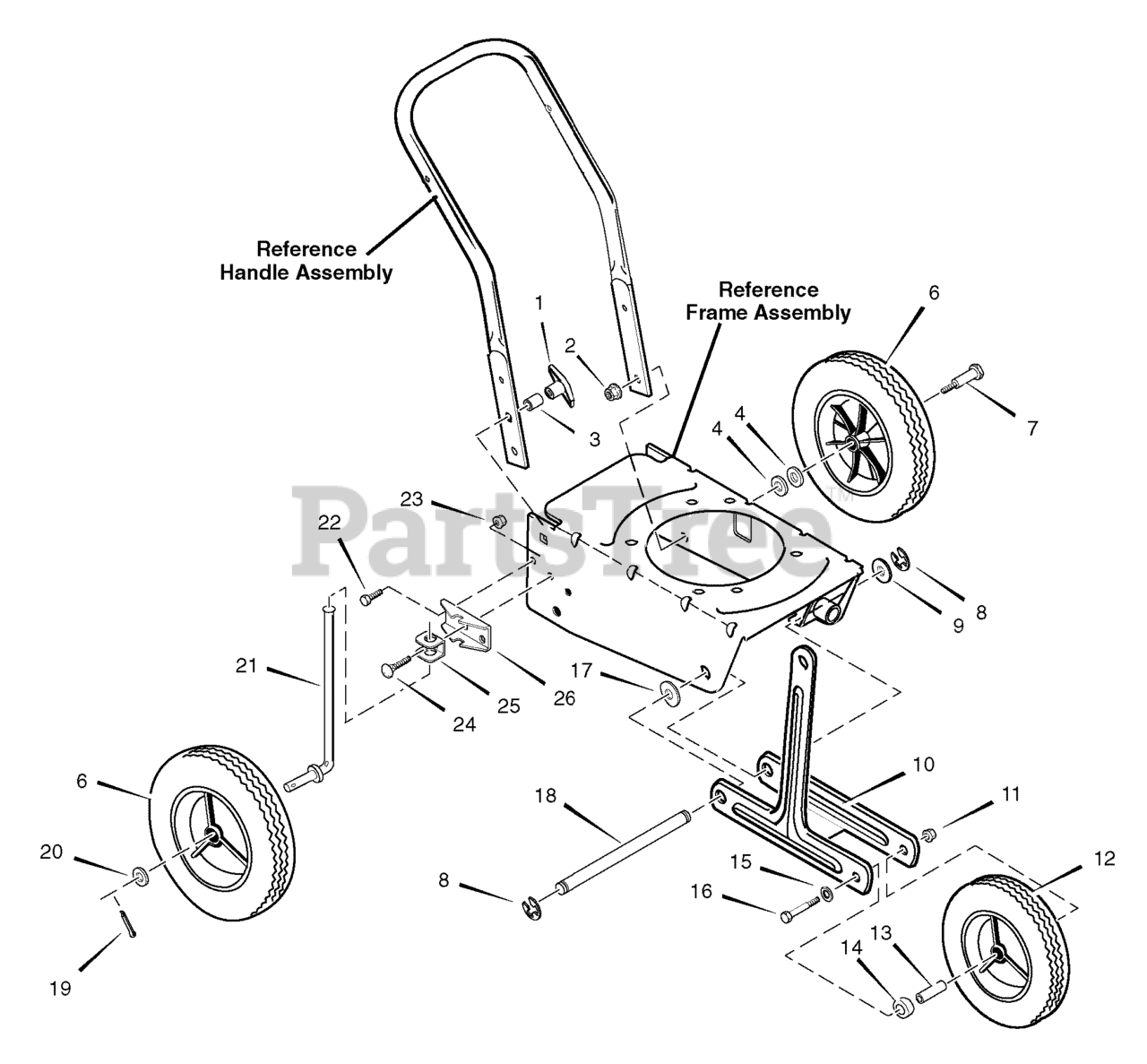

Wheel Assembly Parts Diagram

  • Title

1

Murray 071294MA

KNOB, Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

2

Murray 015X68MA

LOCKNUT, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

3

Murray 45222MA

SPACER, Sleeve

$4.49

$

Usually ships in 2-12 days

0

4

Murray 845MA

WASHER
(Superseded to 17X168ZMA)

$6.49

$

Usually ships in 2-12 days

0

6

Murray 336545MA

TIRE & RIM

$33.99

$

Usually ships in 2-12 days

0

7

Murray 0009X6MA

BOLT, Shoulder

$

$

Currently unavailable

8

Murray 011X16MA

Ring, Ret E.

$3.99

$

Usually ships in 2-12 days

0

9

Murray 417098MA

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

10

Murray 1701050E701MA

ARM, Front Wheel

$

$

Not available

11

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 336546MA

TIRE & RIM

$

$

Not available

13

Murray 1701052MA

SPACER, Sleeve

$15.99

$

Usually ships in 2-12 days

0

14

Murray 1701054MA

WASHER, Nylon

$24.99

$

Usually ships in 2-12 days

0

15

Murray 120393MA

WASHER, Flat

$3.99

$

In Stock, only 4 left!

0

16

Murray 180091MA

SCREW

$3.49

$

Usually ships in 2-12 days

0

17

Murray 0020X3MA

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0

18

Murray 740091MA

ROD, Axle Front

$14.99

$

Usually ships in 2-12 days

0

19

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Murray 017X91MA

WASHER

$5.49

$

In Stock, Qty 11

0

21

Murray 310896MA

ROD, Wheel Support

$

$

Not available

22

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

23

Murray 1498MA

NUT, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

24

Murray 126380MA

BOLT, 5/16-18x2.00

$3.99

$

Usually ships in 2-12 days

0

25

Murray 8082MA

CLEVIS

$26.99

$

In Stock, only 1 left!

0

26

Murray 6842MA

BRACKET, Curb-Hop

$7.99

$

In Stock, only 1 left!

0
