536.772350 (77235000 NB) - Craftsman Lawn Edger (2007) (Sears) Handle Assembly Parts Diagram

Lawn Edger

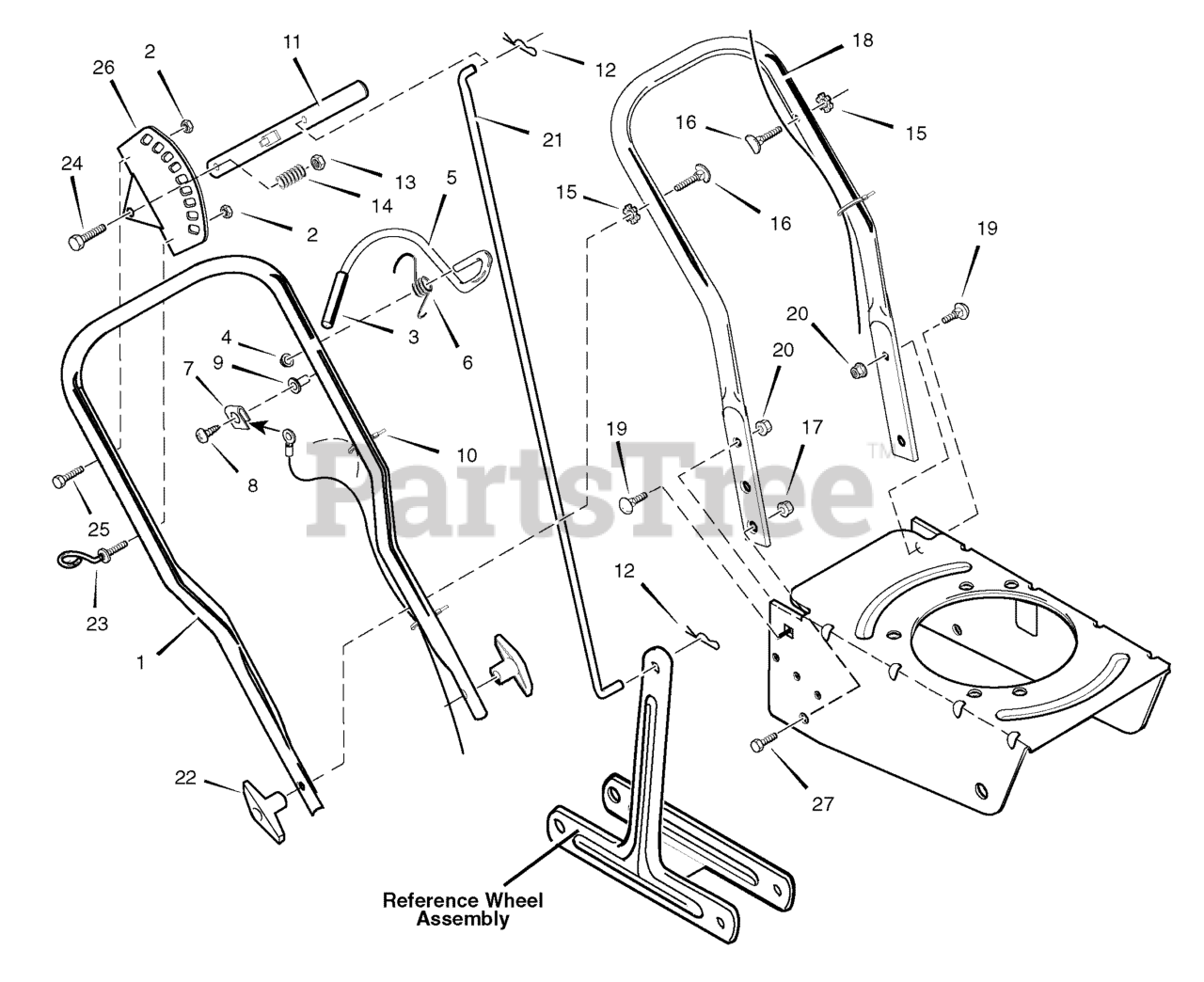

Handle Assembly Parts Diagram

  • Title

1

Murray 740142E701MA

HANDLE, Upper

$100.99

$

Usually ships in 2-12 days

0

2

Murray 782585MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

3

Murray 339489MA

CAP, Operator Control

$4.49

$

Usually ships in 2-12 days

0

4

Murray 314276MA

NUT, Push On

$3.99

$

Usually ships in 2-12 days

0

5

Murray 337744MA

BAIL, Operator Control

$28.99

$

Usually ships in 2-12 days

0

6

Murray 337775MA

SPRING, Torsion

$

$

Not available

7

Murray 340162MA

CLIP, Grounding

$3.99

$

Usually ships in 2-12 days

0

8

Murray 57796MA

SCREW, #6x.50

$3.49

$

Usually ships in 2-12 days

0

9

Murray 339229MA

INSULATOR, Operator Control

$3.99

$

Usually ships in 2-12 days

0

10

Murray 071372MA

CABLE TIE

$4.49

$

In Stock, only 1 left!

0

11

Murray 1701062E701MA

HANDLE, Depth

$

$

Not available

12

Murray 36368MA

HAIR PIN

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X43MA

NUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

14

Murray 25644MA

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

15

Murray 138485MA

WASHER

$4.99

$

Usually ships in 2-12 days

0

16

Murray 315288MA

BOLT, 5/16-18 x .75

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1498MA

NUT, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

18

Murray 1701051E701MA

HANDLE, LOWER

$125.99

$

Usually ships in 2-12 days

0

19

Murray 711558MA

BOLT, 5/16-18 x .75

$3.49

$

Usually ships in 2-12 days

0

20

Murray 015X79MA

NUT 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

21

Murray 1701064E701MA

ROD, Control

$33.99

$

Usually ships in 2-12 days

0

22

Murray 071495MA

WING KNOB 5/16-18

$4.99

$

In Stock, only 3 left!

0

23

Murray 672510MA

ROPE GUIDE

$5.99

$

Usually ships in 2-12 days

0

24

Murray 180081MA

SCREW

$3.49

$

Usually ships in 2-12 days

0

25

Murray 180024MA

SCREW, 1/4-20 x 1.25
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

26

Murray 1701063E701MA

BRACKET, Adjustment Quadrant

$25.99

$

Usually ships in 2-12 days

0

27

Murray 126380MA

BOLT, 5/16-18 x 2

$3.99

$

Usually ships in 2-12 days

0
