536.772342 - Craftsman Lawn Edger (2005) (Sears) Height Adjustment Parts Diagram

Lawn Edger

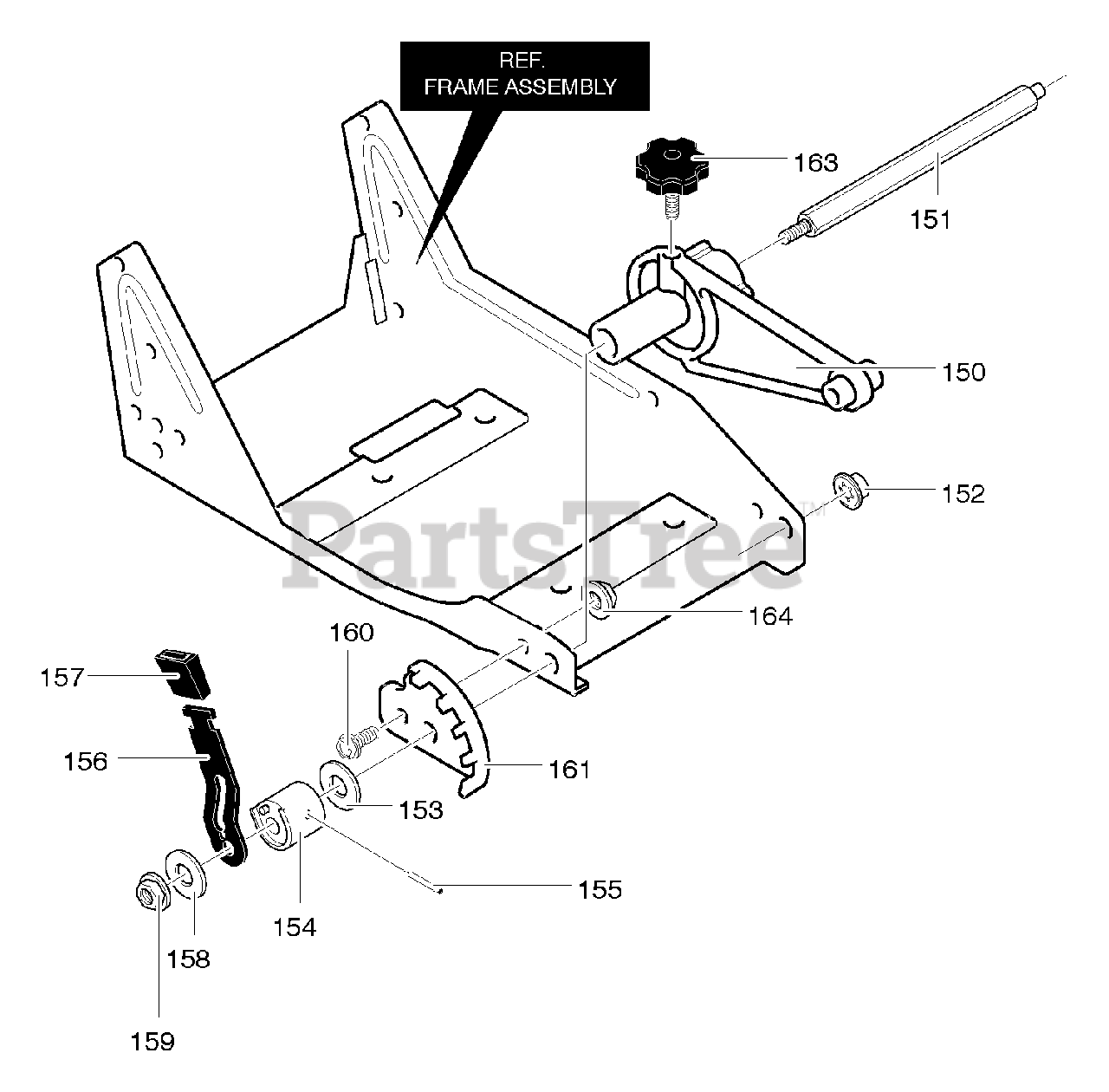

Height Adjustment Parts Diagram

  • Title

150

Murray 339299E201MA

Front Wheel Arm
(Superseded to 339299E701MA)

$79.99

$

In Stock, only 1 left!

0

151

Murray 740132MA

Front Curb Hopper

$52.99

$

Usually ships in 2-12 days

0

152

Murray 338614MA

Pushnut, Washer

$4.99

$

Usually ships in 2-12 days

0

153

Murray 325892MA

Plastic Washer

$4.99

$

Usually ships in 2-12 days

0

154

Murray 331421MA

Spacer, Height Adjust

$29.99

$

Usually ships in 2-12 days

0

155

Murray 0032X81

Pin, Spring

$

$

Currently unavailable

156

Murray 331419MA

Lever, Height Adjust

$10.99

$

Usually ships in 2-12 days

0

157

Murray 20252MA

Knob, Rectangle

$6.49

$

Usually ships in 2-12 days

0

158

Murray 22265MA

Flatwasher

$4.99

$

Usually ships in 2-12 days

0

159

Murray 45905MA

Nut

$4.49

$

Usually ships in 2-12 days

0

160

Murray 51333

Screw, 5/16-18 x 0.63

$3.99

$

Usually ships in 2-12 days

0

161

Murray 331394E201

Plate, Height Adjust

$6.99

$

Usually ships in 2-12 days

0

163

Murray 339388MA

Knob, Molded

$13.99

$

Usually ships in 2-12 days

0

164

Murray 0015X88

Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0
