536.772342 - Craftsman Lawn Edger (2005) (Sears) Engine & Frame Assembly Parts Diagram

Lawn Edger

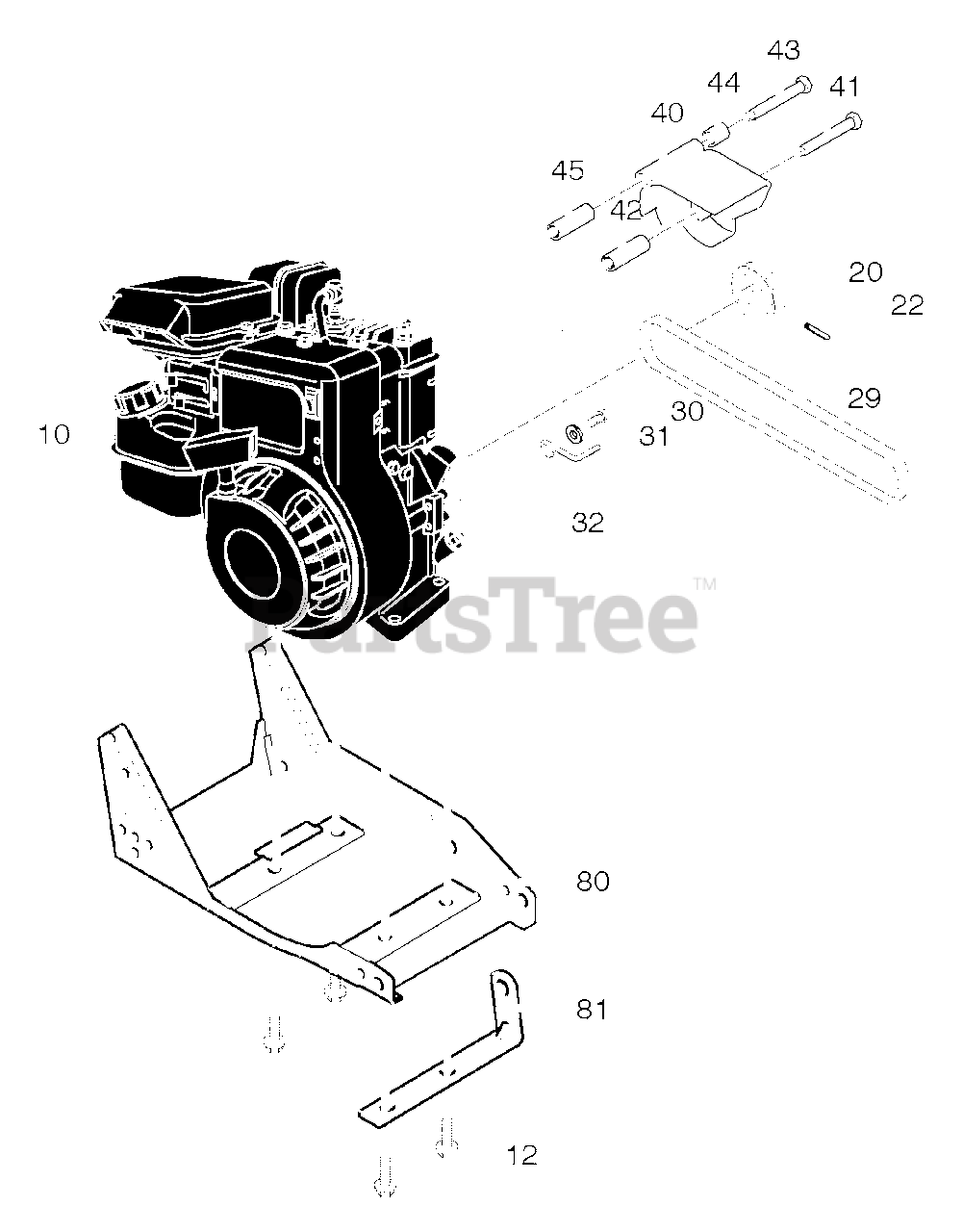

Engine & Frame Assembly Parts Diagram

  • Title

10

4 HP 095312-0266-E1

Note: (See Engine pages)

$

$

Not available

--

Murray 1701036

Plate, Engine Spacer *
(Superseded to 1701036SM)

Note: (Part Not Shown - 2 Required)

$891.99

$

Usually ships in 2-12 days

0

12

Murray 0025X10

Screw, 3/8-16 x 1.50

$5.99

$

Usually ships in 2-12 days

0

20

Murray 1701015

Pulley

$

$

Currently unavailable

22

Murray 120580

Screw, Set

$

$

Not available

29

Murray 32668MA

Belt, 4L 32.60"

$19.99

$

In Stock, only 3 left!

0

30

Murray 578733MA

Screw 5/16-24x1.00

$3.99

$

Usually ships in 2-12 days

0

31

Murray 45602MA

Flat washer

$3.99

$

Usually ships in 2-12 days

0

32

Murray 51600MA

Guide, Belt

$10.99

$

Usually ships in 2-12 days

0

40

Murray 331281E201

Cover, Engine Pulley

$

$

Currently unavailable

41

Murray 181624MA

Screw, 5/16-24 x 3.00

$4.49

$

Usually ships in 2-12 days

0

42

Murray 315095MA

Spacer, Sleeve

$2.49

$

Usually ships in 2-12 days

0

43

Murray 173030

Screw, 5/16-24 x 3.75

$

$

Not available

44

Murray 308237MA

Spacer

$4.49

$

Usually ships in 2-12 days

0

45

Murray 315095MA

Spacer, Sleeve

$2.49

$

Usually ships in 2-12 days

0

80

Murray 1701038E201

Assembly, Frame

$

$

Currently unavailable

81

Murray 308154E201

Strap

$12.99

$

Usually ships in 2-12 days

0

--

Murray F-051101L

Instruction Manual

$

$

Currently unavailable
