536.772321 - Craftsman Lawn Edger (2006) (Sears) Wheel Assembly Parts Diagram

Lawn Edger

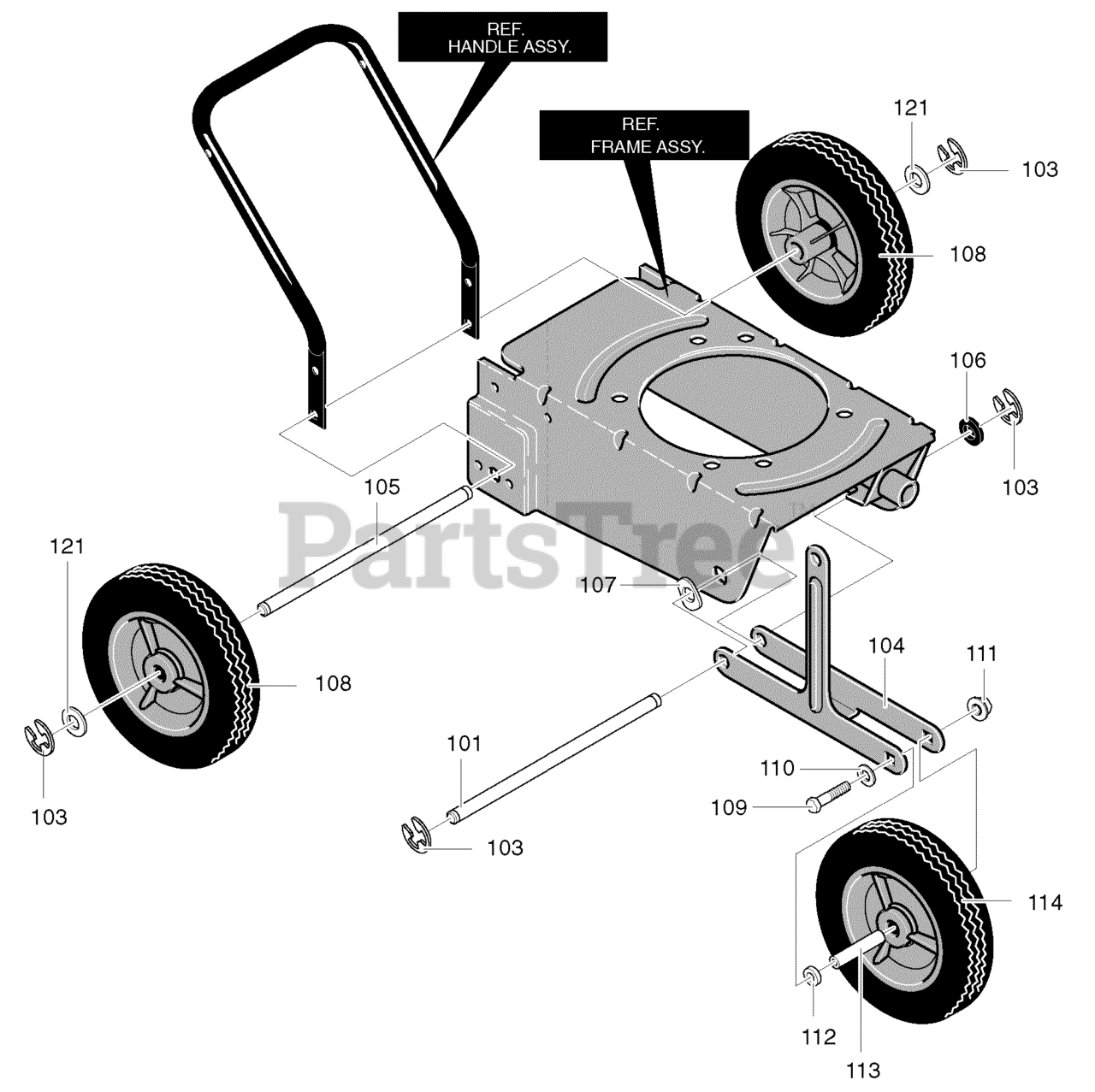

Wheel Assembly Parts Diagram

  • Title

101

Murray 740091

Rod, Axle Front

$14.99

$

Usually ships in 2-12 days

0

103

Murray 011X16

Ring, Ret E.

$3.99

$

Usually ships in 2-12 days

0

104

Murray 740126E601

Arm, Front Wheel

$16.99

$

Usually ships in 2-12 days

0

105

Murray 740095

Rod, Axle R.

$6.49

$

Usually ships in 2-12 days

0

106

Murray 417098

Flat washer

$3.99

$

Usually ships in 2-12 days

0

107

Murray 0020X3

Spring Washer

$4.49

$

Usually ships in 2-12 days

0

108

Murray 339079

Tire & Rim

$

$

Not available

109

Murray 180091

Screw

$

$

Not available

110

Murray 120393

Flat washer

$

$

Not available

111

Murray 015X88

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

112

Murray 711008

Washer, Nylon

$

$

Not available

113

Murray 740046

Spacer, Sleeve

$

$

Not available

114

Murray 339079

Tire & Rim

$

$

Not available

121

Murray 017X91

Flat washer
(Superseded to 017X91MA)

$5.49

$

In Stock, Qty 11

0
