536.270320 - Craftsman 30" Rear-Engine Riding Mower (2006) (Sears) Mower Housing Parts Diagram

30" Rear-Engine Riding Mower

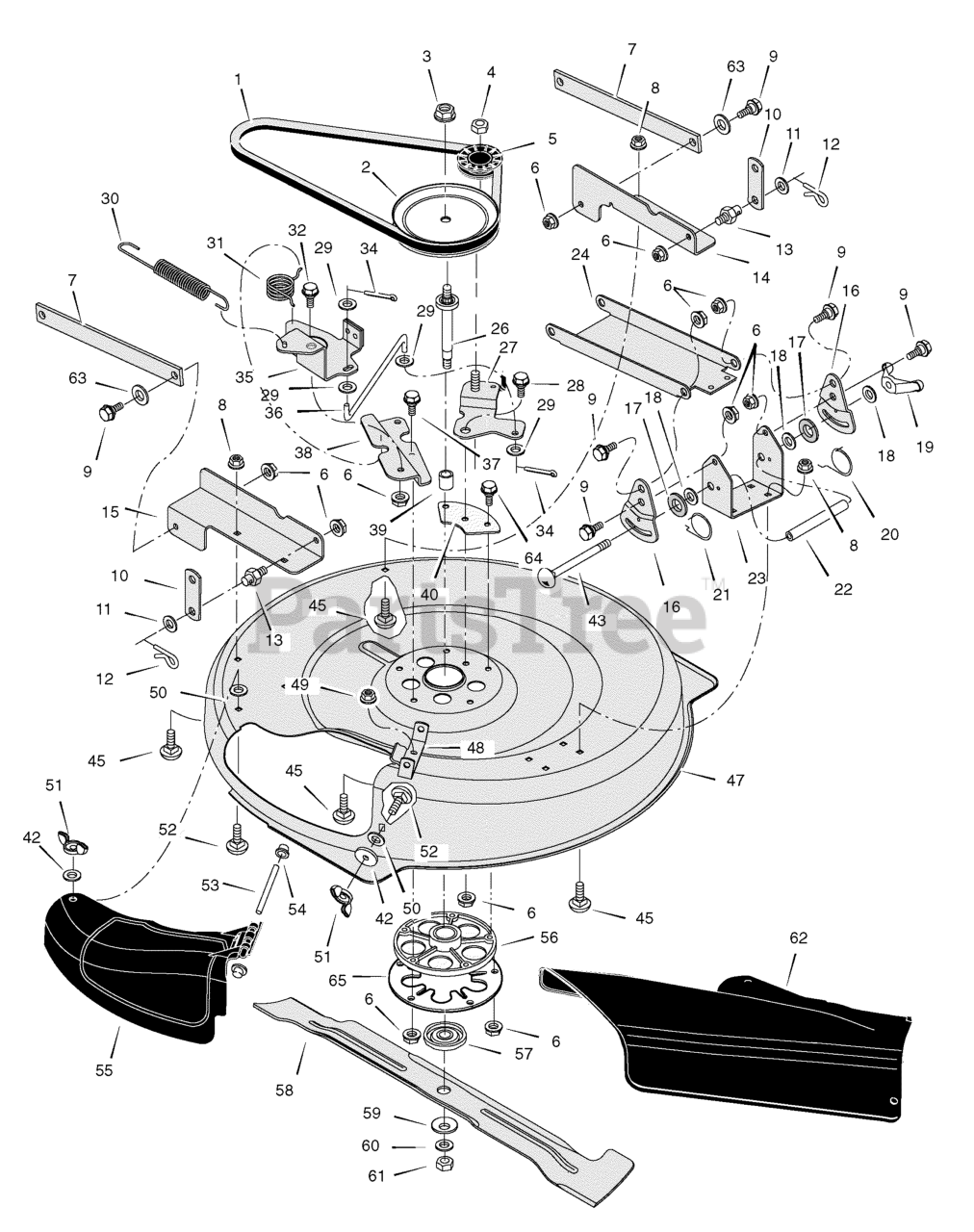

Mower Housing Parts Diagram

  • Title
1

Murray 37X111

Belt, Blade Drive

$25.99

$

In Stock, only 1 left!

0

2

Murray 1401092

Pulley, Input

$57.99

$

Usually ships in 2-12 days

0

3

Murray 15X140

Locknut

$9.99

$

In Stock, Qty 7

0

4

Murray 015X98

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 1401252

Pulley, Idler
(Superseded to 1401252MA)

$

$

Not available

6

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 1401031E701

Arm, Rear

$16.99

$

Usually ships in 2-12 days

0

8

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

9

Murray 009X58

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

10

Murray 1401033E701

Link, Lift

$24.99

$

Usually ships in 2-12 days

0

11

Murray 17X102

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

12

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 094067

Pin, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

14

Murray 1401047E701

Bracket, Left Rear

$25.99

$

Usually ships in 2-12 days

0

15

Murray 1401296E701

Bracket, Right Rear

$24.99

$

Usually ships in 2-12 days

0

16

Murray 1401038E701

Plate, Adjustment

$5.99

$

In Stock, only 4 left!

0

17

Murray 094137

Pad, Friction

$6.99

$

In Stock, Qty 8

0

18

Murray 017X45

Washer
(Superseded to 017X45MA)

$

$

Not available

19

Murray 095004

Wingnut

$

$

Not available

20

Murray 166X43

Spring, Left Torsion
(Superseded to 166X43MA)

$4.99

$

In Stock, only 2 left!

0

21

Murray 166X42

Spring, Right Torsion
(Superseded to 166X42MA)

$4.99

$

In Stock, Qty 8

0

22

Murray 1401095

Tube, Spacer

$

$

Not available

23

Murray 1401037E701

Bracket, Deck

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1401040E701

Hanger, Front

$48.99

$

Usually ships in 2-12 days

0

26

Murray 1401065

Shaft, Splined

$20.99

$

Usually ships in 2-12 days

0

27

Murray 1401258E701

Arm Assembly , Idler

$119.99

$

Usually ships in 2-12 days

0

28

Murray 009X39

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

29

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 165X157

Spring, Extension

$11.99

$

Usually ships in 2-12 days

0

31

Murray 166X46

Spring, Torsion

$5.99

$

Usually ships in 2-12 days

0

32

Murray 009X42

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

34

Murray 030X20

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

35

Murray 1401185E701

Arm Assembly, Brake

$

$

Not available

36

Murray 1401119

Link, Idler Arm

$25.99

$

In Stock, only 1 left!

0

37

Murray 0025X7

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

38

Murray 1401052E701

Bracket, Brake Mounting

$28.99

$

Usually ships in 2-12 days

0

39

Murray 1401094

Spacer, Jackshaft

$4.99

$

Usually ships in 2-12 days

0

40

Murray 1401259 Z

Plate, Idler Mounting

$

$

Currently unavailable

42

Murray 019X45

Washer

$5.49

$

In Stock, only 2 left!

0

43

Murray 002X94

Bolt, Carriage

$5.49

$

Usually ships in 2-12 days

0

45

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

47

Murray 1401236E701

Housing, Blade

$

$

Not available

48

Murray 1401106E701

Hinge, Mulching Cover

$6.99

$

In Stock, only 1 left!

0

49

Murray 015X88

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 028X76

Nut, Speed
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

51

Murray 014X86

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 5

0

52

Murray 002X74

Bolt, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

53

Murray 091767 Z

Rod, Chute Deflector

$

$

Currently unavailable

54

Murray 028X23

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

55

Murray 1401080

Cover, Mulch

$58.99

$

Usually ships in 2-12 days

0

56

Murray 094305

Mandrel Housing

$112.99

$

Usually ships in 2-12 days

0

57

Murray 1001035

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

$

$

Not available

59

Murray 17X166

Washer, Cup
(Superseded to 17X166MA)

$13.99

$

In Stock, Qty 18

0

60

Murray 17X165

Washer
(Superseded to 17X165MA)

$16.99

$

In Stock, only 4 left!

0

61

Murray 15X100

Nut, Blade Mount
(Superseded to 15X100MA)

$3.99

$

In Stock, Qty 10

0

62

Murray 1401081

Deflector, Chute

$114.99

$

Usually ships in 2-12 days

0

63

Murray 002X74

Bolt, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

64

$4.99

$

In Stock, only 3 left!

0

65

Murray 1001952

Plate, Jackshaft Support

$

$

Not available
