536.270300 - Craftsman 30" Rear-Engine Riding Mower (2005) (Sears) Motion Drive Parts Diagram

30" Rear-Engine Riding Mower

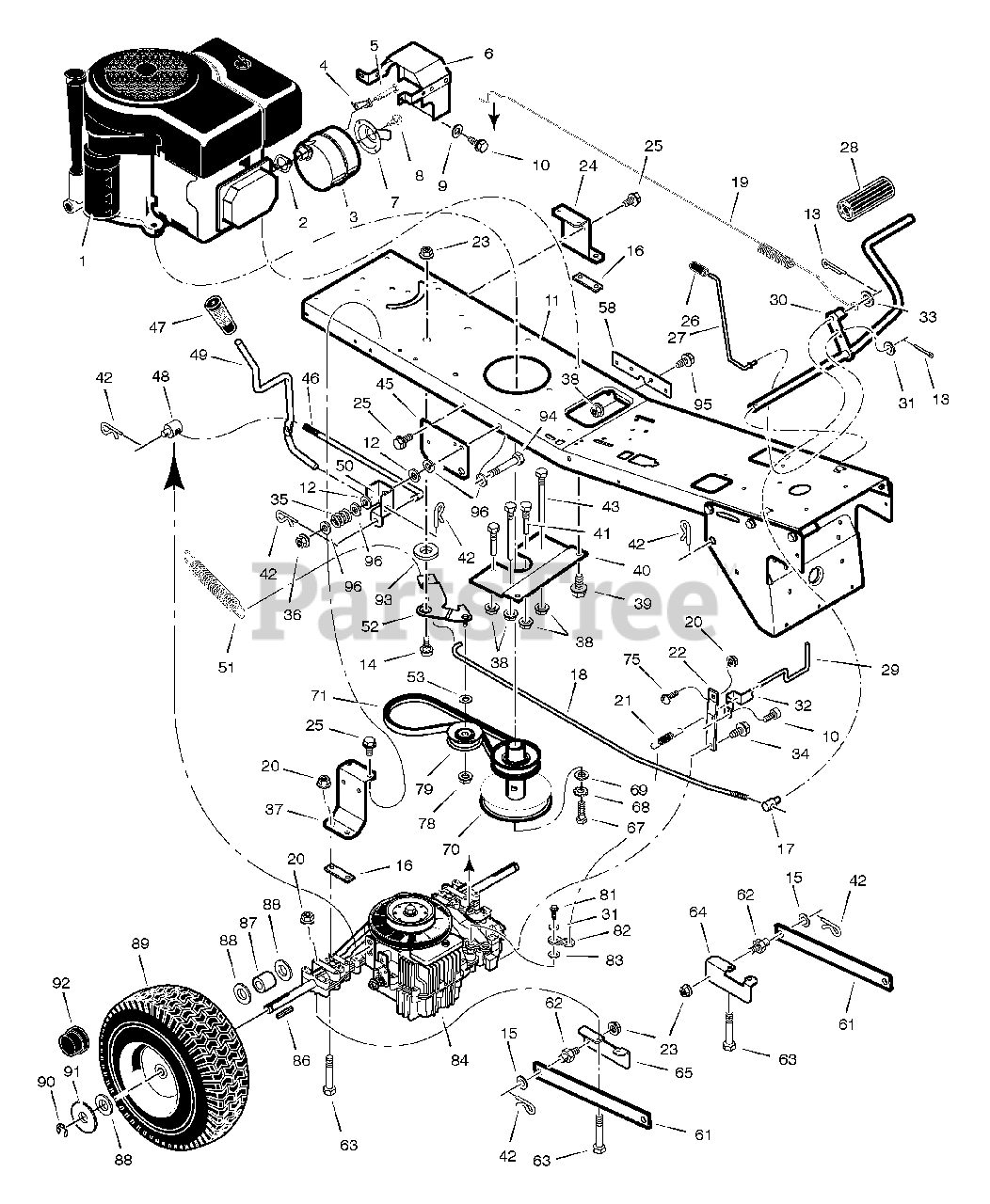

Motion Drive Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

3

Murray 091271

Muffler

$52.99

$

In Stock, only 1 left!

0

4

Murray 092378MA

Lock, Muffler Screw

$5.49

$

In Stock, Qty 9

0

5

Murray 01X134MA

Bolt, Hex

$10.99

$

Usually ships in 2-12 days

0

6

Murray 1401207

Shield, Heat

$

$

Not available

7

Murray 1401204

Tube, Exhaust

$95.99

$

Usually ships in 2-12 days

0

8

Murray 26X208MA

Screw

$3.99

$

Usually ships in 2-12 days

0

9

Murray 018X32MA

Washer, Lock

$3.49

$

Usually ships in 2-12 days

0

10

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

11

Murray 1401298E700

Frame

$

$

Currently unavailable

12

Murray 17X217MA

Washer

$4.99

$

Usually ships in 2-12 days

0

13

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

14

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

15

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

16

Murray 1401334 Z

Plate, Transaxle

$

$

Currently unavailable

17

Murray 094815ZMA

Nut, Adjusting

$21.99

$

Usually ships in 2-12 days

0

18

Murray 1401305

Rod, Clutch Hydro

$71.99

$

Usually ships in 2-12 days

0

19

Murray 165X165MA

Spring, Brake

$41.99

$

In Stock, only 1 left!

0

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 165X166MA

Spring, Roll Release

$15.99

$

Usually ships in 2-12 days

0

22

Murray 1401300

Bracket, Torque Strap

$

$

Currently unavailable

23

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Murray 1401268E701MA

Bracket, Left Transaxle

$38.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

Screw

$

$

Not available

26

Murray 1401337

Grip

$10.99

$

Usually ships in 2-12 days

0

27

Murray 1401112

Rod, Parking Brake

$9.49

$

Usually ships in 2-12 days

0

28

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

29

Murray 1401304 Z

Rod, Roll Release

$

$

Currently unavailable

30

Murray 1401127E701

Rod, Clutch/Brake

$95.99

$

Usually ships in 2-12 days

0

31

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Murray 1401303E701MA

Bracket, Roll Release

$28.99

$

In Stock, only 1 left!

0

33

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

34

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

35

Murray 164X39MA

Spring, Compression

$13.99

$

Usually ships in 2-12 days

0

36

Murray 15X119

Nut

$3.49

$

Usually ships in 2-12 days

0

37

Murray 1401042E701

Bracket, Right Transaxle

$33.99

$

Usually ships in 2-12 days

0

38

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

40

Murray 1401057E701

Plate, Belt Guide

$13.99

$

Usually ships in 2-12 days

0

41

Murray 1401105MA

Guide, Belt -Long

$5.49

$

In Stock, Qty 5

0

42

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

Murray 1401104

Guide, Belt -Short

$

$

Not available

45

Murray 1401032E701

Bracket, Lift Pivot

$26.99

$

Usually ships in 2-12 days

0

46

Murray 1401307 Z

Rod, Shift Link

$

$

Currently unavailable

47

Murray 094497

Grip
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

48

Murray 1401148

Nut, Adjusting

$

$

Not available

49

Murray 1401328MA

Lever, Shift

$40.99

$

Usually ships in 2-12 days

0

50

Murray 1401340E701

Bracket, Pivot

$

$

Currently unavailable

51

Murray 165X147MA

Spring - Variator Drive

$15.99

$

Usually ships in 2-12 days

0

52

Murray 1401312MA

Arm, Idler

$40.99

$

In Stock, only 1 left!

0

53

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

58

Murray 1401260E701

Plate, Reinforcement

$

$

Not available

61

Murray 1401031E701MA

Arm, Rear

$16.99

$

Usually ships in 2-12 days

0

62

Murray 094067MA

Pin, Threaded
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

63

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

64

Murray 1401301E701MA

Bracket, Left Rear Hanger

$19.99

$

Usually ships in 2-12 days

0

65

Murray 1401302E701

Bracket, Right Rear Hanger

$19.99

$

Usually ships in 2-12 days

0

67

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

68

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

69

Murray 17X170MA

Washer

$

$

Not available

70

Murray 1401308MA

Pulley Stack

$204.99

$

In Stock, only 1 left!

0

71

Murray 37X129MA

Belt, Drive

$22.99

$

In Stock, Qty 5

0

75

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

78

Murray 015X98MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

79

Murray 1401309MA

Pulley, Idler

$

$

Not available

81

Murray 06X105MA

Cap Screw

$3.99

$

In Stock, only 1 left!

0

82

Murray 1001086ZMA

Arm, Disconnect

$34.99

$

Usually ships in 2-12 days

0

83

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

84

Transaxle

$

$

Not available

86

Murray 056534MA

Key, Square

$4.99

$

In Stock, only 1 left!

0

87

Murray 1401103MA

SPACER, Rear Wheel

$10.99

$

Usually ships in 2-12 days

0

88

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

89

Murray 1401120MA

Wheel & Tire Assembly

$152.99

$

Usually ships in 2-12 days

0

--

Tire (ONLY)

$

$

Not available

--

Tube (ONLY)

$

$

Not available

90

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 17

0

91

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 5

0

92

Murray 094618MA

Hub Cap

$5.99

$

In Stock, only 4 left!

0

93

Murray 17X174MA

Washer
(Superseded to 17X174ZMA)

$6.49

$

Usually ships in 2-12 days

0

94

Murray 01X143MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

95

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

96

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0
