535 LST - Husqvarna Brush Cutter BEVEL GEAR Parts Diagram

Brush Cutter

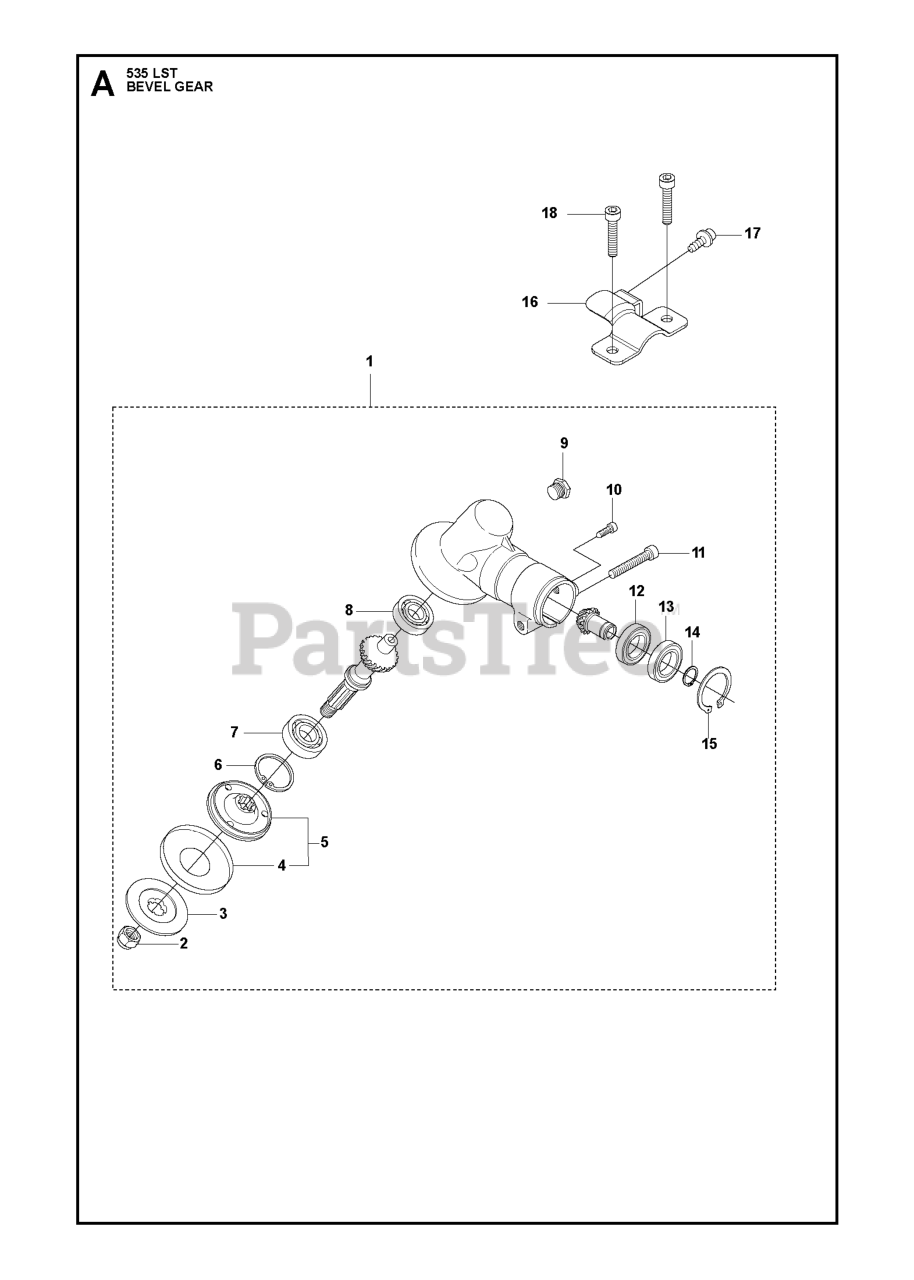

BEVEL GEAR Parts Diagram

  • Title

14

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

8

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 3 left!

0

1

Husqvarna 536503801

BEVEL GEAR ASSY

$113.99

$

Usually ships in 3-10 days

0

18

Husqvarna 576831001

SCREW IHSCM

$7.49

$

In Stock, only 4 left!

0

9

Husqvarna 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0

2

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 537234901

DRIVE DISC

$40.99

$

In Stock, only 1 left!

0

3

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available

17

Husqvarna 503200712

SCREW

$7.49

$

In Stock, Qty 15

0

11

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

16

Husqvarna 581598001

BRACKET SHIELD

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 738219902

BEARING

$29.99

$

In Stock, only 1 left!

0

4

Husqvarna 537292601

WASHER
(Superseded to 537234901)

$40.99

$

In Stock, only 1 left!

0

7

Husqvarna 503252401

BEARING
(Superseded to 525831801)

$22.99

$

In Stock, Qty 6

0

12

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

10

Husqvarna 503201412

SCREW

$3.99

$

In Stock, Qty 11

0
