535 iXP - Husqvarna Chainsaw CLUTCH Parts Diagram

Chainsaw

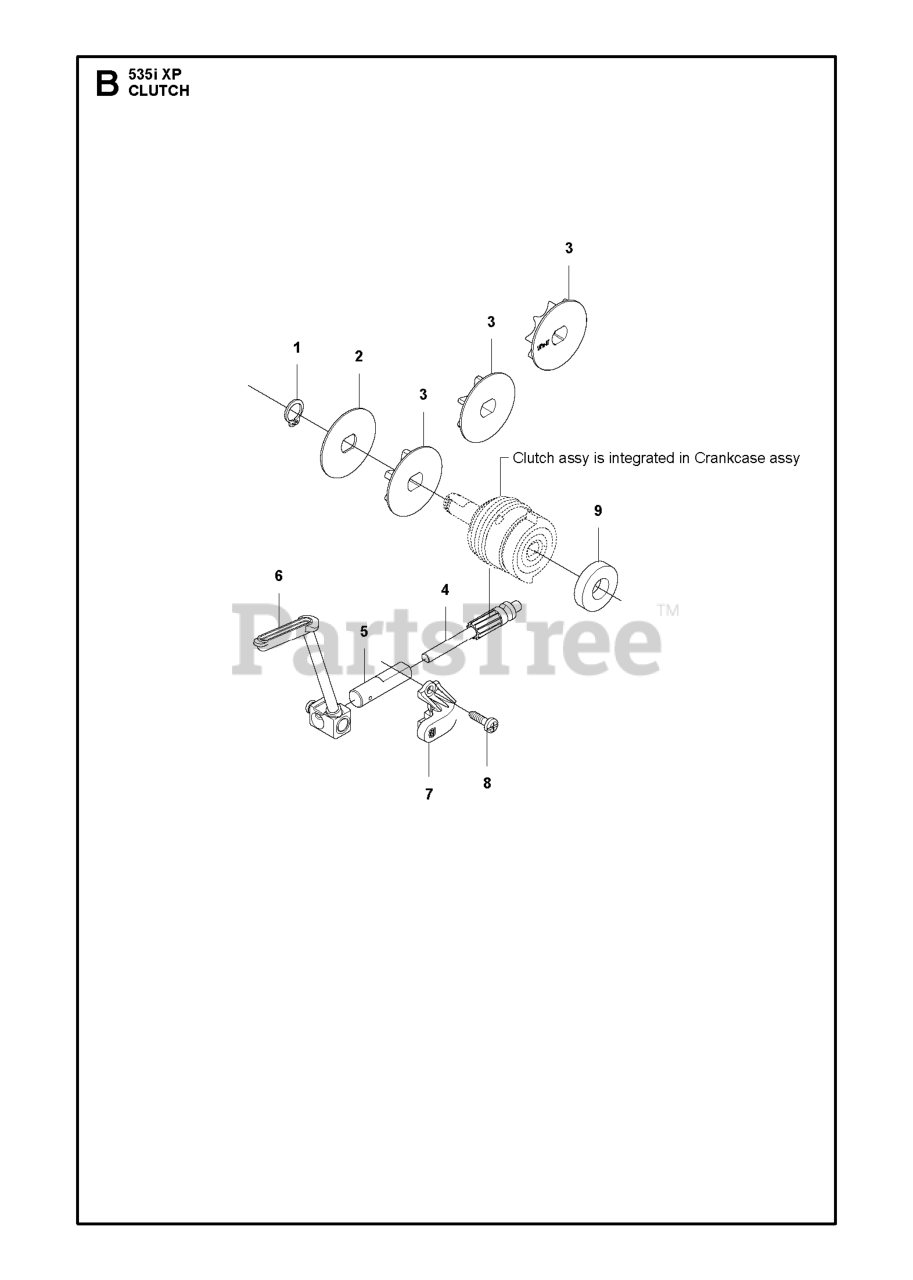

CLUTCH Parts Diagram

  • Title

9

Husqvarna 580760601

DISTANCE

Note: Not needed with Clutch assy, 585 57 64-01

$

$

Not available

4

Husqvarna 540057901

PISTON PUMP

$17.99

$

In Stock, Qty 20+

0

1

Husqvarna 735311200

RETAINING RING SGA 10

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 535557401

SPUR SPROCKET 1/4IN MINI 9T SP

Note: 1/4"mini - 9T - SP11G

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577272501

OIL HOSE

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 594035201

Sprockets

Note: .325"mini - 7T

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 590087701

SPUR SPROCKET 3/8" - 6T

Note: 3/8"mini - 6T

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 537154801

PUMP CYLINDER

$11.99

$

In Stock, Qty 10

0

2

Husqvarna 577271501

WASHER

$6.49

$

In Stock, only 3 left!

0

3

Husqvarna 579534501

SPUR SPROCKET 1/4" 8T

Note: "1/4"" - 8T"

$20.99

$

In Stock, only 1 left!

0

7

Husqvarna 579246901

BRACKET

$4.99

$

Usually ships in 3-10 days

0
