535 AWD - Husqvarna Automower Robotic Lawn Mower (2020) COVER Parts Diagram

Automower Robotic Lawn Mower

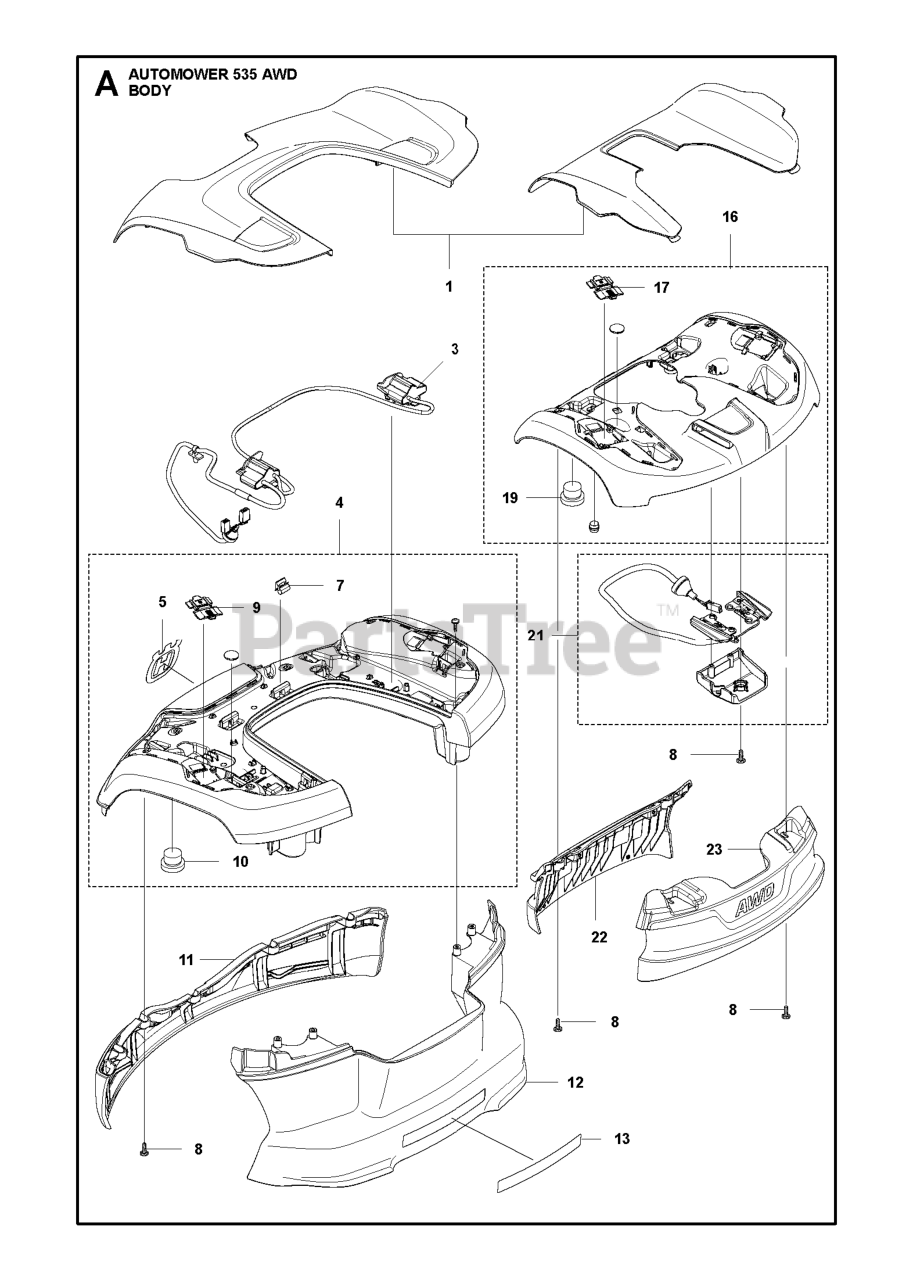

COVER Parts Diagram

  • Title

17

Husqvarna 591494601

Holders

Note: Wheel Brusch

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 591467901

Bumpers

Note: Rear Tail

$34.99

$

Usually ships in 3-10 days

0

1

Husqvarna 596300202

NEEDS DESCRIPTION

Note: Top Cover Orange

$

$

Not available

8

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 586359701

LABEL WARNING P15

Note: Warning

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 597165601

Chargers

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 591467801

Bumpers

Note: Rear Head

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580526801

CAP SNAPLOC

Note: Snaploc

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 591467501

Bumpers

Note: Front tail

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 591494601

Holders

Note: Wheel Brush

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 593778401

Clips

Note: Body connection

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 588596704

Wires

Note: US Sensor

$284.99

$

Usually ships in 3-10 days

0

16

Husqvarna 597161901

Body

Note: Rear

$102.99

$

Usually ships in 3-10 days

0

1

Husqvarna 596300201

NEEDS DESCRIPTION
(Superseded to 596300210)

Note: Top Cover Grey

$113.99

$

Usually ships in 3-10 days

0

4

Husqvarna 597161801

Body

Note: Front

$170.99

$

Usually ships in 3-10 days

0

11

Husqvarna 591467401

Bumpers

Note: Front

$56.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580526801

CAP SNAPLOC

Note: Snaploc

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 587423502

Decals

Note: Husqvarna Crown

$11.99

$

Usually ships in 3-10 days

0
