535 (590-535-150) - Cub Cadet Tiller Attachment for ST Series (2001) Cultivator Assembly Parts Diagram

Tiller Attachment for ST Series

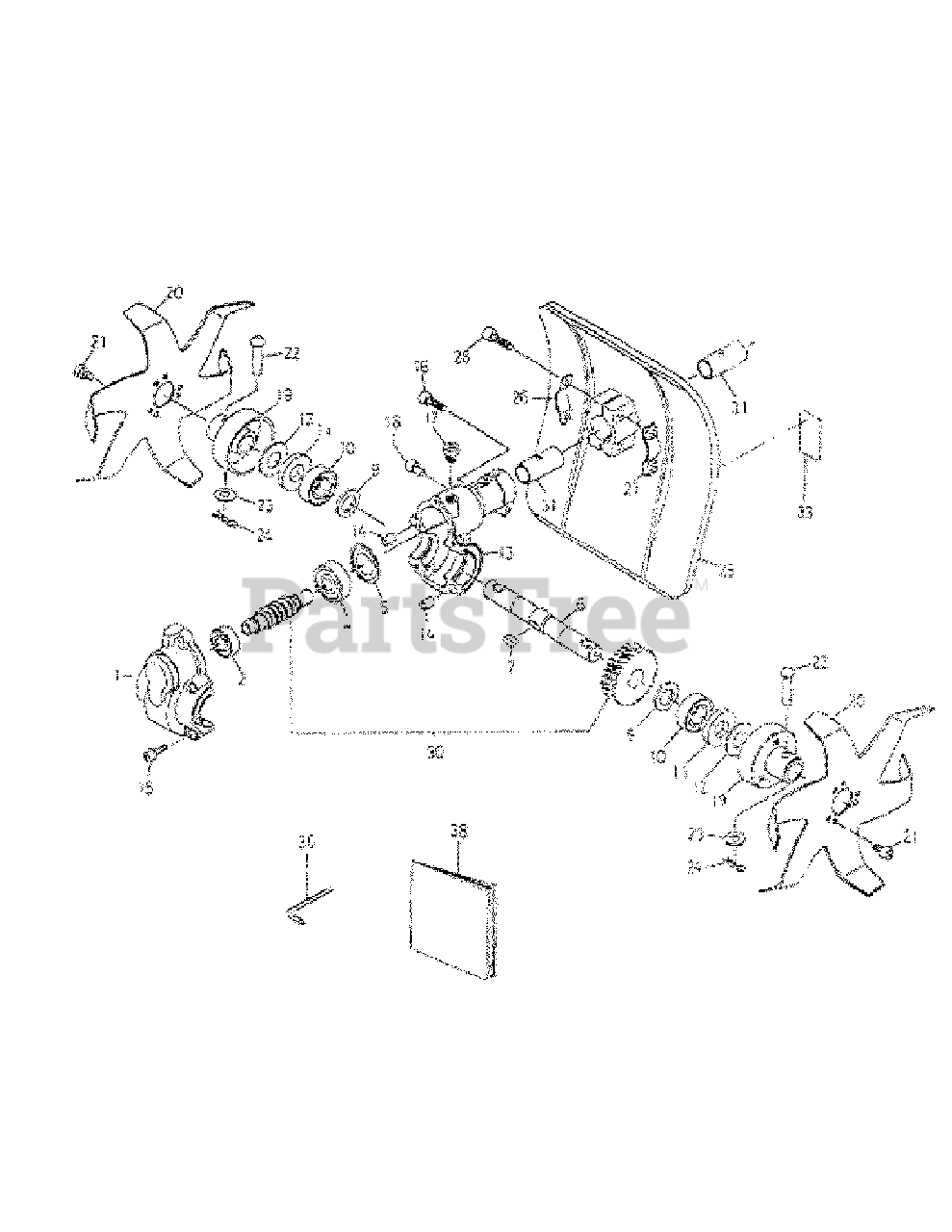

Cultivator Assembly Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet IM-040126001

Ball Bearing 6001zz

$

$

Not available

4

Cub Cadet IM-040126301

Ball Bearing 6301zz

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

10

Cub Cadet IM-040126003

Ball Bearing 6003zz

$

$

Not available

$

$

Not available

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Cub Cadet IM-010709010

Bolt, M5X25mm

$

$

Not available

16

Cub Cadet IM-720973183

Bolt, M6X18mm

$

$

Not available

$

$

Not available

18

Cub Cadet IM-720973175

Bolt M5X10mm

$

$

Not available

19

Cub Cadet IM-720573000

Holder, Rotor

$

$

Not available

$

$

Not available

21

$

$

Not available

$

$

Not available

23

$

$

Not available

$

$

Not available

25

$

$

Not available

$

$

Not available

$

$

Not available

28

$

$

Not available

30

Cub Cadet IM-720273430

Gear Assembly

$

$

Not available

$

$

Not available

33

Cub Cadet IM-720953110

Caution Plate

$

$

Not available

36

Cub Cadet IM-720983520

Wrench, Torx

Note: NLA

$

$

Not available

38

Cub Cadet IM-720940010

Instruction Book

Note: NLA

$

$

Currently unavailable
