5346 - Simplicity 24" Reel Mower Attachment 24" Lawn Mower (3697I06) Parts Diagram

24" Reel Mower Attachment

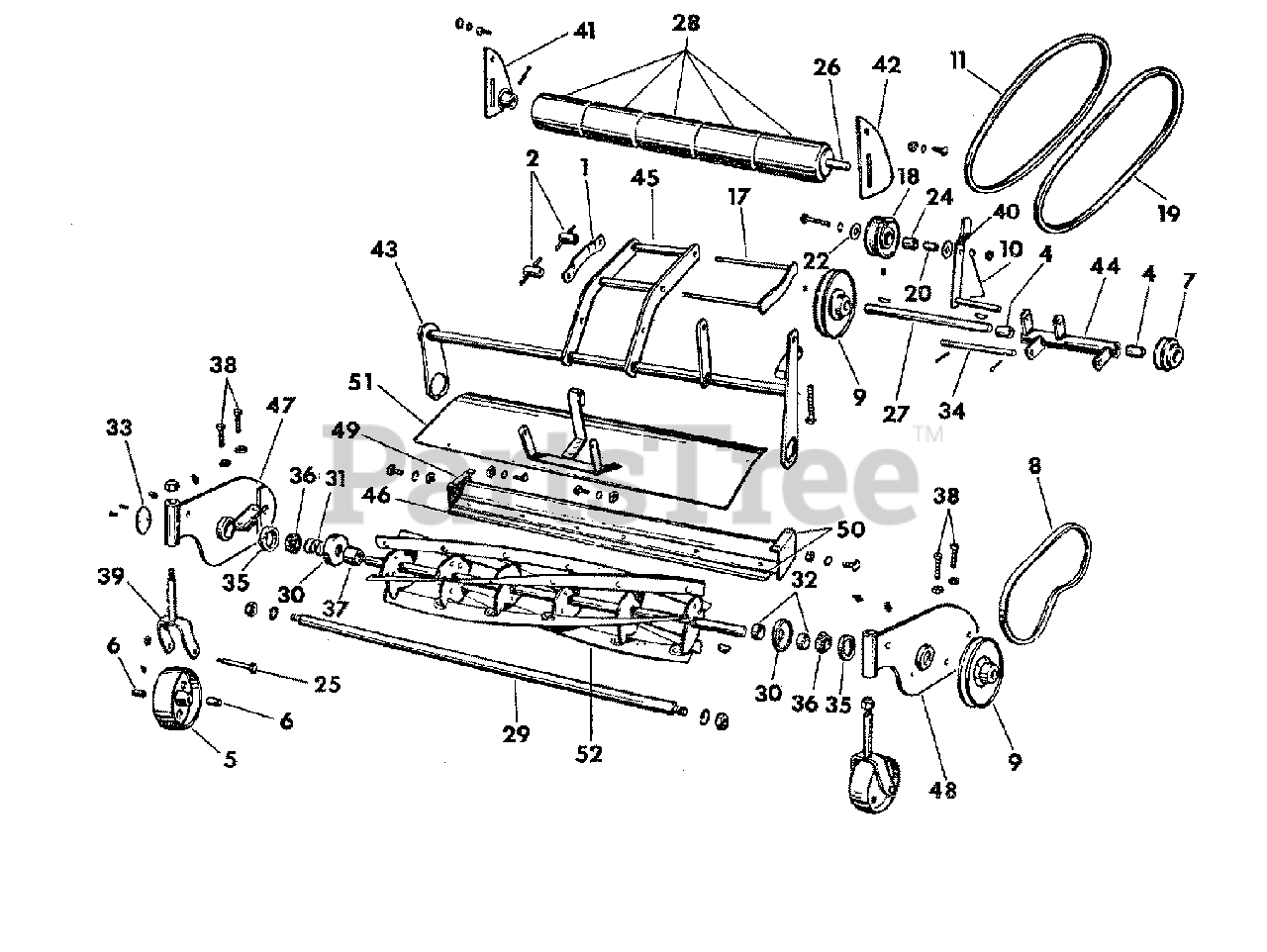

24" Lawn Mower (3697I06) Parts Diagram

  • Title

1

Simplicity 8161029

SIDE PLATE, Hitch

$

$

Not available

2

Simplicity 8161041

WING NUT, Complete

$0.99

$

Usually ships in 2-12 days

0

4

Simplicity 8161059

BUSHING, Bronze

$

$

Not available

5

Simplicity 8131502

CASTER WHEEL, w/ Bearing and Grease Fitting

$

$

Not available

6

Simplicity 8161115

CASTER WHEEL, Bearing

$

$

Not available

7

Simplicity 8161117

REEL, Driver Sheave

$

$

Not available

8

Simplicity 8161120

REEL, Drive Belt, 27" Circumference

$

$

Not available

9

Simplicity 8161123

COUNTER SHAFT & REEL SHEAVE

$

$

Not available

10

Simplicity 8161158

BELT, Holder

$

$

Not available

11

Simplicity 2158573SM

BELT, 31", 2 H.P. Only

$20.99

$

Usually ships in 2-12 days

0

17

Simplicity 8162501

CLAMP ASSEMBLY, Hitch

$

$

Not available

18

Simplicity 8261003

PULLEY, Idler

$

$

Not available

19

Simplicity 8161217

BELT, 36", 3 H.P. Only

$

$

Not available

20

Simplicity 8191020

INNER BEARING RACE

$

$

Not available

22

Simplicity 8191037

WASHER, Thrust

$

$

Not available

24

Simplicity 8191048

BEARING, Idler Pulley

$

$

Not available

25

Simplicity 8171020

SPINDLE, Caster Wheel

$

$

Not available

26

Simplicity 8171021

SHAFT, Roller

$

$

Not available

27

Simplicity 8171022

SHAFT, Transmission

$

$

Not available

28

Simplicity 8171023

ROLLER, Hard Wood

$

$

Not available

29

Simplicity 8171024

ROD, Spacer

$

$

Not available

30

Simplicity 8171025

COVER, Bearing

$

$

Not available

31

Simplicity 8171026

SPRING, Bearing

$

$

Not available

32

Simplicity 8171027

SPACER, Bearing, Short

$

$

Not available

33

Simplicity 8171028

CAP, Bearing

$

$

Not available

34

Simplicity 8171029

PIN, Hinge

$

$

Not available

35

Simplicity 8171030

CAP, Bearing, Timken

$

$

Not available

36

Simplicity 8171034

CONE, Bearing, Timken

$

$

Not available

37

Simplicity 8171032

SPACER, Bearing, Long

$

$

Not available

38

Simplicity 8171033

SCREW, Blade Adjusting

$

$

Not available

39

Simplicity 8171514

FORK ASSEMBLY, Caster

$

$

Not available

40

Simplicity 8171505

LEVER ASSEMBLY, Idler

$

$

Not available

41

Simplicity 8171506

BRACKET, Roller, R.H.

$

$

Not available

42

Simplicity 8171507

BRACKET, Roller, L.H.

$

$

Not available

43

Simplicity 8171508

ARM ASSEMBLY, Push, R.H.

$

$

Not available

44

Simplicity 8172502

BEARING BRACKET, w/ Bushings & Grease Fitting

$

$

Not available

45

Simplicity 8172503

ARM ASSEMBLY, Push, LH. Push Arm

$

$

Not available

46

BLADE

$

$

Not available

47

Simplicity 8173501

FRAME ASSEMBLY, Lawn Mower, R.H.

$

$

Not available

48

Simplicity 8173502

FRAME ASSEMBLY, Lawn Mower, L.H.

$

$

Not available

49

Simplicity 8173503

BAR ASSEMBLY, Cutter

$

$

Not available

50

BAR ASSEMBLY, Cutter, w/ Blade

$

$

Not available

51

Simplicity 8173505

GUARD ASSEMBLY, Grass

$

$

Not available

52

REEL ASSEMBLY, 24"

$

$

Not available
