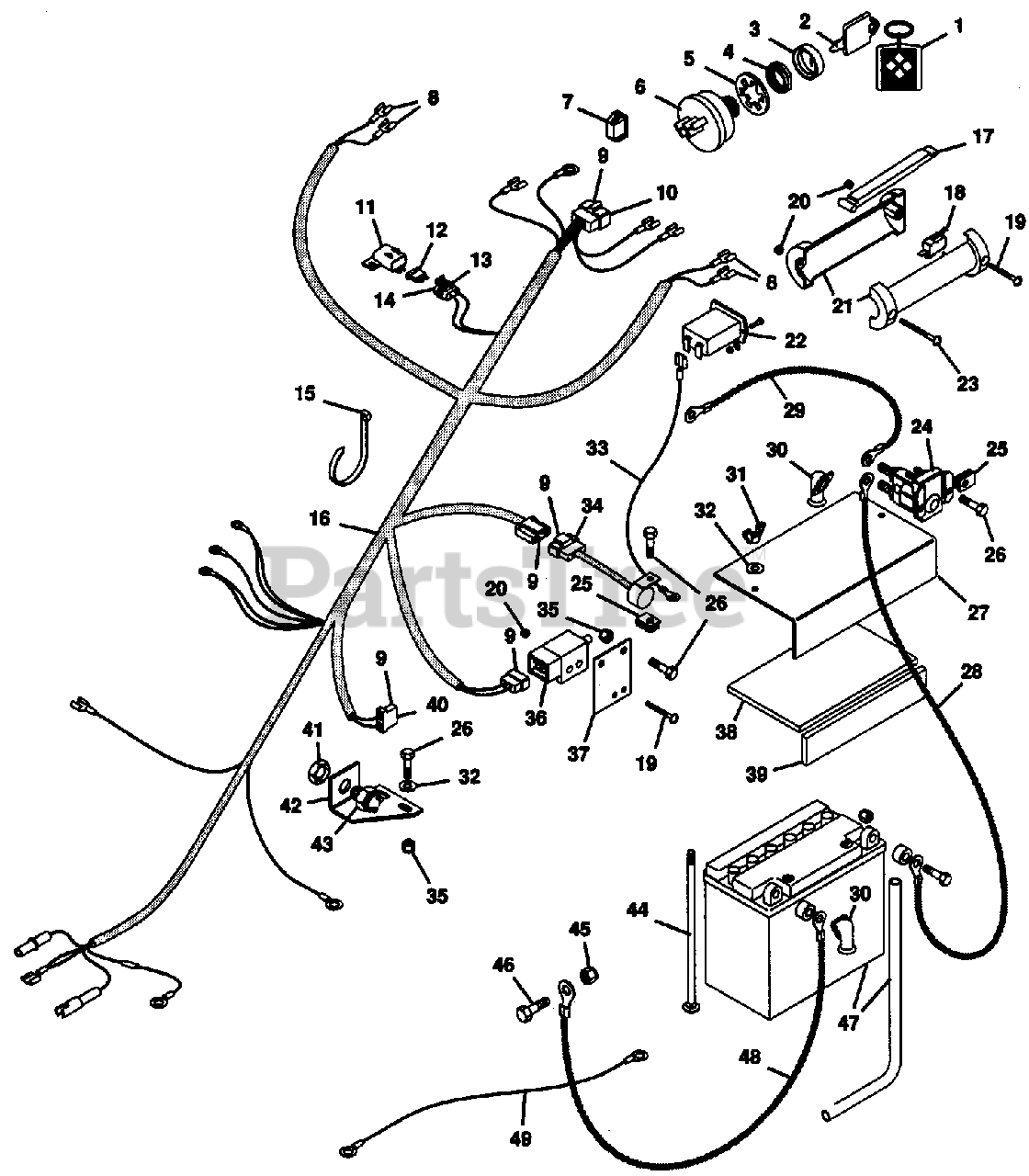

53272 - Gravely Pro 300 Walk-Behind Mower, 20hp Kohler ELECTRICAL SYSTEM Parts Diagram

Pro 300 Walk-Behind Mower, 20hp Kohler

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 045842

Chain, Key
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Key, Ignition Switch
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Boot, for 9/16 Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut, 5/8-32 for Switch
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 018586

Washer, Lock 5/8 Int. Th.
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 052855

Switch, Ignition w/Ground
(Superseded to 52709300)

$56.99

$

In Stock, Qty 6

0

7

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: (Used Only On Model(s): 53100).

$6.99

$

In Stock, only 1 left!

0

7

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: (Used Only On Model(s): 53271).

$6.99

$

In Stock, only 1 left!

0

8

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

9

Gravely 038059

Terminal
(Superseded to 08540001)

Note: (Used Only On Model(s): 53272).

$3.99

$

In Stock, Qty 5

0

9

Gravely 038059

Terminal
(Superseded to 08540001)

Note: (Used Only On Model(s): 53100).

$3.99

$

In Stock, Qty 5

0

9

Gravely 038059

Terminal
(Superseded to 08540001)

Note: (Used Only On Model(s): 53271).

$3.99

$

In Stock, Qty 5

0

10

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

11

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

12

Gravely 045037

Fuse, 25 Amp
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 045920

Assembly, Connector
(Superseded to 20822700)

$

$

Not available

14

Gravely 045923

Terminal, for 10-12 Ga. Wire
(Superseded to 20823001)

$

$

Not available

15

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 051568

Harness, Wiring
(Superseded to 08845500)

Note: (Used Only On Model(s): 53100).

$310.99

$

Usually ships in 4-12 days

0

16

Gravely 053090

Harness, Wiring
(Superseded to 08856000)

Note: (Used Only On Model(s): 53271).

$

$

Not available

16

Gravely 053036

Harness, Wiring
(Superseded to 08855601)

Note: (Used Only On Model(s): 53272).

$

$

Not available

17

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

18

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

19

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

20

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 053003

Handle
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

22

Gravely 038256

Hourmeter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

23

Gravely 159967

Screw, Mach. 10-24x1.50 PHDCR
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 045071

Switch, Magnetic
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

25

Gravely 011676

Nut, Speed 1/4-20
(Superseded to 07016800)

$

$

Not available

26

Gravely 180020

Bolt, Hex 1/4-20x.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 049294

Cover, Battery
(Superseded to 08835800)

$

$

Not available

28

Gravely 042129

Cable, Battery to Solenoid
(Superseded to 08816700)

Note: (Used Only On Model(s): 53100).

$

$

Not available

28

Gravely 042129

Cable, Battery to Solenoid
(Superseded to 08816700)

Note: (Used Only On Model(s): 53272).

$

$

Not available

29

Gravely 047649

Cable, Solenoid to Starter
(Superseded to 03492500)

Note: (Used Only On Model(s): 53100).

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 050384

Cable, Starter
(Superseded to 08840500)

Note: (Used Only On Model(s): 53271).

$

$

Not available

29

Gravely 035141

Cable, Solenoid to Starter
(Superseded to 08805700)

Note: (Used Only On Model(s): 53272).

$

$

Not available

30

Gravely 033847

Boot, Battery Cable
(Superseded to 03384700)

$

$

Not available

31

Gravely 010413

Nut, Wing 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

32

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 021425

Wire, Instrument Panel
(Superseded to 08801600)

$

$

Not available

34

Gravely 043435

Module, Interlock
(Superseded to 58801000)

Note: (Used Only On Model(s): 53272).

$162.99

$

Usually ships in 4-12 days

0

34

Gravely 041881

Module, Interlock
(Superseded to 58800800)

Note: (Used Only On Model(s): 53100).

$

$

Not available

34

Gravely 041881

Module, Interlock
(Superseded to 58800800)

Note: (Used Only On Model(s): 53271).

$

$

Not available

35

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

36

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

37

Gravely 051810

Bracket, Interlock Switch
(Superseded to 08846100)

$

$

Not available

38

Gravely 050417

Pad, Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

39

Gravely 050418

Pad, Battery
(Superseded to 08800600)

$

$

Not available

40

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

Note: (Used Only On Model(s): 53272).

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

Note: (Used Only On Model(s): 53100).

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

Note: (Used Only On Model(s): 53271).

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 107354

Nut, Stamped 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 051717

Bracket, Interlock Switch
(Superseded to 08846000)

$

$

Not available

43

Gravely 020916

Switch, Interlock
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

44

Gravely 126922

Bolt, 1/4-20x7.00 Rd Hd Sq Nk
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

45

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

Note: (Used Only On Model(s): 53272).

$0.99

$

In Stock, Qty 20+

0

46

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

Note: (Used Only On Model(s): 53272).

$1.49

$

In Stock, Qty 20+

0

47

Gravely 041358

Battery, 12 Volt
(Superseded to 78801800)

$

$

Not available

48

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

49

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

Gravely 052071

Decal, Hydro-Pro
(Superseded to 05215800)

$

$

Not available
