532121 - Ariens Friction Drive Performance Kit Friction Drive Performance Kit 53212100 Parts Diagram

Friction Drive Performance Kit

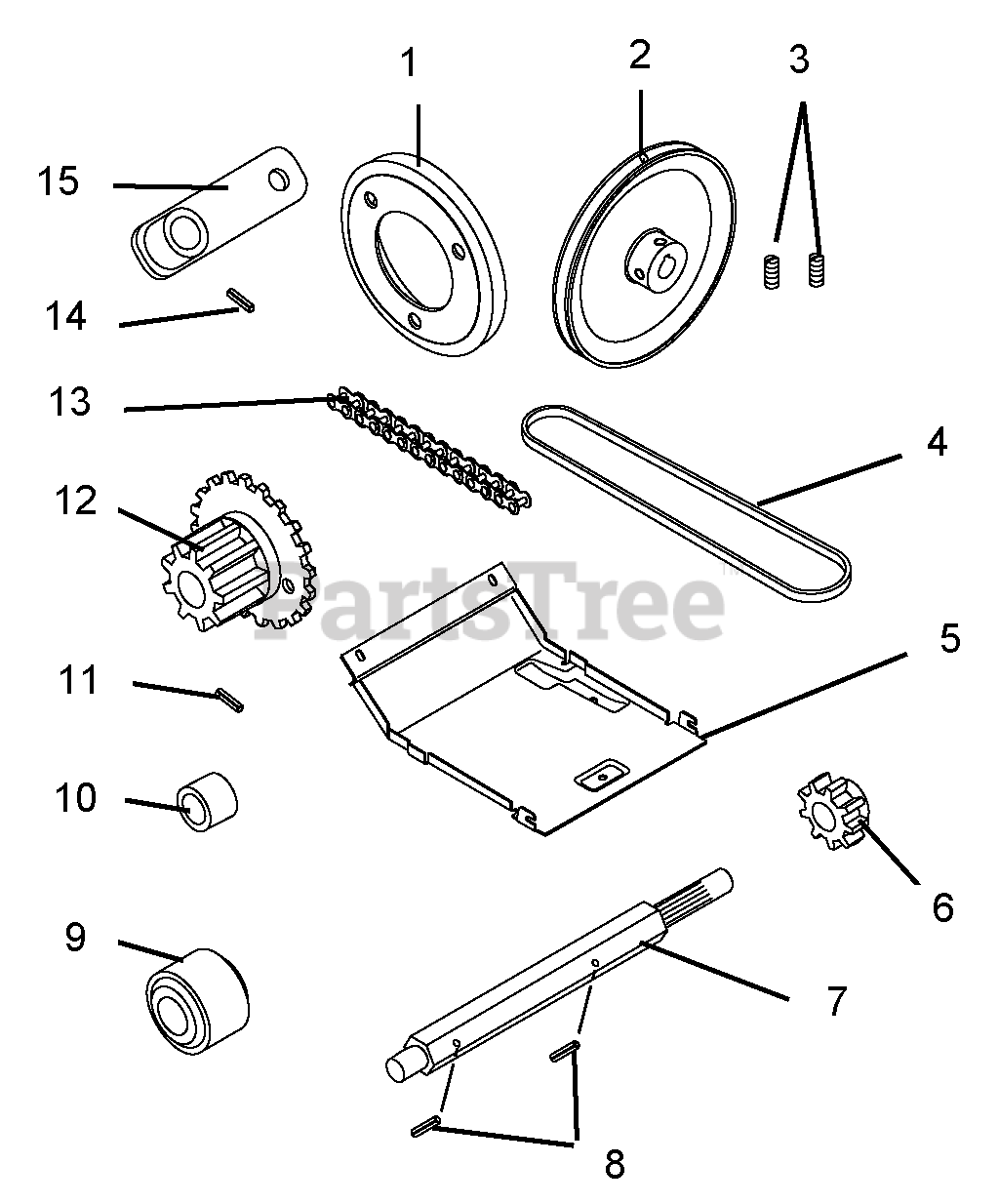

Friction Drive Performance Kit 53212100 Parts Diagram

  • Title

1

Ariens 03248300

DISC, FRICTION - 730 MAT'L

$39.99

$

In Stock, Qty 20+

0

2

Ariens 00164600

PULLEY, W/HUB, 3L, 6.5" DIA

$

$

Not available

3

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

4

Ariens 07228600

V-BELT, 3L-RAW EDGE

$29.99

$

In Stock, Qty 7

0

5

Ariens 03232459

COVER BOTTOM

$52.99

$

In Stock, Qty 6

0

6

Ariens 00385800

SPROCKET, PINION 7T W/SPLINE

$9.49

$

In Stock, Qty 9

0

7

Ariens 03248402

SHAFT, HEX-W/SPLINE

$

$

Not available

8

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 9

0

9

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

10

Ariens 03248403

SPACER, HEX SHAFT-SPROCKET

$

$

Not available

11

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

12

Ariens 63230300

ASSY,PINION & SPROCKET
(Superseded to 53211000)

$119.99

$

In Stock, only 2 left!

0

13

Ariens 03248600

CHAIN, ROLLER #41 X 27 P

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

15

Ariens 03248500

WMT,SPEED CHANGE ARM

$79.99

$

Usually ships in 4-12 days

0

Ariens 53212100

KIT,FRICTION DRIVE PERFORMANCE

$

$

Not available
