532 RBS - Husqvarna Brush Cutter (SN: 20111400001 - 20154700000) ENGINE Parts Diagram

Brush Cutter

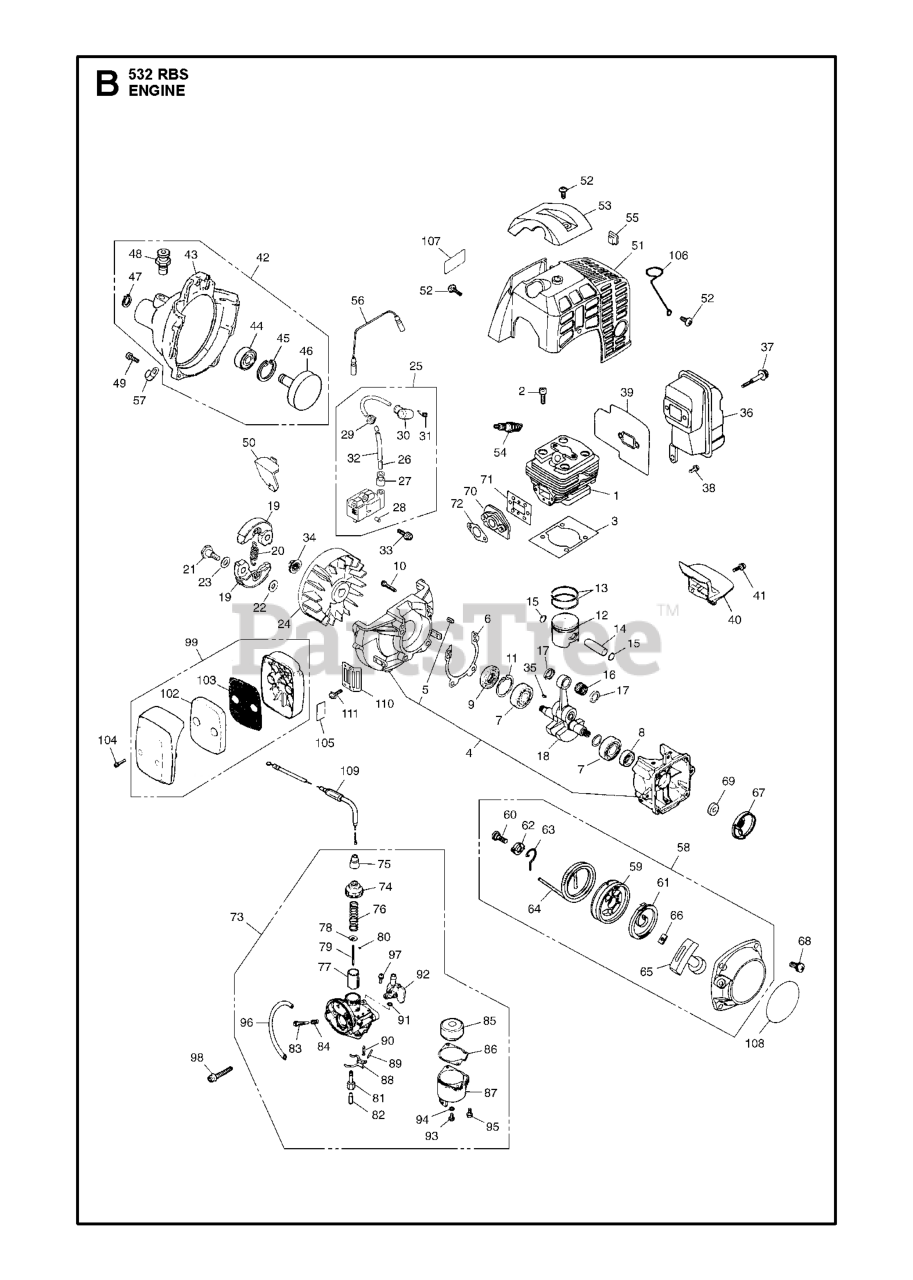

ENGINE Parts Diagram

  • Title

1

Husqvarna 512272201

CYLINDER

$56.99

$

Usually ships in 3-10 days

0

102

Husqvarna 513259301

ELEMENT

$4.99

$

Usually ships in 3-10 days

0

98

Husqvarna 510483201

SCREW

$

$

Not available

14

Husqvarna 510916601

PIN

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 513168301

NEEDS DESCRIPTION

$

$

Currently unavailable

97

Husqvarna 510464201

SCREW

$

$

Not available

4

Husqvarna 505296001

CRANKCASE

$

$

Not available

103

Husqvarna 513247701

SCREEN

$2.49

$

Usually ships in 3-10 days

0

64

Husqvarna 505302801

NEEDS DESCRIPTION

$

$

Not available

18

Husqvarna 505297501

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 513165201

NEEDS DESCRIPTION

$

$

Currently unavailable

56

Husqvarna 521743601

CORD

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 505300601

SCREW

$3.99

$

In Stock, Qty 14

0

69

Husqvarna 505304601

COLLAR

$

$

Not available

11

Husqvarna 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 505301101

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 506609401

BOLT

$3.49

$

In Stock, only 4 left!

0

40

Husqvarna 505299701

PLATE.MUFFLER

$

$

Not available

34

Husqvarna 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 512527001

STOPPER

$14.99

$

In Stock, only 1 left!

0

87

Husqvarna 513245801

CHAMBER

$

$

Not available

51

Husqvarna 577328101

NEEDS DESCRIPTION

$

$

Currently unavailable

89

Husqvarna 513246101

PIN

$

$

Not available

21

Husqvarna 505297801

SCREW

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 515369801

INSULATOR

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 513371601

SPRING

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 521742901

VALVE, THROTTLE

$36.99

$

Usually ships in 3-10 days

0

72

Husqvarna 515369701

GASKET

$

$

Not available

43

Husqvarna 525919701

NEEDS DESCRIPTION

$

$

Currently unavailable

62

Husqvarna 504114601

COLLAR

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 505298101

WASHER

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505296701

SEAL

$7.99

$

In Stock, only 2 left!

0

12

Husqvarna 515375101

PISTON

$40.99

$

Usually ships in 3-10 days

0

109

Husqvarna 510939301

NEEDS DESCRIPTION

$

$

Currently unavailable

76

Husqvarna 513165101

NEEDS DESCRIPTION

$

$

Currently unavailable

95

Husqvarna 510464101

NEEDS DESCRIPTION

$

$

Currently unavailable

38

Husqvarna 505299501

BOLT

$4.99

$

In Stock, only 1 left!

0

88

Husqvarna 513246001

HINGE

$10.99

$

Usually ships in 3-10 days

0

75

Husqvarna 513192101

CAP

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521743401

ROTOR

$60.99

$

Usually ships in 3-10 days

0

50

Husqvarna 505300401

PLATE

$

$

Not available

25

Husqvarna 512274001

COIL-A

$109.99

$

Usually ships in 3-10 days

0

104

Husqvarna 515370801

SCREW

$1.49

$

Usually ships in 3-10 days

0

16

Husqvarna 505297301

ROLLER BEARING

$9.99

$

In Stock, Qty 5

0

37

Husqvarna 516071501

BOLT, M5 x 60

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 513412501

BOLT

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 529269801

BEARING

$12.99

$

In Stock, only 2 left!

0

39

Husqvarna 526522801

GASKET

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 504114001

KNOB

$

$

Not available

13

Husqvarna 510917701

PISTON RING

$5.99

$

Usually ships in 3-10 days

0

86

Husqvarna 513245901

PACKING

$

$

Not available

73

Husqvarna 512272601

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 505298401

CORD.HIGH

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 521749501

TUBE (RPLS 263072210)

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 577328301

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 504121501

SEAL

$9.99

$

In Stock, Qty 12

0

90

Husqvarna 513370501

VALVE.NEEDLE

$

$

Not available

107

Husqvarna 577328801

NEEDS DESCRIPTION

$

$

Currently unavailable

60

Husqvarna 515367101

SCREW

$4.99

$

In Stock, only 2 left!

0

68

Husqvarna 505304401

SCREW

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 515415201

SPRING

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 505298001

WASHER

$3.99

$

In Stock, Qty 8

0

15

Husqvarna 516283001

RING

$4.99

$

In Stock, only 1 left!

0

81

Husqvarna 513245601

JET

$24.99

$

Usually ships in 3-10 days

0

111

Husqvarna 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

92

Husqvarna 513251701

COCK

$26.99

$

Usually ships in 3-10 days

0

67

Husqvarna 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

65

Husqvarna 505303401

KNOB

$7.99

$

In Stock, only 1 left!

0

45

Husqvarna 506609901

RING

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 513242301

SHOE

$17.99

$

In Stock, only 2 left!

0

93

Husqvarna 513233201

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 597610701

NEEDS DESCRIPTION

$

$

Currently unavailable

55

Husqvarna 505301301

GROMMET

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 515415301

GROMMET
(Superseded to 521358801)

$1.49

$

Usually ships in 3-10 days

0

42

Husqvarna 521743301

NEEDS DESCRIPTION

$

$

Currently unavailable

61

Husqvarna 504115001

SPRING, SPIRAL

$11.99

$

In Stock, Qty 19

0

33

Husqvarna 514233801

NEEDS DESCRIPTION

$

$

Not available

91

Husqvarna 513246601

RING

$

$

Not available

59

Husqvarna 504114701

REEL

$18.99

$

In Stock, Qty 20+

0

17

Husqvarna 513752401

WASHER

$6.99

$

In Stock, only 2 left!

0

28

Husqvarna 521743701

PIN

$2.49

$

Usually ships in 3-10 days

0

85

Husqvarna 513232201

FLOAT

$

$

Not available

47

Husqvarna 516124101

RING

$4.99

$

In Stock, only 3 left!

0

74

Husqvarna 513369801

CAP

$12.99

$

Usually ships in 3-10 days

0

49

Husqvarna 505300201

NEEDS DESCRIPTION

$

$

Not available

96

Husqvarna 513370701

NEEDS DESCRIPTION

$

$

Currently unavailable

63

Husqvarna 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

58

Husqvarna 515366901

RECOIL ASSY

$66.99

$

Usually ships in 3-10 days

0

84

Husqvarna 513370401

SPRING

$

$

Not available

5

Husqvarna 505296101

PIN

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 521619201

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 576203801

NEEDS DESCRIPTION

$

$

Currently unavailable

105

Husqvarna 513185301

LABEL

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 515448601

SPARKPLUG.RCJ6Y
(Superseded to 530030179)

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 505298801

CAP

$7.49

$

In Stock, Qty 5

0

83

Husqvarna 513682901

SCREW.ADJUST

$4.99

$

Usually ships in 3-10 days

0

71

Husqvarna 505304901

GASKET

$4.99

$

Usually ships in 3-10 days

0

106

Husqvarna 513494601

NEEDS DESCRIPTION

$

$

Currently unavailable

78

Husqvarna 513165301

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

82

Husqvarna 521743101

JET MAIN

$

$

Not available

110

Husqvarna 505296201

GUARD

$

$

Not available

3

Husqvarna 510064301

GASKET

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 577328901

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 505296401

GASKET

$3.99

$

Usually ships in 3-10 days

0

79

Husqvarna 521743001

NEEDLE

$15.99

$

Usually ships in 3-10 days

0

35

Husqvarna 506689401

KEY

$4.99

$

Usually ships in 3-10 days

0
