531262201 - Husqvarna Engine (2022-01) CRANKCASE COVER Parts Diagram

Engine

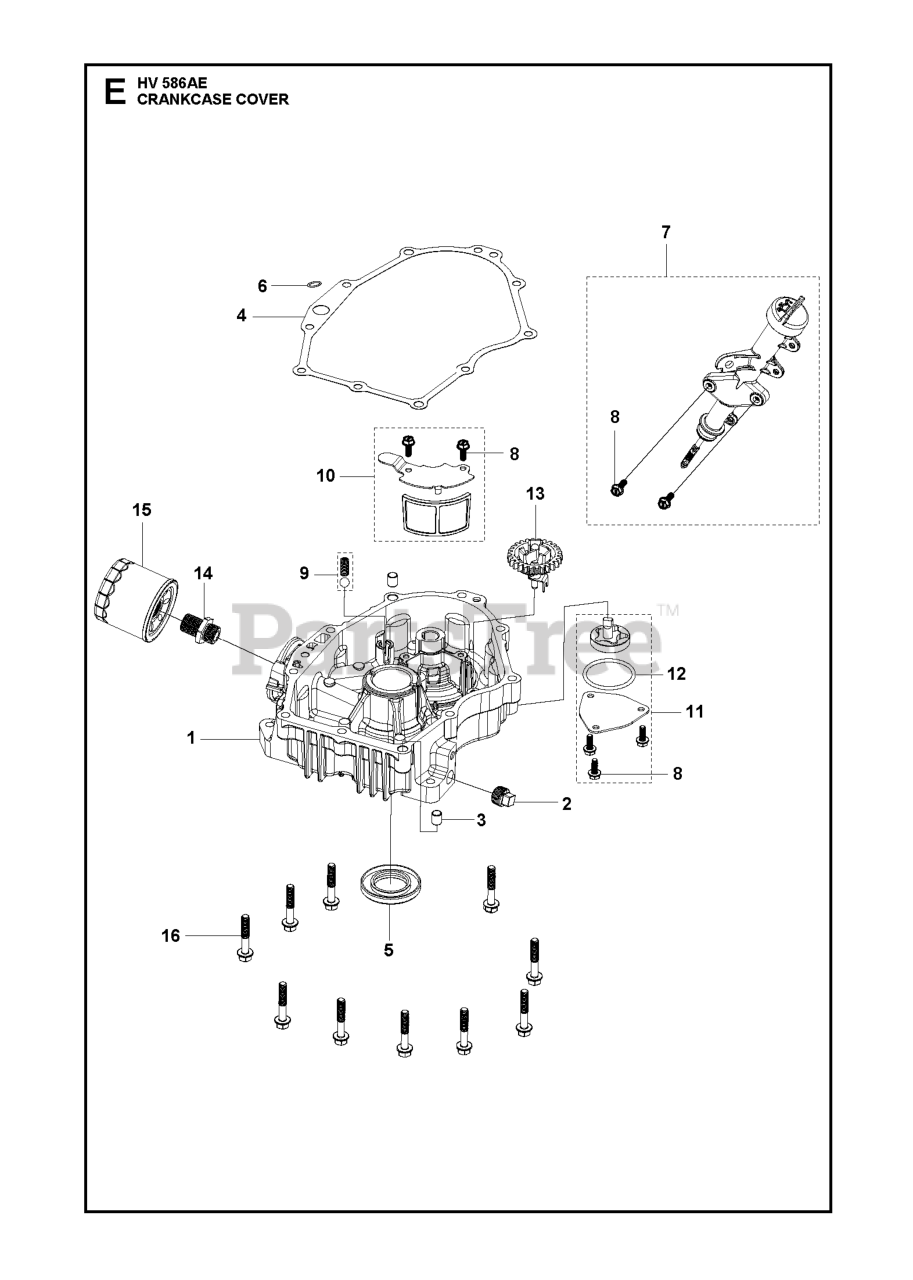

CRANKCASE COVER Parts Diagram

  • Title

7

Husqvarna 531147137

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 531147138

NEEDS DESCRIPTION

Note: COMPRESSION SPRING AND BALL

$

$

Currently unavailable

12

Husqvarna 599596101

NEEDS DESCRIPTION

Note: SEAL RING

$

$

Currently unavailable

5

Husqvarna 598607801

NEEDS DESCRIPTION

Note: OIL SEAL

$

$

Currently unavailable

16

Husqvarna 531147142

NEEDS DESCRIPTION

Note: GB/T 5789:M8 L=45

$

$

Currently unavailable

15

Husqvarna 591165901

FILTER OIL FILTER (ENG.452)

$18.99

$

Usually ships in 3-10 days

0

1

Husqvarna 531147135

NEEDS DESCRIPTION

Note: CRANKCASE COVER

$

$

Currently unavailable

13

Husqvarna 531147141

NEEDS DESCRIPTION

Note: GOVERNOR GEAR

$

$

Currently unavailable

6

Husqvarna 599595601

SEALING RING SEAL RING

Note: SEAL RING

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 531147136

NEEDS DESCRIPTION

Note: CRANKCASE COVER GASKET

$

$

Currently unavailable

8

Husqvarna 531147125

NEEDS DESCRIPTION

Note: GB/T 5789: M6 L=16

$

$

Currently unavailable

10

Husqvarna 531147139

NEEDS DESCRIPTION

Note: OIL STRAINER

$

$

Currently unavailable

3

Husqvarna 598607701

PIN LOCATION PIN

Note: LOCATION PIN

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 598600101

OIL PLUG OIL PLUG

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 598607601

OIL PLUG OIL FILTER MOUNTING P

Note: OIL FILTER MOUNTING PLUG

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 531147140

NEEDS DESCRIPTION

$

$

Currently unavailable
