5311 - Troy-Bilt Junior III Rear-Tine Tiller (SN: M0067999 - M0075089) TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

Junior III Rear-Tine Tiller

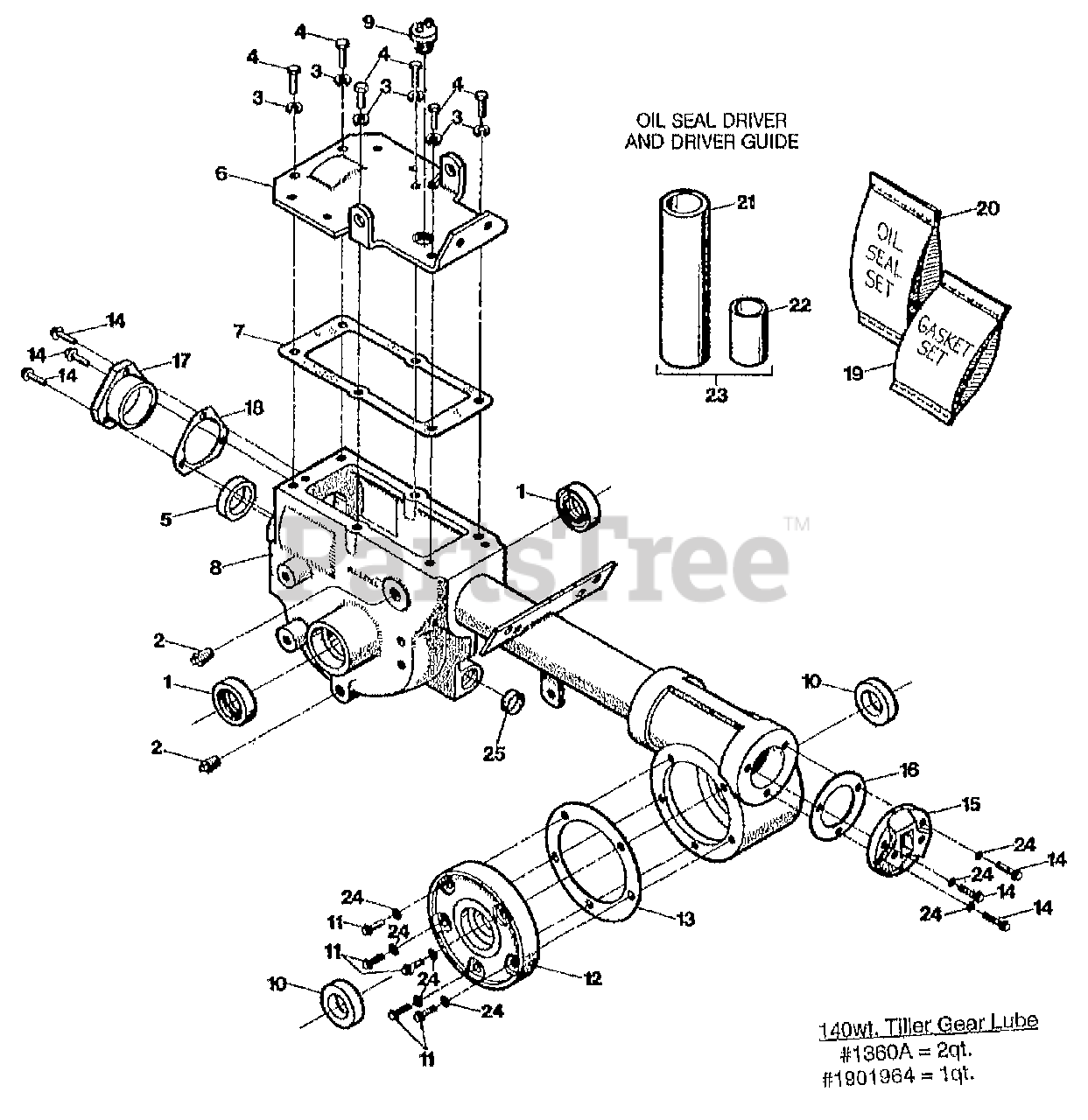

TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

  • Title

1

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT (Double lip, wheel shaft, RT & LT sides.)
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT (Oillevel hole and gear oil drain hole.)
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 9912

WASHER-LK .312 ZP (Transmission top cover)

$

$

Currently unavailable

4

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP (Transmission top cover)

$

$

Currently unavailable

5

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00 (Input pinion shaft, front of transmission)

$

$

Currently unavailable

6

Troy-Bilt 20692

COVER-TRANS (Top of Transmission)

$

$

Currently unavailable

7

Troy-Bilt 20694

GASKET-TRANS COVER
(Superseded to GW-20694P)

$5.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 20778

HSG-TRANS P5 A UNIT (Inc. #9429 rear bearing race)

$

$

Currently unavailable

9

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10 (For gear oil fill hole on transmission cover.)
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

10

MTD 9623

SEAL-TILLER SHAFT (LT & RT sides.)
(Superseded to 690-900-0049)

$

$

Not available

11

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

12

Troy-Bilt 10812

COVER-RTH W/SCRS & RACE

$

$

Currently unavailable

13

Troy-Bilt 1129-1

GASKET-TILLER COVER (Fits all covers)
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

14

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875

$

$

Currently unavailable

15

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

16

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

17

Troy-Bilt 20695

COVER-FRONT BEARING

$

$

Currently unavailable

18

Troy-Bilt 20693-2

GASKET-FRONT COVER-.010

$

$

Currently unavailable

19

Troy-Bilt 10358

GASKET SET-P4 (Inc. 1 #7, 1 #18, 2 # 13, 1 1129-2 .030", 2 #16)

$

$

Currently unavailable

20

Troy-Bilt 10813

OIL SEAL SET-PONY V (Inc. 2 #1, 2 #10, 1 #50)

$

$

Currently unavailable

21

Troy-Bilt 4921-1

DRIVER-PLASTIC (For wheel shaft & tiller shaft oil seals.)

$

$

Currently unavailable

22

Troy-Bilt 4921-2

SEAL-DRIVER PILOT (To install wheel shaft & tiller shaft oil seals.)

$

$

Currently unavailable

23

Troy-Bilt 4921

KIT-DRIVER (Inc. 21 & 22)

$2.99

$

In Stock, only 2 left!

0

24

0

WASHER - Nylon, not reusable

Note: If bolts w/ these washers are removed, discard washers and apply non- hardening gasket sealant to bolt threads & replace bolts securely.

$

$

Not available

Troy-Bilt 10148

OBS-KIT NYLON WASHER (Inc. eight #24)

$

$

Currently unavailable

25

Troy-Bilt 9096

PLUG-BORE (For bore hole directly beneath the front of the transmission tube.)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964) 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
