5311 - Troy-Bilt Junior III Rear-Tine Tiller (SN: M0067999 - M0075089) HANDLE BARS, SHIFT & THROTTLE Parts Diagram

Junior III Rear-Tine Tiller

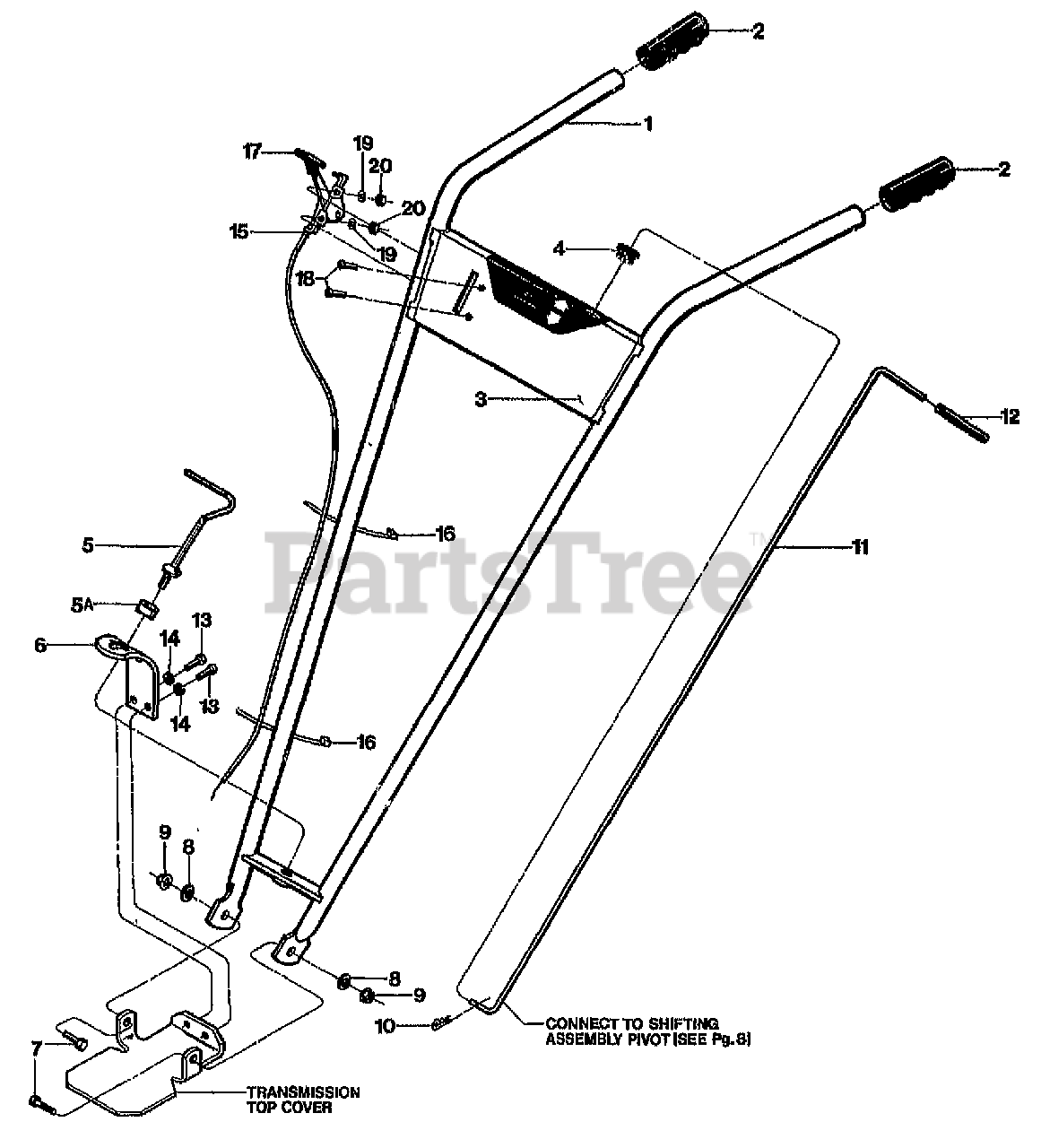

HANDLE BARS, SHIFT & THROTTLE Parts Diagram

  • Title

1

Troy-Bilt 50233

ASSM-HANDLEBAR (Inc. 2-5A)

$

$

Currently unavailable

2

Troy-Bilt 9117

GRIP-HANDLEBAR

$

$

Currently unavailable

3

Troy-Bilt 50235

DECAL-CONTROL PANEL

$

$

Currently unavailable

4

Troy-Bilt 9211

GROMMET-PLASTIC (Part of Operator Control Panel)

$

$

Currently unavailable

5

MTD 20703

ASSM-STUD H/B (Regulates handlebar height adj.)

$

$

Not available

5A

Troy-Bilt 9955

WASHER-1.0X.38X.375 (Keyed, used w/ #5)
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 20753

PLATE-HANDLEBAR ADJUST

$

$

Currently unavailable

7

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

8

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE (Handlebar adj.)
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP (Handlebar adj.)
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 20786

ASSM-DR CONTROL ROD

$

$

Currently unavailable

12

Troy-Bilt 9198

GRIP-CONTROL ROD (Forward/Neutral/Reverse Lever)

$

$

Currently unavailable

13

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5 ZP

$

$

Currently unavailable

14

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

15

Troy-Bilt 9094

CABLE-THROTTLE

$

$

Currently unavailable

16

Troy-Bilt 9202

TIE-RED (To secure throttle controls cable to handlebars.)
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

19

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

20

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable
