53084 (GT 18 H) - Lawn-Boy Garden Tractor (SN: 900000001 - 999999999) (1989) Body Parts List Parts Diagram

Garden Tractor

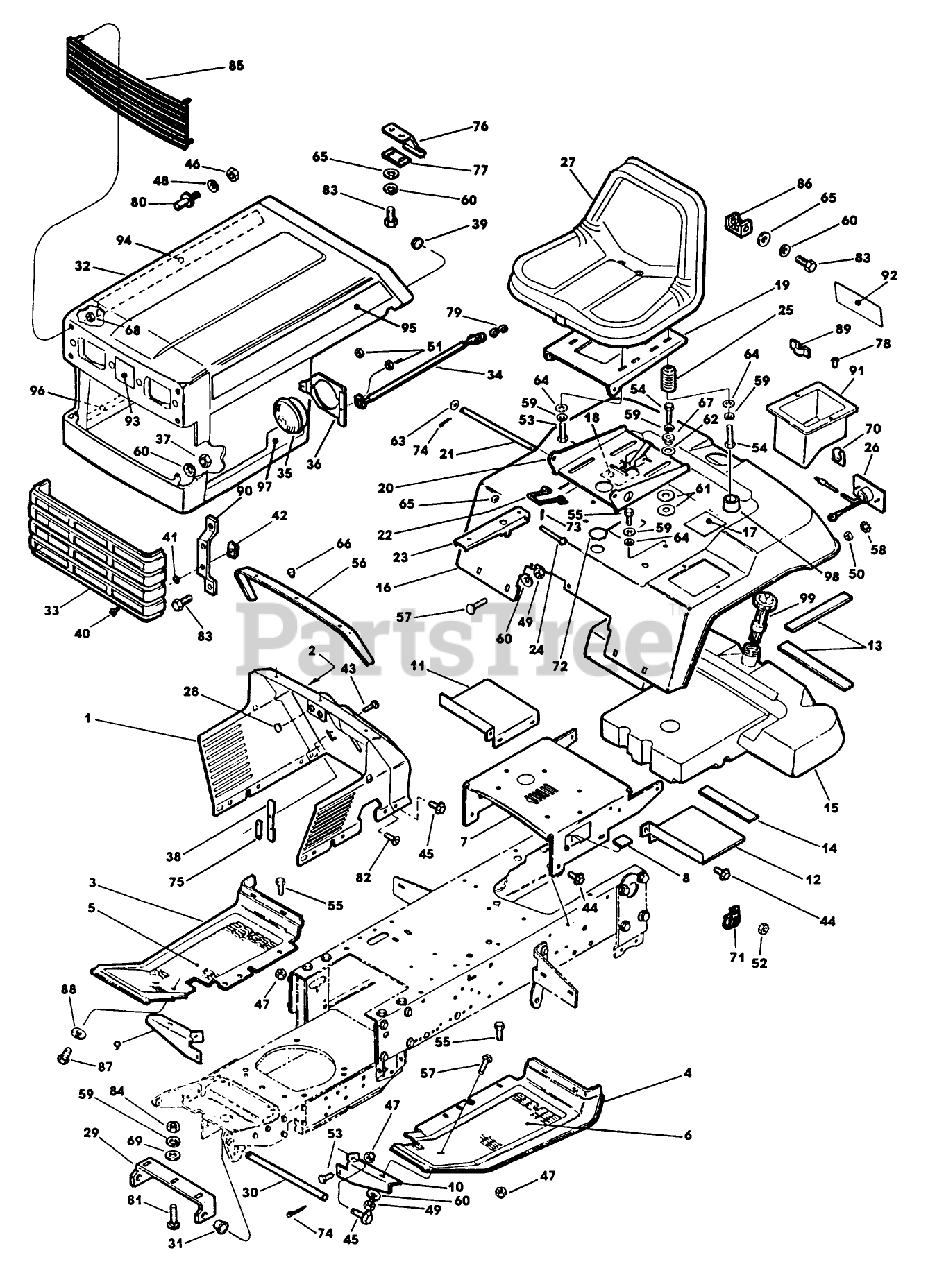

Body Parts List Parts Diagram

  • Title

1

Lawn-Boy 741146

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 701292

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 701292

DISCONTINUED

Note: Parts shown with bullet

$

$

Not available

2

Lawn-Boy 701292

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals, Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 740687

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 702154

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 701555

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 702144

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 740361

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 701481

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 700948

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 700949

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 701484

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 701485

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 700500

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 701499

PAD - FUEL TANK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 701498

TANK - FUEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$570.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 741145

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 700953

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 700953

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals, Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 700953

DISCONTINUED

Note: Parts shown with bullet

$

$

Not available

18

Lawn-Boy 701519

DISCONTINUED

Note: Parts shown with bullet

$

$

Not available

18

Lawn-Boy 701519

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals, Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 701519

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 740276

PIVOT AY - SEAT *B

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$159.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 740257

SEAT SUPPORT AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 700756

PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 701537

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 701539

LATCH - SEAT PAN *B

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 701538

PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 701179

See Supercession: 88-6220
(Superseded to 88-6220)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$28.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 740719

TAILLIGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 740399

SEAT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$585.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 700757

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 702304

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 702148

ROD - HOOD PIVOT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 700776

BEARING-NYLINER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 740780

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 701349

INSERT - GRILLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$185.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 740778

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 740186

See Supercession: 102881
(Superseded to 102881)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 701307

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 146254

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 701332

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 700785

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 701340

FASTENER-1/4 TURN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 700787

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 700789

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 700804

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 700990

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 700989

See Supercession: 9266964
(Superseded to 9266964)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 702246

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 146501

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

48

Lawn-Boy 702248

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 146254

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 702291

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 147158

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 700828

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 700342

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 146299

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 701350

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 700748

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 147119

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

60

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

61

Lawn-Boy 700745

WASHER-PLASTIC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 700750

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 146304

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

64

Lawn-Boy 146205

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 700324

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 700746

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 700758

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 700751

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 146368

See Supercession: 3256-23
(Superseded to 3256-23)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 702367

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 702156

CLAMP - J EX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 701298

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 700833

See Supercession: 3272-1
(Superseded to 3272-1)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 16

0

74

Lawn-Boy 146379

See Supercession: 3272-6
(Superseded to 3272-6)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

75

Lawn-Boy 700795

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

76

Lawn-Boy 700763

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

77

Lawn-Boy 700762

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 701494

Rivet

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

79

Lawn-Boy 701266

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

80

Lawn-Boy 702247

PIN - CATCH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$60.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 146511

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 702147

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 700822

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 10

0

84

Lawn-Boy 146259

NUT SS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

85

Lawn-Boy 701346

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

86

Lawn-Boy 701180

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

87

Lawn-Boy 702149

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 146260

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

89

Lawn-Boy 702290

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

90

Lawn-Boy 701342

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

91

Lawn-Boy 701496

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

92

Lawn-Boy 702463

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

93

Lawn-Boy 701341

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

94

Lawn-Boy 701347

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

95

Lawn-Boy 701348

DECAL - HOOD LH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

96

Lawn-Boy 702305

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

97

Lawn-Boy 702306

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

98

Lawn-Boy 701178

CAP-PROTECTOR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 3 left!

0

99

Lawn-Boy 740378

GUAGE ASSEMBLY-FUE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$169.99

$

Usually ships in 3-6 days

0
