53080 - Toro Lawn Vacuum, 9 cu. ft. (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

Lawn Vacuum, 9 cu. ft.

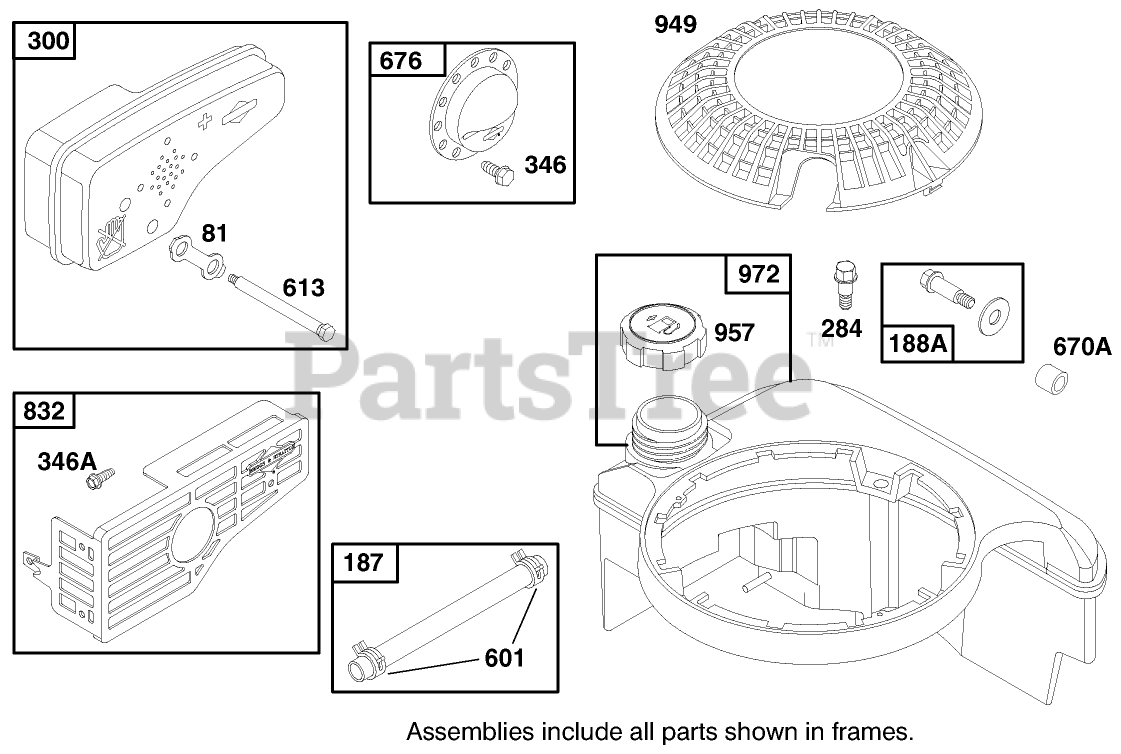

ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

  • Title

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 6

0

187

Briggs & Stratton 492790

Hose-Fuel
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 398540

Screw-Shoulder
(Superseded to 692311)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 14

0

300

Briggs & Stratton 496106

Muffler
(Superseded to 692038)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

346A

Briggs & Stratton 94602

Screw-Hex.
(Superseded to 690664)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0

670A

Briggs & Stratton 280512

Spacer-FueITank
(Superseded to 692294)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 396548

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 494224

Guard-Muffler

Note: Obtain parts from www.briggsandstratton.com

$40.99

$

In Stock, only 1 left!

0

949

Briggs & Stratton 281136

Guard-Finger
(Superseded to 691919)

Note: Obtain parts from www.briggsandstratton.com

$28.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap-Fuel
(Superseded to 796577)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 497227

Tank Assembly-Fuel
(Superseded to 699392)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
