53080 - Toro Lawn Vacuum, 9 cu. ft. (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

Lawn Vacuum, 9 cu. ft.

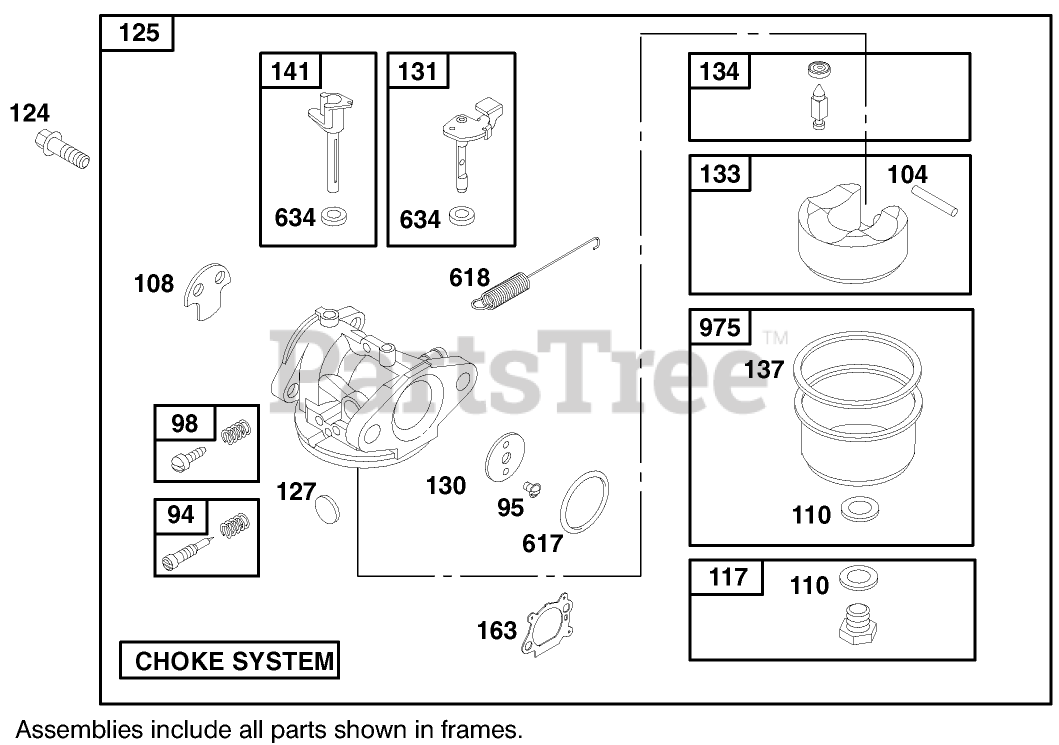

ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

  • Title

94

Briggs & Stratton 493765

Valve-Needle

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 493765

Valve-Needle

Note: Included in Carburetor Kit-Part No. 498260.

$14.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 398185

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 498260.

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 223471

Valve-Choke
(Superseded to 691182)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

110

Gasket-Sealing (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

110

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

110

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

117

Briggs & Stratton 498977

Jet-Main (Standard) Note: 498981 Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

124

Briggs & Stratton 94525

Screw-Hex
(Superseded to 691688)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

125

Briggs & Stratton 498965

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

130

Briggs & Stratton 223470

Valve-Throttle
(Superseded to 691181)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Shaft and Lever

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 498260.

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

141

Briggs & Stratton 494218

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262749

Spring-Choke
(Superseded to 690354)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

634

Washer-Shaft (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
