53080 - Toro Lawn Vacuum, 9 cu. ft. (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

Lawn Vacuum, 9 cu. ft.

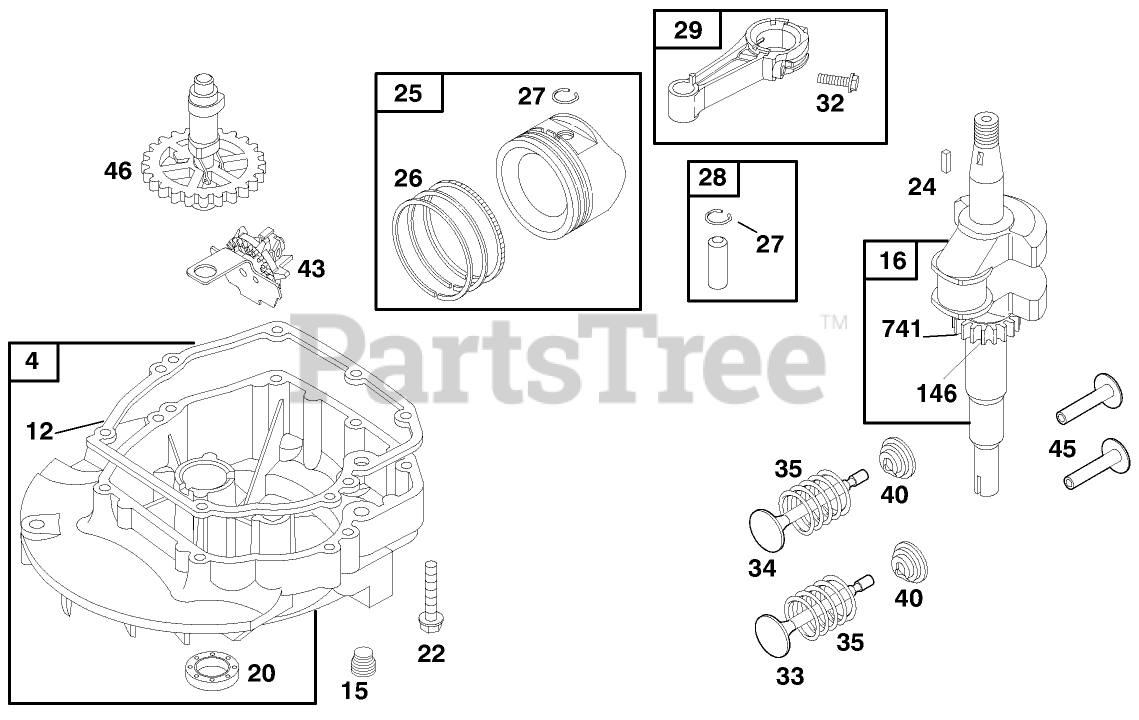

ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

  • Title

4

Briggs & Stratton 493279

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-Part No. 497316.

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94720

Plug-Pipe
(Superseded to 691680)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 498565

Crankshaft
(Superseded to 797018)

Note: Obtain parts from www.briggsandstratton.com

$179.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part No. 497316.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw-Hex. Head
(Superseded to 691092)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499429

Piston ASM. (Standard)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 499425

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

27

Briggs & Stratton 263190

Lock-Piston Pin
(Superseded to 691866)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

Screw-Hex
(Superseded to 691664)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

Spring-Value
(Superseded to 691270)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 493737

Oil Slinger
(Superseded to 691997)

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262204

Tappet-Valve
(Superseded to 690548)

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 498275

Camshaft
(Superseded to 691449)

Note: Obtain parts from www.briggsandstratton.com

$73.99

$

In Stock, only 1 left!

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0
