53080 - Toro Lawn Vacuum, 9 cu. ft. (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

Lawn Vacuum, 9 cu. ft.

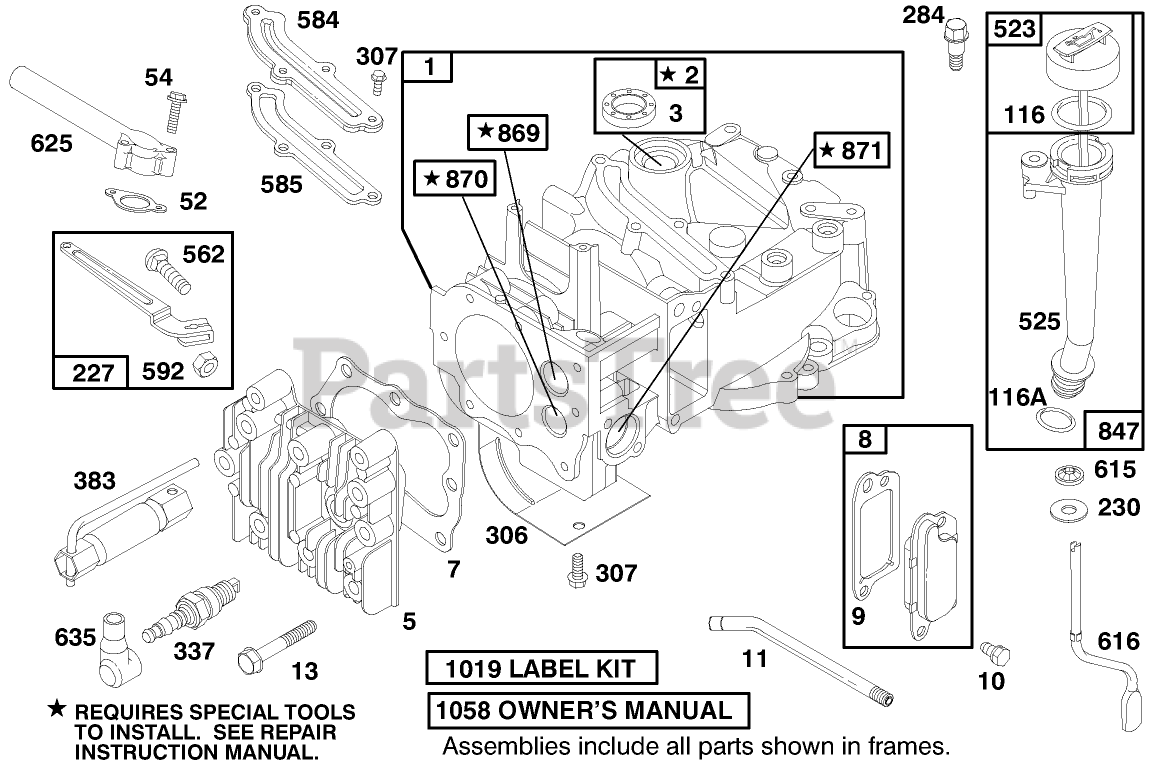

ENGINE BRIGGS & STRATTON MODEL 12F702-1741-A1 Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder
(Superseded to 592645)

Note: Obtain parts from www.briggsandstratton.com

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 17

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 214626

Head-Cylinder
(Superseded to 594989)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Gasket Set-Part No. 497316.

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

Breather ASM
(Superseded to 590395)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94650

Screw-Hex.

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231933

Breather Tube
(Superseded to 691781)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94547

Screw-Hex.
(Superseded to 690912)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Gasket Set-Part No. 497316.

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

Screw-Hex
(Superseded to 691650)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

116

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0

116A

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 497316.

$4.99

$

In Stock, Qty 7

0

227

Briggs & Stratton 492349

Lever Ass-y. Gov.
(Superseded to 690783)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 14

0

306

Briggs & Stratton 224324

Shield-Cylinder
(Superseded to 690450)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw-Sem
(Superseded to 690345)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 4 left!

0

525

Briggs & Stratton 495265

Tube-Dipstick

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

562

Briggs & Stratton 94852

Screw (Governor Control Lever)
(Superseded to 691119)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

584

Briggs & Stratton 224328

Cover-Breather
(Superseded to 697734)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-Part No. 497316.

$6.99

$

In Stock, only 1 left!

0

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 263175

Crank-Governor
(Superseded to 698801)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 11

0

847

Briggs & Stratton 495263

Tube-Oil Filler
(Superseded to 692047)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

869

Briggs & Stratton 213512

Seat-IntakeValve
(Superseded to 691155)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 213513

Exhaust Valve Seat
(Superseded to 690380)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 494256

Label Kit

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

1058

Toro 273125

Owner-s Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
