53080 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) GEAR SHIFT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

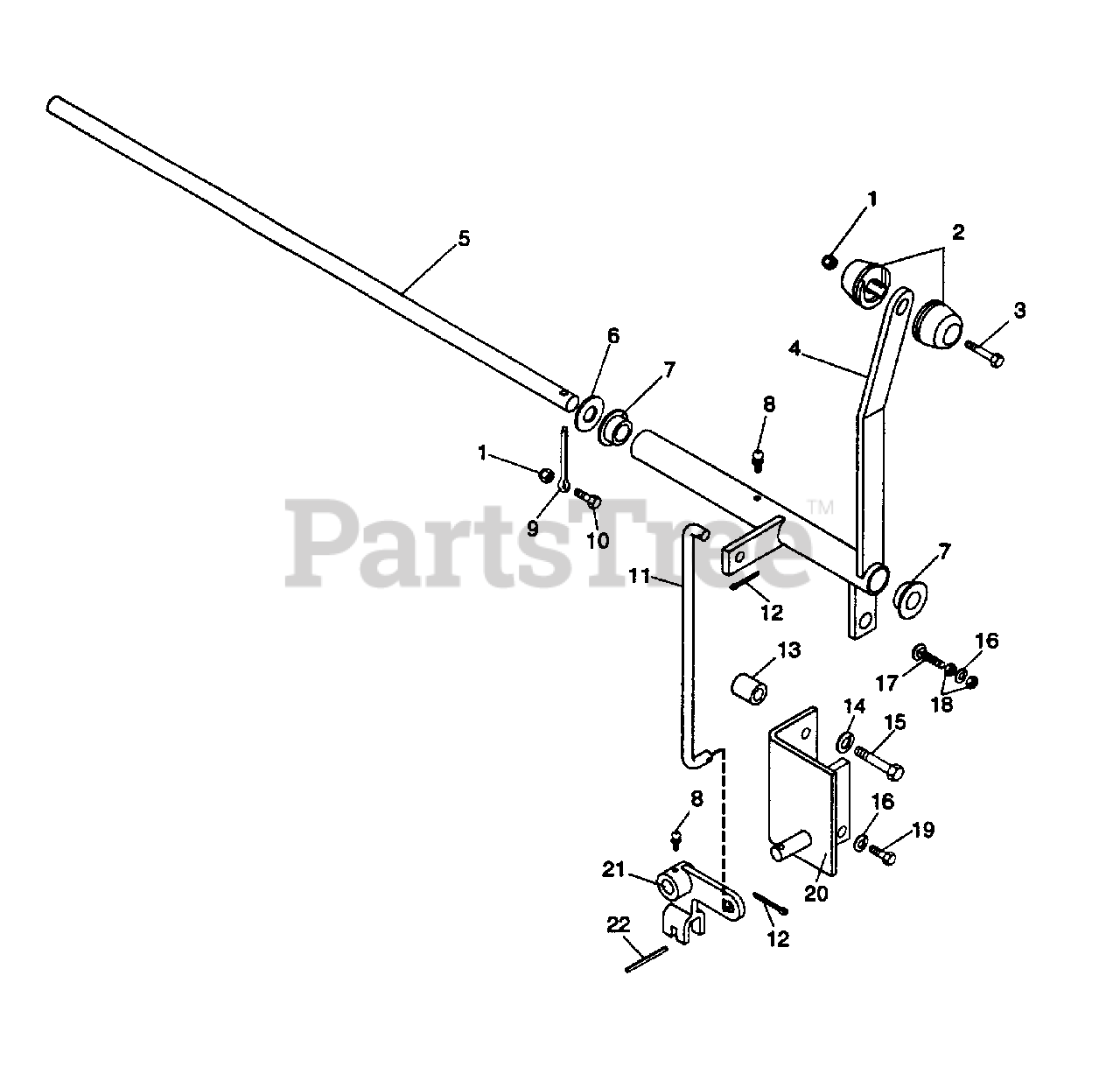

GEAR SHIFT Parts Diagram

  • Title

1

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 07527100

KNOB, CONTROL

$

$

Not available

3

Gravely 05905000

BLT-HEX .25-20 X 1.50 PL GR 5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 08963000

CNTRL, HI-LO

$

$

Not available

5

Gravely 08963100

SHFT, CONTROL

$

$

Not available

6

Gravely 06429500

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05521100

BUSH., F .515 X 1.00 X .745 NY

$2.49

$

In Stock, only 3 left!

0

8

Gravely 07012600

FTG, LUBE; .25-28 SELF-THREAD
(Superseded to 07001806)

$

$

Not available

9

Gravely 06705000

PIN-COTR .250 X 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 05934000

BLT-HEX .25-20 X .875

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 09029400

ROD, HI-LO

$

$

Not available

12

Gravely 06700100

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

13

Gravely 05525700

BSHG-SLV .407 X .625 X .750 PL

$7.49

$

In Stock, only 1 left!

0

14

Gravely 06303600

WSHR-LOCK .313 X .078 PL
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05917000

BLT-HEX .31-18 X 2.00 PL GR 5
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06304900

WSHR-LOCK .250 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06114200

SCR-MCH .25-20 X 1.25 HSHD

$

$

Not available

18

Gravely 06523000

NUT-HEX .250-20 ZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

19

Gravely 05908200

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 08952400

WLDMT, HI-LO BRACKET

$

$

Not available

21

Gravely 08952300

LEVER, HI-LO

$

$

Not available

22

Gravely 05908400

PIN, SPRING .250 X 1.000

$

$

Not available
